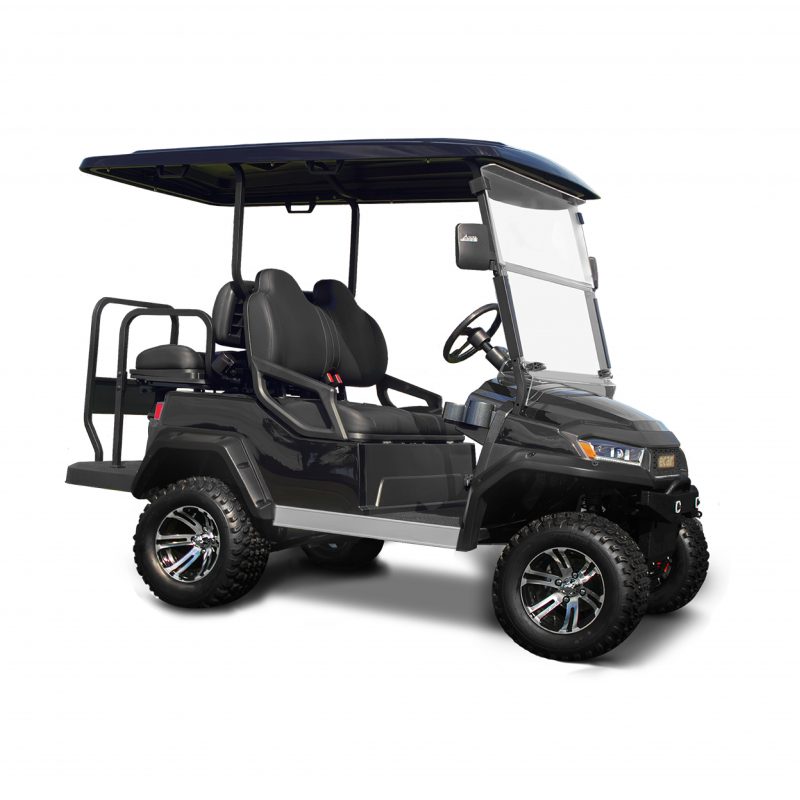

ECAR Compass 2+2G 4 Seat Lifted Golf Cart

From $18,990.00

The ECAR Compass 2+2G 4 Seat Lifted Golf Cart Lift Kit combines comfort and functionality with its 3-way fold-out golfer’s seat, 23-inch off-road tyres, and lifted suspension. With 2 forward-facing and 2 rear-facing seats, it’s the ideal cart for golfers and off-road adventurers alike.

Persons
Battery System
Motor
48V AC Brushless High Torque 5kW Motor
Controller
48V/450A ECAR APEX AC Controller
Colours
Length (mm): 2880
Width (mm): 1360
Height (mm):
Wheelbase overall length (center of front hub to center of rear hub): 1690mm

Wheelbase width between (center of tread to center of tread): Front 980mm, Rear 1060mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 5 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 2 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 2 x forward facing, 2 x backwards facing

Tare Weight – No Batteries (kgs): 499

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 35%

Hill Hold Performance (limit): 25% Grade

Minimum Ground Clearance: 160mm

Minimum Turning Radius: 3.80m

Rated Braking Distance: <6m

Avg. Energy Consumption per 100km: 7.5-8.5kW/hr based on terrain & programmed controller parameters
Proprietary Controller: ECAR APEX 450A Controller, Upgraded 48V 450A System

Electric Motor: LT AC Synchronous (Induction) 48V/4kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified and Manufacturer Approved ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V High 500W Output Infotainment: 2 speaker stereo sound system with AM/FM Tuner, Bluetooth, Phone Screen Mirroring and USB playback and Bluetooth Phone calls. On-screen cart diagnostics, speedometer and mileage meter, Lithium State of Charge Meter. Reversing: HD Reversing Camera that shows up on the Dash touchscreen when reverse gear is selected
Dashboard: 10.1inch Touchscreen Cart Dash and Infotainment System

Interior Seating: Black High-back Ergonomic Seats

Interior Floor: Diamond pattern high-density Poly

Rear-View Mirror: 1 x Internal, 2 x Illuminated Side Mirrors
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clear coat

Roof Body Panel: Automotive engineering PP material injection mould with increased stiffness

Front Windshield: Safety Folding Acrylic Windshield – Suited for golf course use

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, LED Indicators, LED Rear Tail Lights, LED Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Swing Arm with MacPherson Independent suspension on all four wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Integrated rear Transaxle. Ratio: 16:1 (4 Seat)

Wheels & Tyres: 12” ‘APEX’ Alloy Rims with 23×10.5-12 Off-road P334 Tyre
Standard Included Accessories: Seat Covers, Tow Bar (rated to 350kg Towing, 50kg vertical ball weight), 2-Way Rear Facing Seat that folds out to a cargo tray
Optional Extras: Grey/Beige Vinyl Seats; Marine Grade Rain Curtains; Tempered Glass Windshield with Wiper.
Length (mm): 2880
Width (mm): 1360
Height (mm):
Wheelbase overall length (center of front hub to center of rear hub): 1690mm

Wheelbase width between (center of tread to center of tread): Front 980mm, Rear 1060mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 5 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 2 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 2 x forward facing, 2 x backwards facing

Tare Weight – No Batteries (kgs): 499

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 35%

Hill Hold Performance (limit): 25% Grade

Minimum Ground Clearance: 160mm

Minimum Turning Radius: 3.80m

Rated Braking Distance: <6m

Avg. Energy Consumption per 100km: 7.5-8.5kW/hr based on terrain & programmed controller parameters
Proprietary Controller: ECAR APEX 450A Controller, Upgraded 48V 450A System

Electric Motor: LT AC Synchronous (Induction) 48V/4kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified and Manufacturer Approved ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V High 500W Output Infotainment: 2 speaker stereo sound system with AM/FM Tuner, Bluetooth, Phone Screen Mirroring and USB playback and Bluetooth Phone calls. On-screen cart diagnostics, speedometer and mileage meter, Lithium State of Charge Meter. Reversing: HD Reversing Camera that shows up on the Dash touchscreen when reverse gear is selected
Dashboard: 10.1inch Touchscreen Cart Dash and Infotainment System

Interior Seating: Black High-back Ergonomic Seats

Interior Floor: Diamond pattern high-density Poly

Rear-View Mirror: 1 x Internal, 2 x Illuminated Side Mirrors
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clear coat

Roof Body Panel: Automotive engineering PP material injection mould with increased stiffness

Front Windshield: Safety Folding Acrylic Windshield – Suited for golf course use

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, LED Indicators, LED Rear Tail Lights, LED Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Swing Arm with MacPherson Independent suspension on all four wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Integrated rear Transaxle. Ratio: 16:1 (4 Seat)

Wheels & Tyres: 12” ‘APEX’ Alloy Rims with 23×10.5-12 Off-road P334 Tyre
Standard Included Accessories: Seat Covers, Tow Bar (rated to 350kg Towing, 50kg vertical ball weight), 2-Way Rear Facing Seat that folds out to a cargo tray
Optional Extras: Grey/Beige Vinyl Seats; Marine Grade Rain Curtains; Tempered Glass Windshield with Wiper.

Description

Discover the ECAR Compass 2+2G 4 Seat Lifted Golf Cart – Built for adventurers, Designed for passenger transport and recreational activities

Introducing the ECAR Compass 2+2G Lift Kit, a versatile and rugged golf cart designed to meet the needs of both golfers and off-road adventurers. Equipped with two rear-facing seats and a fold-out 3-way golfer’s seat, this lifted cart offers unmatched flexibility and convenience on the course. Whether you’re transporting passengers or golf gear, the Compass 2+2G provides the perfect blend of comfort and functionality.

Key Features:

  • Fold-Out 3-Way Golfer’s Seat: The ECAR Compass 2+2G features a unique 3-way fold-out golfer’s seat, providing space for passengers or converting into a golf bag holder or flat cargo tray. This versatile design is ideal for those who need both seating and cargo capabilities on the course.
  • 23-Inch Off-road Tyres for Superior Traction: Equipped with large 23-inch off-road tyres on 12-inch Mag Wheels, this lifted cart handles rough terrains like dirt paths, gravel, and uneven grass with ease, ensuring a smooth ride.
  • Lifted Suspension for Enhanced Ground Clearance: The lifted suspension offers increased ground clearance, allowing the cart to navigate uneven surfaces, making it ideal for off-road adventures or golf courses.
  • Comfortable Passenger Seating: With 2 forward-facing seats and 2 rear-facing seats, the Compass 2+2G ensures a smooth and comfortable ride for all passengers. It’s perfect for carrying golfers and their gear or for family outings.
  • Rugged Design Meets Sleek Style: The Compass 2+2G pairs off-road ruggedness with modern aesthetics, making it both functional and visually appealing on the course or trail.

Colours:
Personalise your ECAR 4 seat lifted golf cart to fit your style. All standard colours are metallic paint finishes with matching painted roof.

  • Metallic Black
  • Metallic Gunmetal Grey
  • Metallic Silver
  • Metallic Burgundy
  • Metallic Forest Green
  • Metallic Navy Blue
  • Metallic Champagne
  • Metallic White



Standard Inclusions:

  • Full Lighting Kit, Indicators & Horn
  • Large Internal Rear-view Mirror
  • Illuminated Side Rear-view Mirrors
  • 10.1 inch Touchscreen Infotainment System and live Vehicle Diagnostics
  • Reversing Camera
  • One-touch start/stop ignition button
  • Wireless remote ignition remotes (2)
  • Lockable Glove Box for both Driver and Passenger
  • On-Board Lithium RCM approved Lithium Battery Charger
  • Integrated Lithium Battery System, 100% certified and approved
  • 5.0kW AC Asynchronous Motor (effortless torque and power)
  • ECAR APEX 450A AC Motor Controller
  • Dual USB Charging port – 1 x USB-C and 1 x USB-A port
  • Split Folding Windscreen
  • 12” ‘APEX’ Mag Wheels with 23×10.5-12 Off-road Tyres
  • ECAR Exclusive Fold-Out 3-Way Golfer’s Seat
  • Metallic Paint Finish including the Roof
  • NEW High-back ergonomic Seats



Why Choose the ECAR Compass 2+2G 4 Seat Lifted Golf Cart?

The ECAR Compass 2+2G 4 Seat Lifted Golf Cart is perfect for golfers who need flexibility and comfort while navigating the course. With its unique 3-way fold-out golfer’s seat, this cart provides ample space for passengers, golf bags, or cargo. Whether you’re hitting the greens or exploring rugged terrains, this 4 seat lifted golf cart ensures a smooth, reliable ride with plenty of storage options.

The Compass Series of golf carts is a testament to ECAR’s commitment to quality and innovation. Almost 20 years later and our carts are still a preferred brand with thousands of golfers around the country. Now available to be fitted with an ECAR PRO-Li Battery system designed and manufactured by us; this cart will fulfil many requirements, for many years to come.

Contact your nearest dealer today for a quote on delivery or send us an enquiry here and we will put you in touch with the most suited dealer to save you time.

Additional information

Battery System

, ,

Colour

Metallic Black, Metallic Gunmetal Grey, Metallic Silver, Metallic Burgundy, Metallic Forest Green, Metallic Navy Blue, Metallic Champagne, Metallic White

Product Weight499 kg
Product Dimensions0.00 kg
