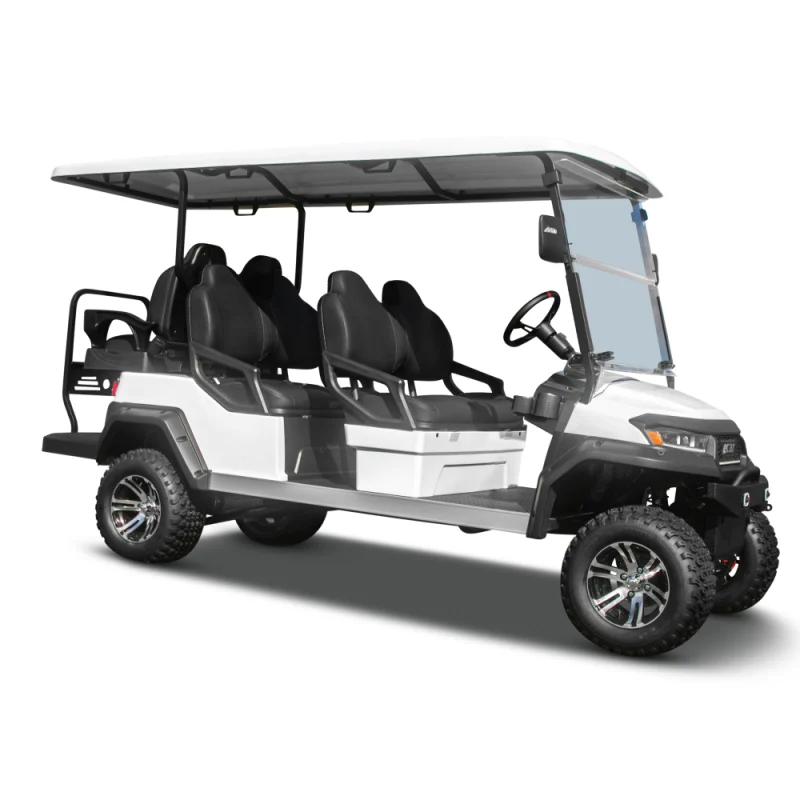

ECAR Compass 4+2G 6 Seat Lifted Golf Cart

From $20,990.00

The ECAR Compass 4+2G 6 Seat Lifted Golf Cart features 22-inch off-road tyres, a 2-way rear-facing seat that folds into a cargo tray, and an extended roof for extra passenger protection. With lifted suspension and six-passenger seating, this cart is perfect for off-road adventures, golf courses, and resorts.

Persons
Battery System
Motor
48V AC Brushless High Torque 5kW Motor
Controller
ECAR APEX 48V/450A ECAR APEX AC Controller
Colours
SKU COMPASS4+2G Categories , Tags , ,
Length (mm): 3695
Width (mm): 1360
Height (mm): 2150

Wheelbase overall length (centre of front hub to centre of rear hub): 2490mm

Wheelbase width between (centre of tread to centre of tread): Front 980mm, Rear 1060mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 5 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 2 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 4 x forward facing, 2 x backwards facing

Tare Weight – No Batteries (kgs): 599

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 25%

Hill Hold Performance (limit): 20% Grade

Minimum Ground Clearance: 160mm

Minimum Turning Radius: 5.25m

Rated Braking Distance: <6m

Avg. Energy Consumption per hour: 8.5-9.5kW/hr based on terrain & programmed controller parameters
Proprietary Controller: ECAR APEX 450A Controller, Upgraded 48V 450A System

Electric Motor: LT AC Synchronous (Induction) 48V/5kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified and Manufacturer Approved ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V High 500W Output Infotainment: 2 speaker stereo sound system with AM/FM Tuner, Bluetooth, Phone Screen Mirroring and USB playback and Bluetooth Phone calls. On-screen cart diagnostics, speedometer and mileage meter, Lithium State of Charge Meter. Reversing: HD Reversing Camera that shows up on the Dash touchscreen when reverse gear is selected
Dashboard: 10.1inch Touchscreen Cart Dash and Infotainment System

Interior Seating: Black High-back Ergonomic Seats

Interior Floor: Diamond pattern high-density Poly

Rear-View Mirror: 1 x Internal, 2 x Illuminated Side Mirrors
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clear coat

Roof Body Panel: Automotive engineering PP material injection mould with increased stiffness

Front Windshield: Safety Folding Acrylic Windshield – Suited for golf course use

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, LED Indicators, LED Rear Tail Lights, LED Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Swing Arm with MacPherson Independent suspension on all four wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Integrated rear Transaxle. Ratio: 16:1 (4 Seat)

Wheels & Tyres: 10” ‘Bulldog’ Alloy Rims with 205/65-10 High wall 4P Turf Tyre
Standard Included Accessories: Seat Covers, Tow Bar (rated to 350kg Towing, 50kg vertical ball weight), 2-Way Rear Facing Seat that folds out to a cargo tray
Optional Extras: Grey/Beige Vinyl Seats; Marine Grade Rain Curtains
Length (mm): 3695
Width (mm): 1360
Height (mm): 2150

Wheelbase overall length (centre of front hub to centre of rear hub): 2490mm

Wheelbase width between (centre of tread to centre of tread): Front 980mm, Rear 1060mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 5 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 2 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 4 x forward facing, 2 x backwards facing

Tare Weight – No Batteries (kgs): 599

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 25%

Hill Hold Performance (limit): 20% Grade

Minimum Ground Clearance: 160mm

Minimum Turning Radius: 5.25m

Rated Braking Distance: <6m

Avg. Energy Consumption per hour: 8.5-9.5kW/hr based on terrain & programmed controller parameters
Proprietary Controller: ECAR APEX 450A Controller, Upgraded 48V 450A System

Electric Motor: LT AC Synchronous (Induction) 48V/5kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified and Manufacturer Approved ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V High 500W Output Infotainment: 2 speaker stereo sound system with AM/FM Tuner, Bluetooth, Phone Screen Mirroring and USB playback and Bluetooth Phone calls. On-screen cart diagnostics, speedometer and mileage meter, Lithium State of Charge Meter. Reversing: HD Reversing Camera that shows up on the Dash touchscreen when reverse gear is selected
Dashboard: 10.1inch Touchscreen Cart Dash and Infotainment System

Interior Seating: Black High-back Ergonomic Seats

Interior Floor: Diamond pattern high-density Poly

Rear-View Mirror: 1 x Internal, 2 x Illuminated Side Mirrors
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clear coat

Roof Body Panel: Automotive engineering PP material injection mould with increased stiffness

Front Windshield: Safety Folding Acrylic Windshield – Suited for golf course use

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, LED Indicators, LED Rear Tail Lights, LED Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Swing Arm with MacPherson Independent suspension on all four wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Integrated rear Transaxle. Ratio: 16:1 (4 Seat)

Wheels & Tyres: 10” ‘Bulldog’ Alloy Rims with 205/65-10 High wall 4P Turf Tyre
Standard Included Accessories: Seat Covers, Tow Bar (rated to 350kg Towing, 50kg vertical ball weight), 2-Way Rear Facing Seat that folds out to a cargo tray
Optional Extras: Grey/Beige Vinyl Seats; Marine Grade Rain Curtains

Description

Discover the ECAR Compass 4+2G 6 Seat Lifted Golf Cart – More Space, More Adventure

Introducing the ECAR Compass 4+2G 6 Seat Lifted Golf Cart, designed for those who need more room without sacrificing power and performance. This lifted model features a spacious six-seat configuration, including a 2-way rear-facing seat and an extended roof for extra protection. Built for off-road adventures, golf courses, or resorts, the Compass 4+2G offers the same rugged capability and sleek design as its 4-seat counterpart, with the added benefit of increased seating capacity.

Key Features:

  • 22-Inch Off-road Tyres for Superior Traction: The ECAR Compass 4+2G is fitted with large 22-inch off-road tyres on 12-inch Mag Wheels, designed to handle rough terrain effortlessly. With enhanced grip and stability, this cart outperforms standard golf carts in off-road conditions.
  • Lifted Suspension for Enhanced Ground Clearance: The lifted suspension offers superior ground clearance, allowing you to tackle uneven surfaces and obstacles with ease.
  • 2-Way Rear-Facing Seat and Extended Roof: This model includes a versatile two-way rear-facing seat that folds into a flat cargo tray for transporting goods, and the extended roof provides added protection for all six passengers.
  • Forward-Facing Passenger Comfort: With 4 forward-facing seats and 2 rear-facing seats, the Compass 4+2G ensures a smooth and comfortable ride for all passengers, making it perfect for long journeys across varied terrain.
  • Rugged and Stylish Design: The ECAR Compass 4+2G combines off-road performance with modern aesthetics, offering a sleek, lifted design that looks great on any course or trail.

Colours:

Personalise your ECAR Compass 4+2G 6 Seat Lifted Golf Cart with one of these stunning metallic finishes, all with matching painted roofs:

  • Metallic Black
  • Metallic Gunmetal Grey
  • Metallic Silver
  • Metallic Burgundy
  • Metallic Forest Green
  • Metallic Navy Blue
  • Metallic Champagne
  • Metallic White



Standard Inclusions:

  • Full Lighting Kit, Indicators & Horn
  • Large Internal Rear-view Mirror
  • Illuminated Side Rear-view Mirrors
  • 10.1 inch Touchscreen Infotainment System and live Vehicle Diagnostics
  • Reversing Camera
  • One-touch start/stop ignition button
  • Wireless remote ignition remotes (2)
  • Lockable Glove Box for both Driver and Passenger
  • On-Board Lithium RCM approved Lithium Battery Charger
  • Integrated Lithium Battery System, 100% certified and approved
  • 5.0kW AC Asynchronous Motor (effortless torque and power)
  • Dual USB Charging port – 1 x USB-C and 1 x USB-A port
  • Split Folding Windscreen
  • 10″ ‘Bulldog’ Mag Wheels with 205/65-10 High-wall Tyres
  • 2-Way Rear Facing Seat that folds out to a cargo tray
  • Metallic Paint Finish including the Roof
  • NEW High-back ergonomic Seats
  • Rear Sweater Basket



Why Choose the ECAR Compass 4+2G 6 Seat Lifted Golf Cart?

The ECAR Compass 4+2G 6 Seat Lifted Golf Cart is the perfect choice for those who need additional seating and cargo flexibility without sacrificing off-road capability. Whether you’re navigating rugged trails, transporting passengers around a resort, or managing a golf course, this cart delivers reliable power and comfort. With its spacious seating, extended roof, and versatile cargo options, the Compass 4+2G is built to handle whatever comes its way.

The Compass Series of golf carts is a testament to ECAR’s commitment to quality and innovation. Almost 20 years later and our carts are still a preferred brand with thousands of golfers around the country. Now available to be fitted with an ECAR PRO-Li Battery system designed and manufactured by us; this cart will fulfil many requirements, for many years to come.

Contact your nearest dealer today for a quote on delivery or send us an enquiry here and we will put you in touch with the most suited dealer to save you time.

Additional information

Battery System

, ,

Colour

Metallic Black, Metallic Gunmetal Grey, Metallic Silver, Metallic Burgundy, Metallic Forest Green, Metallic Navy Blue, Metallic Champagne, Metallic White

Product Weight599.00 kg
Product Dimensions599.00 kg
