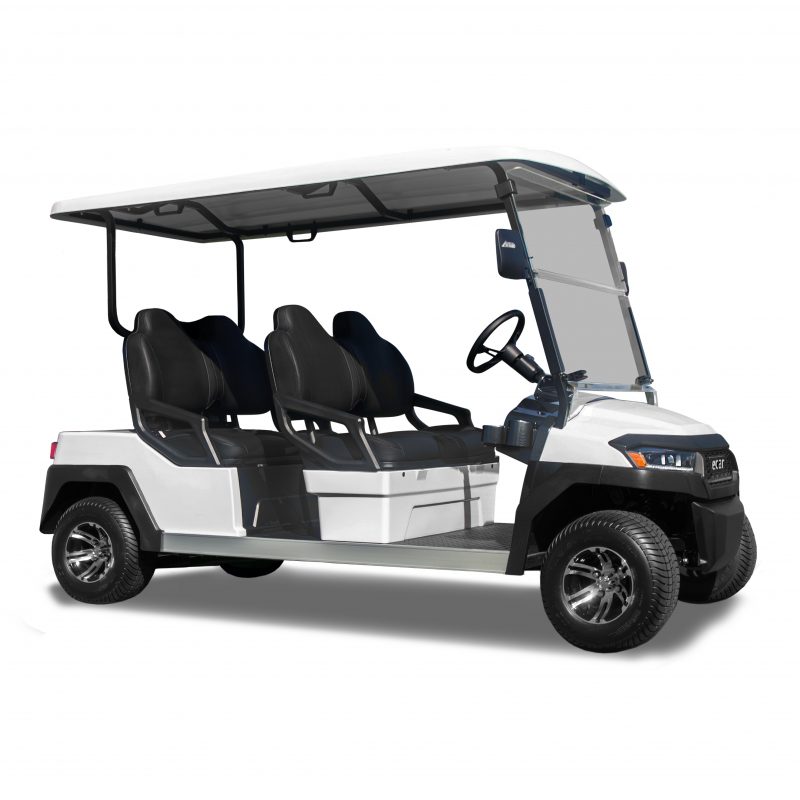

ECAR Compass 4 Seat Golf Cart

From $17,990.00

The ECAR Compass 4 Seat Golf Cart is designed with comfort in mind, featuring four forward-facing seats for a smooth and enjoyable ride. Perfect for golf courses, resorts, private estates, botanical gardens, parks or any workplace. This stylish and reliable cart delivers exceptional passenger comfort and performance on any terrain.

Ideal for those who prioritise comfort and convenience in their everyday transport.

Persons
Battery System
Motor
48V AC Brushless High Torque 4kW Motor
Controller
ECAR APEX 48V/450A ECAR AC Controller
Colours
Length (mm): 3190
Width (mm): 1250
Height (mm): 1900

Wheelbase overall length (centre of front hub to centre of rear hub): 2420mm

Wheelbase width between (centre of tread to centre of tread): Front 930mm, Rear 1000mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 5 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 2 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 4 x facing forwards

Tare Weight – No Batteries (kgs): 474

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 25%

Hill Hold Performance (limit): 20% Grade

Minimum Ground Clearance (mm): 118

Minimum Turning Radius: 4.3m

Rated Braking Distance: <6m

Avg. Energy Consumption per hour: 7.8-9.0kW/hr based on terrain & programmed controller parameters
Proprietary Controller: ECAR APEX 450A Controller, Upgraded 48V 450A System

Electric Motor: LT AC Synchronous (Induction) 48V/4kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified and Manufacturer Approved ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V High 500W Output Infotainment: 2 speaker stereo sound system with AM/FM Tuner, Bluetooth, Phone Screen Mirroring and USB playback and Bluetooth Phone calls. On-screen cart diagnostics, speedometer and mileage meter, Lithium State of Charge Meter. Reversing: HD Reversing Camera that shows up on the Dash touchscreen when reverse gear is selected
Dashboard: 10.1inch Touchscreen Cart Dash and Infotainment System

Interior Seating: Black High-back Ergonomic Seats

Interior Floor: Diamond pattern high-density Poly

Rear-View Mirror: 1 x Internal, 2 x Illuminated Side Mirrors
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clear coat

Roof Body Panel: Automotive engineering PP material injection mould with increased stiffness

Front Windshield: Safety Folding Acrylic Windshield – Suited for golf course use

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, LED Indicators, LED Rear Tail Lights, LED Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Swing Arm with MacPherson Independent suspension on all four wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Integrated rear Transaxle. Ratio: 16:1 (4 Seat)

Wheels & Tyres: 10” ‘Bulldog’ Alloy Rims with 205/65-10 High wall 4P Turf Tyre
Standard Included Golfers Accessory: Seat Covers, Tow Bar (rated to 350kg Towing, 50kg vertical ball weight)
Optional Extras: 5kW Motor Upgrade; Grey/Beige Vinyl Seats; Marine Grade Rain Curtains, Sand Bottles, Drinks Cooler, Club/Ball Washer
Length (mm): 3190
Width (mm): 1250
Height (mm): 1900

Wheelbase overall length (centre of front hub to centre of rear hub): 2420mm

Wheelbase width between (centre of tread to centre of tread): Front 930mm, Rear 1000mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 5 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 2 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 4 x facing forwards

Tare Weight – No Batteries (kgs): 474

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 25%

Hill Hold Performance (limit): 20% Grade

Minimum Ground Clearance (mm): 118

Minimum Turning Radius: 4.3m

Rated Braking Distance: <6m

Avg. Energy Consumption per hour: 7.8-9.0kW/hr based on terrain & programmed controller parameters
Proprietary Controller: ECAR APEX 450A Controller, Upgraded 48V 450A System

Electric Motor: LT AC Synchronous (Induction) 48V/4kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified and Manufacturer Approved ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V High 500W Output Infotainment: 2 speaker stereo sound system with AM/FM Tuner, Bluetooth, Phone Screen Mirroring and USB playback and Bluetooth Phone calls. On-screen cart diagnostics, speedometer and mileage meter, Lithium State of Charge Meter. Reversing: HD Reversing Camera that shows up on the Dash touchscreen when reverse gear is selected
Dashboard: 10.1inch Touchscreen Cart Dash and Infotainment System

Interior Seating: Black High-back Ergonomic Seats

Interior Floor: Diamond pattern high-density Poly

Rear-View Mirror: 1 x Internal, 2 x Illuminated Side Mirrors
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clear coat

Roof Body Panel: Automotive engineering PP material injection mould with increased stiffness

Front Windshield: Safety Folding Acrylic Windshield – Suited for golf course use

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, LED Indicators, LED Rear Tail Lights, LED Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Swing Arm with MacPherson Independent suspension on all four wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Integrated rear Transaxle. Ratio: 16:1 (4 Seat)

Wheels & Tyres: 10” ‘Bulldog’ Alloy Rims with 205/65-10 High wall 4P Turf Tyre
Standard Included Golfers Accessory: Seat Covers, Tow Bar (rated to 350kg Towing, 50kg vertical ball weight)
Optional Extras: 5kW Motor Upgrade; Grey/Beige Vinyl Seats; Marine Grade Rain Curtains, Sand Bottles, Drinks Cooler, Club/Ball Washer

Description

Discover the ECAR Compass 4 Seat Golf Cart – Passenger Comfort in Every Ride

Introducing the ECAR Compass 4 Seat Golf Cart, a premium model designed with passenger comfort in mind. This cart features four forward-facing seats, ensuring that all passengers enjoy a smooth and comfortable ride facing in the direction of travel. Perfect for golf courses, resorts, and private estates, the Compass 4 Seat Golf Cart offers a blend of style, innovation, and convenience.

Key Features:

  • Forward-Facing Comfort: All four seats are designed to face forward, providing a comfortable and enjoyable ride for all passengers. Whether it’s for leisure or personal transport, the Compass ensures an optimal experience.
  • Sleek Design: The ECAR Compass 4 Seat Golf Cart comes with a modern and stylish design, making it ideal for any environment. Its ergonomic seating and spacious interior provide a luxurious experience for both the driver and passengers.
  • Reliable Performance: Powered by ECAR’s efficient electric motor, the Compass delivers smooth and consistent performance on various terrains, ensuring a reliable and enjoyable journey.

Colours:
Personalise your ECAR 4 Seat Golf Cart to fit your style. All standard colours are metallic paint finishes with the ECAR standard matching painted roof.

  • Metallic Black
  • Metallic Gunmetal Grey
  • Metallic Silver
  • Metallic Burgundy
  • Metallic Forest Green
  • Metallic Navy Blue
  • Metallic Champagne
  • Metallic White



Standard Inclusions:

  • Full Lighting Kit, Indicators & Horn
  • Large Internal Rear-view Mirror
  • Illuminated Side Rear-view Mirrors
  • Lockable Glove Box for both Driver and Passenger
  • On-Board Lithium RCM approved Lithium Battery Charger
  • Integrated Lithium Battery System. 100% certified and approved
  • Dual USB Charging port – 1 x USB-C and 1 x USB-A port
  • 2 x Dual Cup Holders
  • Split Folding Windscreen
  • 10″ ‘Bulldog’ Mag Wheels
  • Metallic Paint Finish including the Roof
  • NEW High-back ergonomic Seats



Why Choose the ECAR Compass 4 Seat Golf Cart?

The ECAR Compass 4 Seat Golf Cart is perfect for those who value passenger comfort and sleek design in their everyday transport. Whether you are navigating a golf course, resort, private estate, botanical garden or your workplace, this cart delivers the comfort, style, and performance you need. Powered by ECAR’s safe and reliable Lithium battery system, it’s built to last and designed to impress.

The Compass Series of golf carts is a testament to ECAR’s commitment to quality and innovation. Almost 20 years later and our carts are still a preferred brand with thousands of golfers around the country. Now available to be fitted with an ECAR PRO-Li Battery system designed and manufactured by us; this cart will fulfil many requirements, for many years to come.

Contact your nearest dealer today for a quote on delivery or send us an enquiry here and we will put you in touch with the most suited dealer to save you time.

Additional information

Battery System

, ,

Colour

Metallic Black, Metallic Gunmetal Grey, Metallic Silver, Metallic Burgundy, Metallic Forest Green, Metallic Navy Blue, Metallic Champagne, Metallic White

Product Weight474.00 kg
Product Dimensions474.00 kg
