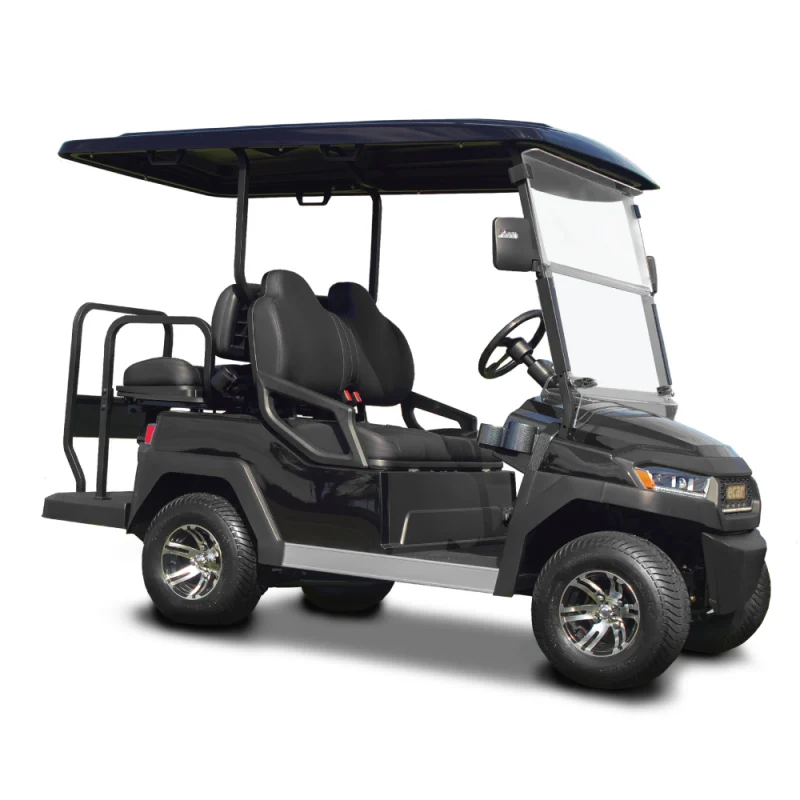

ECAR Compass 2+2 4 Seat Golf Cart

From $17,990.00

The ECAR Compass 2+2 4 Seat Golf Cart offers unmatched versatility with a 3-way rear golfer’s seat or an optional 2-way fold-out luggage tray, making it ideal for both leisure and commercial use. Equipped with advanced features like a 10.1-inch touchscreen, high-back ergonomic seats, and ECAR’s own certified and approved Lithium battery system, it delivers a comfortable and reliable ride every time.

Perfect for those seeking flexible and reliable transport on golf courses, resorts, or commercial properties.

Persons
Battery System
Motor
48V AC Brushless High Torque 4kW Motor
Controller
ECAR APEX 48V/450A ECAR AC Controller
Colours
SKU COMPASS2+2 Categories , Tags , ,
Length (mm): 2830
Width (mm): 1250
Height (mm): 1900

Wheelbase overall length (centre of front hub to centre of rear hub): 1600mm

Wheelbase width between (centre of tread to centre of tread): Front 930mm, Rear 1000mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 5 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 2 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 2 x facing forwards, 2 x facing backwards

Tare Weight – No Batteries (kgs): 410

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 35%

Hill Hold Performance (limit): 20% Grade

Minimum Ground Clearance (mm): 118

Minimum Turning Radius: 3.30m

Rated Braking Distance: <6m

Avg. Energy Consumption per hour: 7.5-8.5kW/hr based on terrain & programmed controller parameters
Proprietary Controller: ECAR APEX 450A Controller, Upgraded 48V 450A System

Electric Motor: LT AC Synchronous (Induction) 48V/4kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified and Manufacturer Approved ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V High 500W Output Infotainment: 2 speaker stereo sound system with AM/FM Tuner, Bluetooth, Phone Screen Mirroring and USB playback and Bluetooth Phone calls. On-screen cart diagnostics, speedometer and mileage meter, Lithium State of Charge Meter. Reversing: HD Reversing Camera that shows up on the Dash touchscreen when reverse gear is selected
Dashboard: 10.1inch Touchscreen Cart Dash and Infotainment System

Interior Seating: Black High-back Ergonomic Seats

Interior Floor: Diamond pattern high-density Poly

Rear-View Mirror: 1 x Internal, 2 x Illuminated Side Mirrors
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clear coat

Roof Body Panel: Automotive engineering PP material injection mould with increased stiffness

Front Windshield: Safety Folding Acrylic Windshield – Suited for golf course use

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, LED Indicators, LED Rear Tail Lights, LED Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Swing Arm with MacPherson Independent suspension on all four wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Integrated rear Transaxle. Ratio: 12.31:1 (2 Seat)

Wheels & Tyres: 10” ‘Bulldog’ Alloy Rims with 205/65-10 High wall 4P Turf Tyre
Standard Included Accessories: Seat Covers
Optional Extras: Grey/Beige Vinyl Seats; Tow Bar (rated to 350kg Towing, 50kg vertical ball weight); Marine Grade Rain Curtains, Sand Bottles, Drinks Cooler, Club/Ball Washer
Length (mm): 2830
Width (mm): 1250
Height (mm): 1900

Wheelbase overall length (centre of front hub to centre of rear hub): 1600mm

Wheelbase width between (centre of tread to centre of tread): Front 930mm, Rear 1000mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 5 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 2 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 2 x facing forwards, 2 x facing backwards

Tare Weight – No Batteries (kgs): 410

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 35%

Hill Hold Performance (limit): 20% Grade

Minimum Ground Clearance (mm): 118

Minimum Turning Radius: 3.30m

Rated Braking Distance: <6m

Avg. Energy Consumption per hour: 7.5-8.5kW/hr based on terrain & programmed controller parameters
Proprietary Controller: ECAR APEX 450A Controller, Upgraded 48V 450A System

Electric Motor: LT AC Synchronous (Induction) 48V/4kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified and Manufacturer Approved ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V High 500W Output Infotainment: 2 speaker stereo sound system with AM/FM Tuner, Bluetooth, Phone Screen Mirroring and USB playback and Bluetooth Phone calls. On-screen cart diagnostics, speedometer and mileage meter, Lithium State of Charge Meter. Reversing: HD Reversing Camera that shows up on the Dash touchscreen when reverse gear is selected
Dashboard: 10.1inch Touchscreen Cart Dash and Infotainment System

Interior Seating: Black High-back Ergonomic Seats

Interior Floor: Diamond pattern high-density Poly

Rear-View Mirror: 1 x Internal, 2 x Illuminated Side Mirrors
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clear coat

Roof Body Panel: Automotive engineering PP material injection mould with increased stiffness

Front Windshield: Safety Folding Acrylic Windshield – Suited for golf course use

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, LED Indicators, LED Rear Tail Lights, LED Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Swing Arm with MacPherson Independent suspension on all four wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Integrated rear Transaxle. Ratio: 12.31:1 (2 Seat)

Wheels & Tyres: 10” ‘Bulldog’ Alloy Rims with 205/65-10 High wall 4P Turf Tyre
Standard Included Accessories: Seat Covers
Optional Extras: Grey/Beige Vinyl Seats; Tow Bar (rated to 350kg Towing, 50kg vertical ball weight); Marine Grade Rain Curtains, Sand Bottles, Drinks Cooler, Club/Ball Washer

Description

Discover the ECAR Compass 2+2 4 Seat Golf Cart – Versatility Meets Innovation

Introducing the ECAR Compass 2+2 4 Seat Golf Cart, the latest addition to the Compass series by ECAR Golf. This model is designed to offer maximum versatility, whether for leisure or commercial use. Featuring ECAR’s unique 3-way rear golfer’s seat in the golfer model and a 2-way fold-out luggage tray in the commercial model, this cart is perfect for golf courses, resorts, and various commercial applications. With its advanced technology and superior comfort, the Compass 2+2 ensures a smooth and enjoyable ride every time.

NEW ECAR Compass 2+2 4 Seat Golf Cart Key Features:

  • Innovative Seating Options: The golfer model includes a 3-way rear seat that transforms from a standard seat to a golf bag holder or a flat cargo surface, providing flexibility for various needs on the course. The commercial model is equipped with a 2-way fold-out luggage tray, making it ideal for transporting goods and equipment.
  • Entertainment and Connectivity: Stay connected and informed with the built-in 10.1-inch touchscreen. The system allows music playback via Bluetooth or USB phone connection, as well as through the FM/AM tuner. It also displays live vehicle diagnostics such as speed, battery state of charge, and more, plus a reverse camera for added safety.
  • Comfort-Driven Design: Enjoy the ride with all-new high-back ergonomic seats and spacious seating for four passengers. Whether you’re transporting guests or cargo, the Compass 2+2 delivers comfort and reliability.



Colours:
Personalise your ECAR 4 Seat Golf Cart to fit your style. All standard colours are metallic paint finishes with the ECAR standard matching painted roof.

  • Metallic Black
  • Metallic Gunmetal Grey
  • Metallic Silver
  • Metallic Burgundy
  • Metallic Forest Green
  • Metallic Navy Blue
  • Metallic Champagne
  • Metallic White



Standard Inclusions:

  • Full Lighting Kit, Indicators & Horn
  • Large Internal Rear-view Mirror
  • Illuminated Side Rear-view Mirrors
  • 10.1 inch Touchscreen Infotainment System and live Vehicle Diagnostics
  • Reversing Camera
  • One-touch start/stop ignition button
  • Wireless remote ignition remotes (2)
  • Lockable Glove Box for both Driver and Passenger
  • On-Board Lithium RCM approved Lithium Battery Charger
  • Integrated Lithium Battery System. 100% certified and approved
  • 5.0kW AC Asynchronous Motor (effortless torque and power)
  • Dual USB Charging port – 1 x USB-C and 1 x USB-A port
  • Split Folding Windscreen
  • 10″ ‘Bulldog’ Mag Wheels with 205/65-10 High-wall Tyres
  • Rear Golf Bag Canopy
  • 2 x Dual Cup Holders
  • 2 x Sand Bottles with side handles and Holders
  • Club & Ball Washer
  • Metallic Paint Finish including the Roof
  • NEW High-back ergonomic Seats
  • Rear Sweater Basket

Why Choose the ECAR Compass 2+2 4 Seat Golf Cart?

The ECAR Compass 2+2 4 Seat Golf Cart is the perfect solution for those who need versatility in their transport. Whether you’re a golfer, live in a resort, or work at a commercial property, this cart offers the advanced technology, innovative features, and reliable performance that ECAR Golf carts are known for. Powered by ECAR’s safe and efficient Lithium battery system, this cart is built to last and is fully customisable to suit your specific needs. The Compass Series continues to uphold ECAR’s legacy of quality and innovation, ensuring satisfaction for years to come.

The Compass Series of golf carts is a testament to ECAR’s commitment to quality and innovation. Almost 20 years later and our carts are still a preferred brand with thousands of golfers around the country. Now available to be fitted with an ECAR PRO-Li Battery system designed and manufactured by us; this cart will fulfil many requirements, for many years to come.

Contact your nearest dealer today for a quote on delivery or send us an enquiry here and we will put you in touch with the most suited dealer to save you time.
