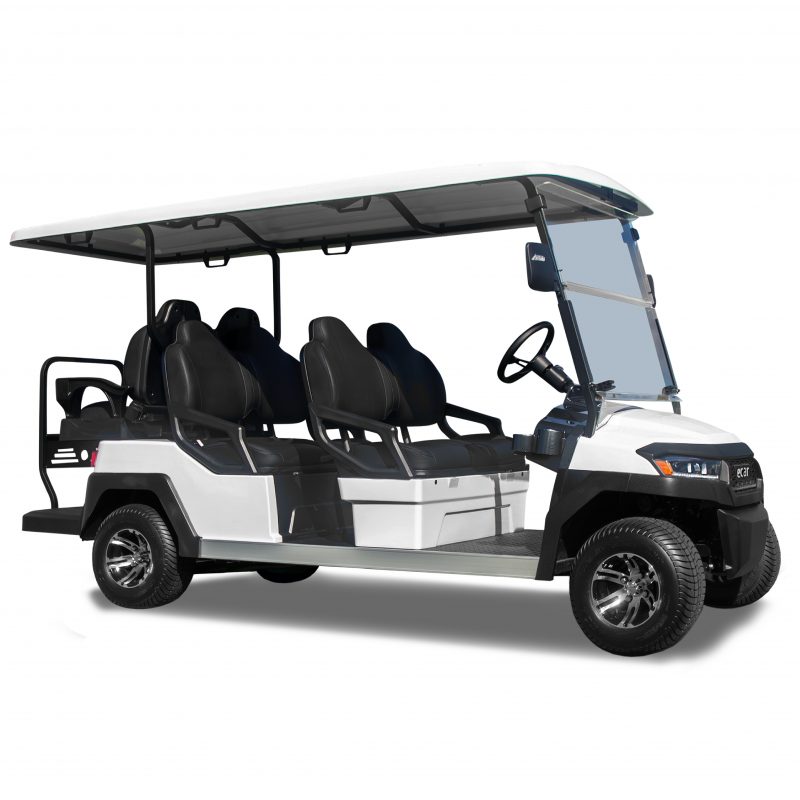

ECAR Compass 4+2 6 Seat Golf Cart

From $18,990.00

The ECAR Compass 4+2 6 Seat Golf Cart combines versatility and comfort, featuring four forward-facing seats and a rear two-way seat that folds out to a cargo tray or serves as additional rear-facing seating. With an extended roof for added weather protection, this cart is ideal for transporting passengers or cargo around golf courses, resorts, private estates or your workplace. Its innovative design and reliable performance make it a standout choice for those who need flexible transport solutions.

Perfect for those who require both passenger and cargo capabilities with style and convenience.

Persons
Battery System
Motor
48V AC Brushless High Torque 4kW Motor
Controller
ECAR APEX 48V/450A ECAR AC Controller
Colours
SKU COMPASS4+2 Categories , Tags , ,
Length (mm): 3670
Width (mm): 1250
Height (mm): 1900

Wheelbase overall length (centre of front hub to centre of rear hub): 2420mm

Wheelbase width between (centre of tread to centre of tread): Front 930mm, Rear 1000mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 5 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 2 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 4 x forward facing, 2 x backwards facing

Tare Weight – No Batteries (kgs): 524

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 25%

Hill Hold Performance (limit): 20% Grade

Minimum Ground Clearance: 118mm

Minimum Turning Radius: 4.3m

Rated Braking Distance: <6m

Avg. Energy Consumption per hour: 7.8-9.0kW/hr based on terrain & programmed controller parameters
Proprietary Controller: ECAR APEX 450A Controller, Upgraded 48V 450A System

Electric Motor: LT AC Synchronous (Induction) 48V/4kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified and Manufacturer Approved ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V High 500W Output Infotainment: 2 speaker stereo sound system with AM/FM Tuner, Bluetooth, Phone Screen Mirroring and USB playback and Bluetooth Phone calls. On-screen cart diagnostics, speedometer and mileage meter, Lithium State of Charge Meter. Reversing: HD Reversing Camera that shows up on the Dash touchscreen when reverse gear is selected
Dashboard: 10.1inch Touchscreen Cart Dash and Infotainment System

Interior Seating: Black High-back Ergonomic Seats

Interior Floor: Diamond pattern high-density Poly

Rear-View Mirror: 1 x Internal, 2 x Illuminated Side Mirrors
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clear coat

Roof Body Panel: Automotive engineering PP material injection mould with increased stiffness

Front Windshield: Safety Folding Acrylic Windshield – Suited for golf course use

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, LED Indicators, LED Rear Tail Lights, LED Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Swing Arm with MacPherson Independent suspension on all four wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Integrated rear Transaxle. Ratio: 16:1 (4 Seat)

Wheels & Tyres: 10” ‘Bulldog’ Alloy Rims with 205/65-10 High wall 4P Turf Tyre
Standard Included Accessories: Seat Covers, Tow Bar (rated to 350kg Towing, 50kg vertical ball weight); 2-Way Rear Facing Seat that folds out to a cargo tray
Optional Extras: Grey/Beige Vinyl Seats; Marine Grade Rain Curtains
Length (mm): 3670
Width (mm): 1250
Height (mm): 1900

Wheelbase overall length (centre of front hub to centre of rear hub): 2420mm

Wheelbase width between (centre of tread to centre of tread): Front 930mm, Rear 1000mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 5 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 2 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 4 x forward facing, 2 x backwards facing

Tare Weight – No Batteries (kgs): 524

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 25%

Hill Hold Performance (limit): 20% Grade

Minimum Ground Clearance: 118mm

Minimum Turning Radius: 4.3m

Rated Braking Distance: <6m

Avg. Energy Consumption per hour: 7.8-9.0kW/hr based on terrain & programmed controller parameters
Proprietary Controller: ECAR APEX 450A Controller, Upgraded 48V 450A System

Electric Motor: LT AC Synchronous (Induction) 48V/4kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified and Manufacturer Approved ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V High 500W Output Infotainment: 2 speaker stereo sound system with AM/FM Tuner, Bluetooth, Phone Screen Mirroring and USB playback and Bluetooth Phone calls. On-screen cart diagnostics, speedometer and mileage meter, Lithium State of Charge Meter. Reversing: HD Reversing Camera that shows up on the Dash touchscreen when reverse gear is selected
Dashboard: 10.1inch Touchscreen Cart Dash and Infotainment System

Interior Seating: Black High-back Ergonomic Seats

Interior Floor: Diamond pattern high-density Poly

Rear-View Mirror: 1 x Internal, 2 x Illuminated Side Mirrors
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clear coat

Roof Body Panel: Automotive engineering PP material injection mould with increased stiffness

Front Windshield: Safety Folding Acrylic Windshield – Suited for golf course use

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, LED Indicators, LED Rear Tail Lights, LED Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Swing Arm with MacPherson Independent suspension on all four wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Integrated rear Transaxle. Ratio: 16:1 (4 Seat)

Wheels & Tyres: 10” ‘Bulldog’ Alloy Rims with 205/65-10 High wall 4P Turf Tyre
Standard Included Accessories: Seat Covers, Tow Bar (rated to 350kg Towing, 50kg vertical ball weight); 2-Way Rear Facing Seat that folds out to a cargo tray
Optional Extras: Grey/Beige Vinyl Seats; Marine Grade Rain Curtains

Description

Discover the ECAR Compass 4+2 6 Seat Golf Cart – Versatility and Comfort Combined

Introducing the ECAR Compass 4+2 6 Seat Golf Cart, the latest addition to the Compass series, designed for those who need extra seating and versatility. This model comes equipped with an extended roof for enhanced coverage and features a two-way rear-facing seat that can either fold out to a cargo tray or serve as a two-seat passenger bench. It’s the perfect solution for transporting multiple passengers or carrying extra cargo across golf courses, resorts, and private estates.



Key Features:

  • Versatile Rear Seating: The innovative two-way rear seat can fold out into a flat cargo tray for transporting goods or function as a two-seat rear-facing passenger bench, providing flexibility for different needs.
  • Extended Roof for Extra Coverage: The ECAR Compass 4+2 features an extended roof, offering protection from the elements for all six passengers, making every ride comfortable and enjoyable.
  • 10.1-Inch Touchscreen Infotainment System and Live Vehicle Diagnostics: Stay connected and informed with the built-in 10.1-inch touchscreen. The system allows music playback via Bluetooth or USB phone connection, as well as through the FM/AM tuner. It also displays live vehicle diagnostics such as speed, battery state of charge, and more, plus a reverse camera for added safety in this 6 Seat Golf Cart.
  • Passenger Comfort: In addition to the rear-facing seating, the Compass 4+2 maintains the comfort of four forward-facing seats, ensuring a smooth and enjoyable ride for all passengers.

Colours:
Personalise your ECAR Compass 4+2 6 Seat Golf Cart to fit your style. All standard colours are metallic paint finishes with matching painted roofs.

  • Metallic Black
  • Metallic Gunmetal Grey
  • Metallic Silver
  • Metallic Burgundy
  • Metallic Forest Green
  • Metallic Navy Blue
  • Metallic Champagne
  • Metallic White



Standard Inclusions:

  • Full Lighting Kit, Indicators & Horn
  • Large Internal Rear-view Mirror
  • Illuminated Side Rear-view Mirrors
  • 10.1 inch Touchscreen Infotainment System and live Vehicle Diagnostics
  • Reversing Camera
  • One-touch start/stop ignition button
  • Wireless remote ignition remotes (2)
  • Lockable Glove Box for both Driver and Passenger
  • On-Board Lithium RCM approved Lithium Battery Charger
  • Integrated Lithium Battery System. 100% certified and approved
  • 5.0kW AC Asynchronous Motor (effortless torque and power)
  • Dual USB Charging port – 1 x USB-C and 1 x USB-A port
  • Split Folding Windscreen
  • 10″ ‘Bulldog’ Mag Wheels with 205/65-10 High-wall Tyres
  • 2-Way Rear Facing Seat that folds out to a cargo tray
  • Metallic Paint Finish including the Roof
  • NEW High-back ergonomic Seats
  • Rear Sweater Basket



Why Choose the ECAR Compass 4+2 6 Seat Golf Cart?

The ECAR Compass 4+2 6 Seat Golf Cart is the perfect solution for those who require flexible forward facing passenger and cargo options in their transport. Whether you need to transport extra passengers or carry cargo, this cart delivers the versatility and performance you expect from ECAR. Ideal for golf courses, resorts, and private estates or your workplace, the Compass 4+2 combines innovation, style, and comfort for all.

The Compass Series of golf carts is a testament to ECAR’s commitment to quality and innovation. Almost 20 years later and our carts are still a preferred brand with thousands of golfers around the country. Now available to be fitted with an ECAR PRO-Li Battery system designed and manufactured by us; this cart will fulfil many requirements, for many years to come.

Contact your nearest dealer today for a quote on delivery or send us an enquiry here and we will put you in touch with the most suited dealer to save you time.

Additional information

Battery System

, ,

Colour

Metallic Black, Metallic Gunmetal Grey, Metallic Silver, Metallic Burgundy, Metallic Forest Green, Metallic Navy Blue, Metallic Champagne, Metallic White

Product Weight524.00 kg
Product Dimensions524.00 kg
