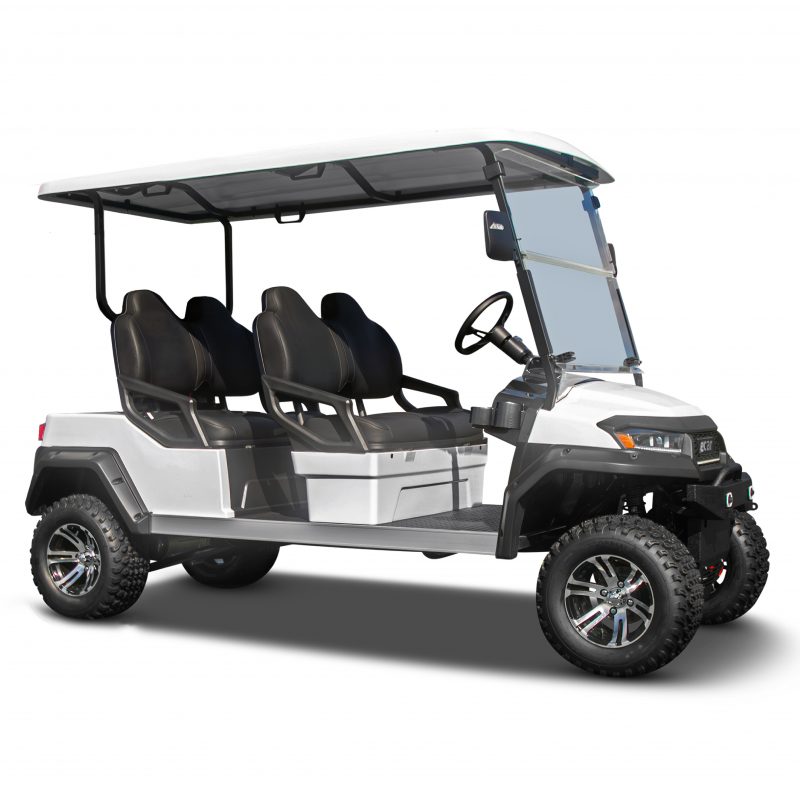

ECAR Compass 4G 4 Seat Lifted Golf Cart

From $18,990.00

The ECAR Compass 4G 4 Seat Lifted Golf Cart is built for adventure, featuring 22-inch off-road tyres, lifted suspension, and 4 forward-facing High-back Ergonomic Seats. Ideal for navigating rugged terrain with comfort and style, perfect for golf courses, resorts, or off-road trails.

Persons
Battery System
Motor
48V AC Brushless High Torque 4kW Motor
Controller
ECAR APEX 48V/450A ECAR AC Controller
Colours
Length (mm): 3220
Width (mm): 1360
Height (mm): 2050

Wheelbase overall length (centre of front hub to centre of rear hub): 2490mm

Wheelbase width between (centre of tread to centre of tread): Front 980mm, Rear 1060mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 5 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 2 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 4 x forward facing

Tare Weight – No Batteries (kgs): 549

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 25%

Hill Hold Performance (limit): 20% Grade

Minimum Ground Clearance: 160mm

Minimum Turning Radius: 5.25m

Rated Braking Distance: <6m

Avg. Energy Consumption per hour: 8.5-9.5kW/hr based on terrain & programmed controller parameters
Proprietary Controller: ECAR APEX 450A Controller, Upgraded 48V 450A System

Electric Motor: LT AC Synchronous (Induction) 48V/4kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified and Manufacturer Approved ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V High 500W Output Infotainment: 2 speaker stereo sound system with AM/FM Tuner, Bluetooth, Phone Screen Mirroring and USB playback and Bluetooth Phone calls. On-screen cart diagnostics, speedometer and mileage meter, Lithium State of Charge Meter. Reversing: HD Reversing Camera that shows up on the Dash touchscreen when reverse gear is selected
Dashboard: 10.1inch Touchscreen Cart Dash and Infotainment System

Interior Seating: Black High-back Ergonomic Seats

Interior Floor: Diamond pattern high-density Poly

Rear-View Mirror: 1 x Internal, 2 x Illuminated Side Mirrors
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clear coat

Roof Body Panel: Automotive engineering PP material injection mould with increased stiffness

Front Windshield: Safety Folding Acrylic Windshield – Suited for golf course use

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, LED Indicators, LED Rear Tail Lights, LED Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Swing Arm with MacPherson Independent suspension on all four wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Integrated rear Transaxle. Ratio: 16:1 (4 Seat)

Wheels & Tyres: 10” ‘Bulldog’ Alloy Rims with 205/65-10 High wall 4P Turf Tyre
Standard Included Accessories: Seat Covers, Tow Bar (rated to 350kg Towing, 50kg vertical ball weight);
Optional Extras: Grey/Beige Vinyl Seats; Marine Grade Rain Curtains
Length (mm): 3220
Width (mm): 1360
Height (mm): 2050

Wheelbase overall length (centre of front hub to centre of rear hub): 2490mm

Wheelbase width between (centre of tread to centre of tread): Front 980mm, Rear 1060mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 5 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 2 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 4 x forward facing

Tare Weight – No Batteries (kgs): 549

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 25%

Hill Hold Performance (limit): 20% Grade

Minimum Ground Clearance: 160mm

Minimum Turning Radius: 5.25m

Rated Braking Distance: <6m

Avg. Energy Consumption per hour: 8.5-9.5kW/hr based on terrain & programmed controller parameters
Proprietary Controller: ECAR APEX 450A Controller, Upgraded 48V 450A System

Electric Motor: LT AC Synchronous (Induction) 48V/4kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified and Manufacturer Approved ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V High 500W Output Infotainment: 2 speaker stereo sound system with AM/FM Tuner, Bluetooth, Phone Screen Mirroring and USB playback and Bluetooth Phone calls. On-screen cart diagnostics, speedometer and mileage meter, Lithium State of Charge Meter. Reversing: HD Reversing Camera that shows up on the Dash touchscreen when reverse gear is selected
Dashboard: 10.1inch Touchscreen Cart Dash and Infotainment System

Interior Seating: Black High-back Ergonomic Seats

Interior Floor: Diamond pattern high-density Poly

Rear-View Mirror: 1 x Internal, 2 x Illuminated Side Mirrors
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clear coat

Roof Body Panel: Automotive engineering PP material injection mould with increased stiffness

Front Windshield: Safety Folding Acrylic Windshield – Suited for golf course use

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, LED Indicators, LED Rear Tail Lights, LED Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Swing Arm with MacPherson Independent suspension on all four wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Integrated rear Transaxle. Ratio: 16:1 (4 Seat)

Wheels & Tyres: 10” ‘Bulldog’ Alloy Rims with 205/65-10 High wall 4P Turf Tyre
Standard Included Accessories: Seat Covers, Tow Bar (rated to 350kg Towing, 50kg vertical ball weight);
Optional Extras: Grey/Beige Vinyl Seats; Marine Grade Rain Curtains

Description

Discover the ECAR Compass 4G 4 Seat Lifted Golf Cart – Power and Comfort for Off-Road Adventures

Introducing the ECAR Compass 4G 4 Seat Lifted Golf Cart, built for those who seek adventure and rugged performance without sacrificing comfort. Equipped with 22-inch off-road tyres and 4 forward-facing seats, this lifted golf cart is perfect for navigating tough terrains, whether on golf courses, resorts, or off-road trails. The ECAR Compass 4G delivers a powerful, smooth ride while keeping all passengers comfortable.

Key Features:

  • 22-Inch Off-road Tyres for Superior Traction: The ECAR Compass 4G is fitted with large 22-inch off-road tyres on 12inch Mag Wheels, designed to tackle rough terrain with ease. Whether on dirt paths, gravel, or grass, these tyres offer outstanding grip and stability compared to a standard golf cart.
  • Lifted Suspension for Enhanced Ground Clearance: With its lifted suspension, this golf cart is built for off-road capability, offering extra ground clearance to handle uneven surfaces and obstacles.
  • Forward-Facing Passenger Comfort: The cart’s 4 forward-facing seats provide a comfortable and enjoyable ride for all passengers, making it ideal for extended journeys across varied terrain.
  • Rugged and Stylish Design: The ECAR Compass 4G boasts a modern, lifted design that pairs rugged off-road performance with sleek aesthetics, making it as eye-catching as it is functional.

Colours:

Personalise your ECAR Compass 4G 4 Seat Lifted Golf Cart with one of these stunning metallic finishes, all with matching painted roofs:

  • Metallic Black
  • Metallic Gunmetal Grey
  • Metallic Silver
  • Metallic Burgundy
  • Metallic Forest Green
  • Metallic Navy Blue
  • Metallic Champagne
  • Metallic White



Standard Inclusions:

  • Full Lighting Kit, Indicators & Horn
  • Large Internal Rear-view Mirror
  • Illuminated Side Rear-view Mirrors
  • 10.1 inch Touchscreen Infotainment System and live Vehicle Diagnostics
  • Reversing Camera
  • One-touch start/stop ignition button
  • Wireless remote ignition remotes (2)
  • Lockable Glove Box for both Driver and Passenger
  • On-Board Lithium RCM approved Lithium Battery Charger
  • Integrated Lithium Battery System. 100% certified and approved
  • 5.0kW AC Asynchronous Motor (effortless torque and power)
  • Dual USB Charging port – 1 x USB-C and 1 x USB-A port
  • Split Folding Windscreen
  • 10″ ‘Bulldog’ Mag Wheels with 205/65-10 High-wall Tyres
  • 2-Way Rear Facing Seat that folds out to a cargo tray
  • Metallic Paint Finish including the Roof
  • NEW High-back ergonomic Seats
  • Rear Sweater Basket



Why Choose the ECAR Compass 4G 4 Seat Lifted Golf Cart?

The ECAR Compass 4G 4 Seat Lifted Golf Cart is the ultimate choice for those who want both power and comfort in an off-road vehicle. Whether you’re navigating rugged trails, golf courses, or resorts, this cart combines off-road capability with a smooth, comfortable ride for all passengers. Built with durability and performance in mind, the Compass 4G is ready to handle whatever terrain comes your way.

The Compass Series of golf carts is a testament to ECAR’s commitment to quality and innovation. Almost 20 years later and our carts are still a preferred brand with thousands of golfers around the country. Now available to be fitted with an ECAR PRO-Li Battery system designed and manufactured by us; this cart will fulfil many requirements, for many years to come.

Contact your nearest dealer today for a quote on delivery or send us an enquiry here and we will put you in touch with the most suited dealer to save you time.

Additional information

Battery System

, ,

Colour

Metallic Black, Metallic Gunmetal Grey, Metallic Silver, Metallic Burgundy, Metallic Forest Green, Metallic Navy Blue, Metallic Champagne, Metallic White

Product Weight549.00 kg
Product Dimensions549.00 kg
