Description

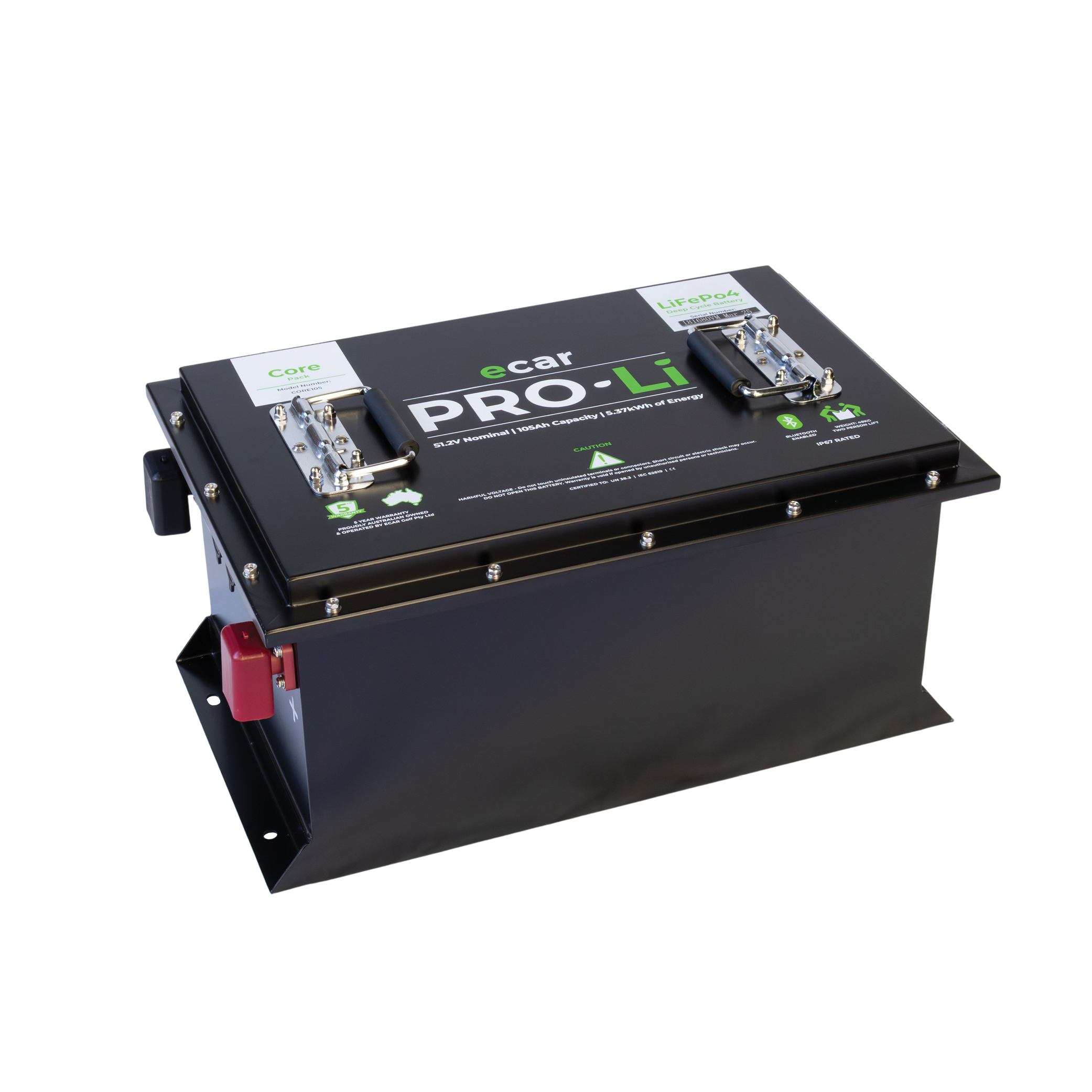

Introducing the all-new ECAR Core 105Ah PRO-Li Lithium Battery System
Designed to seamlessly integrate into any new or existing 48V model ECAR golf cart. The ECAR Core 105Ah PRO-Li Lithium Battery System package is suitable for both personal and commercial use in low-medium demand environments. This Core package is specifically designed to match the demands of our carts so you will be able to complete any golf game or task without worrying about reliability.
Using only our A-grade lithium cells you can expect up to a 10-year lifespan in ideal conditions. This equates to up to 3500 charge cycles. You will comfortably be able to charge your cart once a day for 365 days of the year and not be convinced you are reducing this lifespan.
Checking your battery can also be done with ease thanks to ECAR’s very own iOS and Android mobile application. All ECAR PRO-Li batteries are Bluetooth LOW-E enabled so you can easily check your cell health and battery vitals.
Our matched RCM-certified onboard lithium charger is directly connected to the Lithium battery BMS to provide pre and post-charge cycle safety checks. When the charging cord is plugged in and powered on, the charger will complete the first of these checks, begin charging until the optimal energy level is obtained in the cells and automatically turn itself off. Your battery will not continue charging, even with the power turned on, it is sitting in standby only.
Due to the direct BMS connection, we have developed a vacation mode. This will only ever be experienced if one of our PRO-Li battery systems if the cart is turned off and dormant for a number of weeks at a time. The battery BMS monitors the cells 24/7 365 days of the year. When this system detects the cells have depleted below a set voltage, it will send a wake-up signal to the charger to commence a pre-charge safety check and then a charge cycle. This feature is unique to ECAR PRO-Li batteries and even when your cart is not in use, your battery is maintaining its health.
Why choose the ECAR Core 105Ah PRO-Li Lithium Battery System:
- Ideally weighted for good cart balance and handling.
- Maintenance-free – No cleaning of battery acid. Routinely keep the box dust-free.
- Long life – up to 3500 Charge cycles in ideal conditions (25oC, >30% SOC).
- Matched to all 48V ECAR Golf Carts to ensure optimal reliability.
- Onboard safe charging – zero risk of fire or explosion with our matched charging system.
- Golf Course & Workplace compliant – ECAR Golf can provide letters of manufacturers approval for compliance.
- Fully Certified & Tested under IEC 62619:2022, UL1642 for guaranteed safety and UN38.4 & UN3480 for safe transport.
- Bluetooth-enabled iOS & Android mobile application for more thorough checking of the battery vitals. Approved technicians will also have level 2 access deeper into the BMS to assist in identifying any problems that arise over the life of the battery or if we release any new features in the next 10 years.
This ECAR Core 105Ah PRO-Li Lithium Battery System includes the following items:
- Core 105Ah Battery – Encased in a 3-stage powder coated steel IP67 certified box.
- Lithium PRO-Li Battery Charger – available in on/off board versions (dependent on the make & model of the cart this battery will be installed in).
- Bracket Kit – provided if applicable, depending on make & model of the cart this battery will be installed in.
- Communication Cable(s) – provided if applicable, depending on make & model of the cart this battery will be installed in.
- Dash/Voltage Meter (dependent on the make & model of the cart this battery will be installed in) – pre-programmed to correctly display the lithium battery information.
Lithium Battery Care & Maintenance:
- If cleaning the battery installation with a hose, only use a gentle stream to ensure you don’t externally bridge water between the positive and negative terminals located on the side of the battery. In the event this accidentally does happen, the battery BMS will detect a short circuit and attempt to protect the installation from failure. An error will log inside the battery. Batteries can contain a lot of energy so always take caution when working in or around them.
- Routinely check the battery terminals are tight. Loose battery terminals can cause heat and lead to a failure of the system.
- As a minimum, charge the battery after every full day’s use. This will not reduce the lifespan of the battery. By not maintaining the batteries state of charge to ideally above 50% (min. >30% SOC) you will potentially shorten the batteries life span.
The ECAR Core 105Ah PRO-Li Lithium Battery System Warranty:
The ECAR Core 105Ah PRO-Li Lithium Battery System Warranty periods are as follows, with unlimited kilometers of use, regardless of whether the cart is for Commercial or Personal use:
- 5 Years unlimited kilometres on the PRO-Li Lithium Battery (non-pro rata)
- 3 Years on the PRO-Li Lithium Charger
Any component of the ECAR Core 105Ah PRO-Li Lithium Battery System will be repaired and/or replaced based on a case-by-case basis, and the fault experienced. This will ensure your cart is back in working order as quickly as possible.
To view the full Battery Warranty Policy click here. Please note, to qualify for this warranty, you must have registered your ECAR Core 105Ah PRO-Li Lithium Battery System (including provided installation photographic evidence) through the Authorised Dealer you originally purchased it from.
