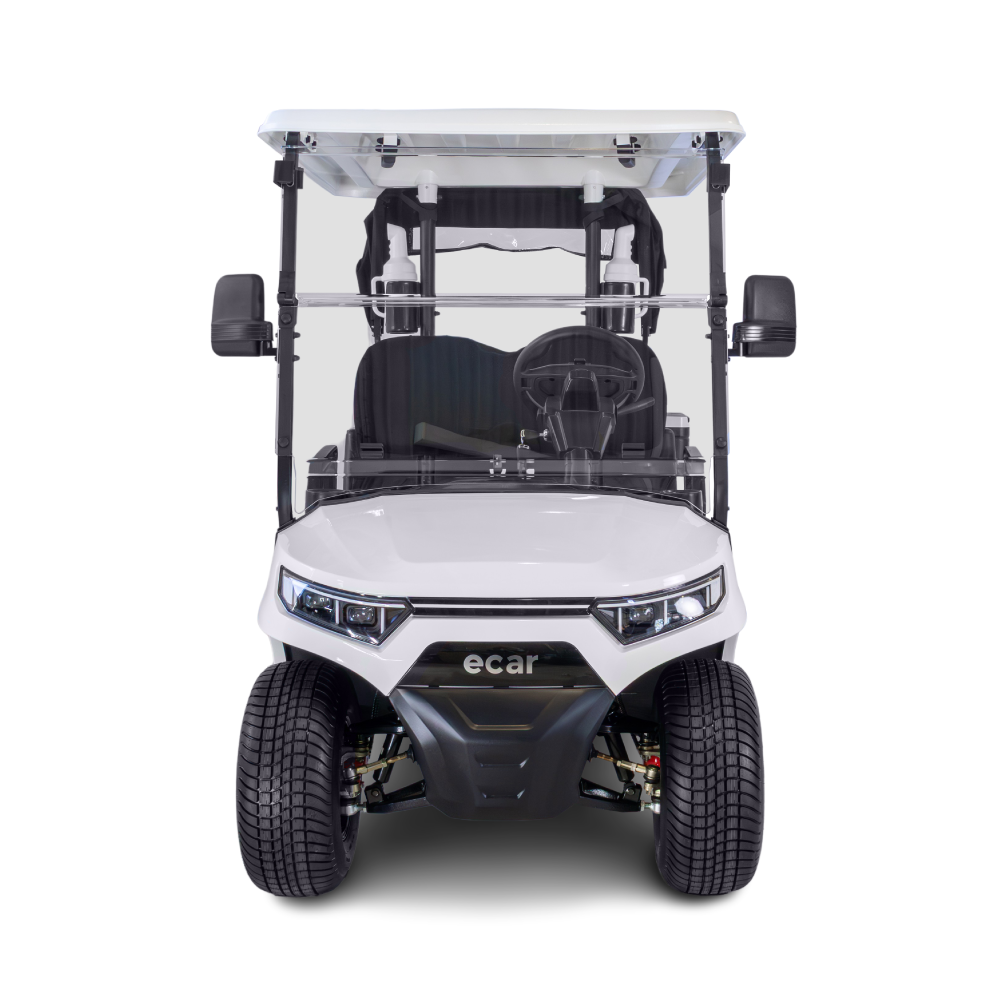

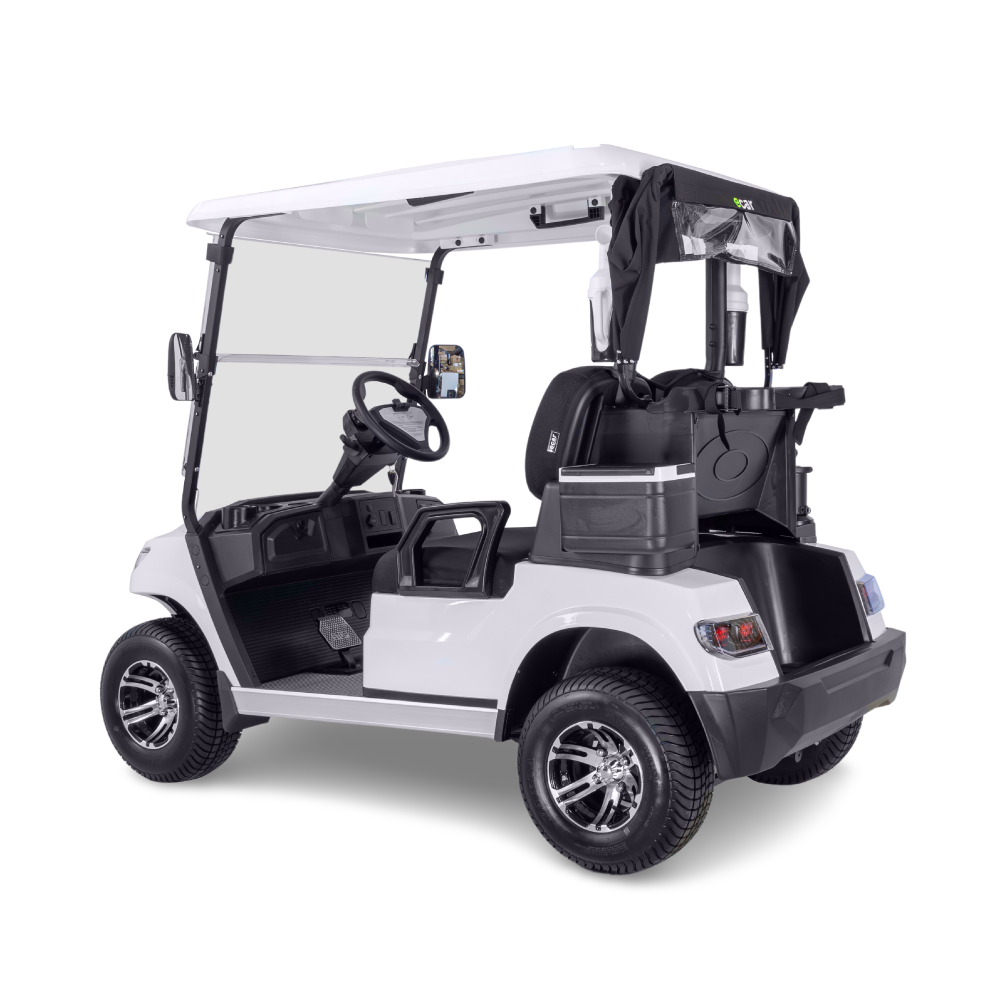

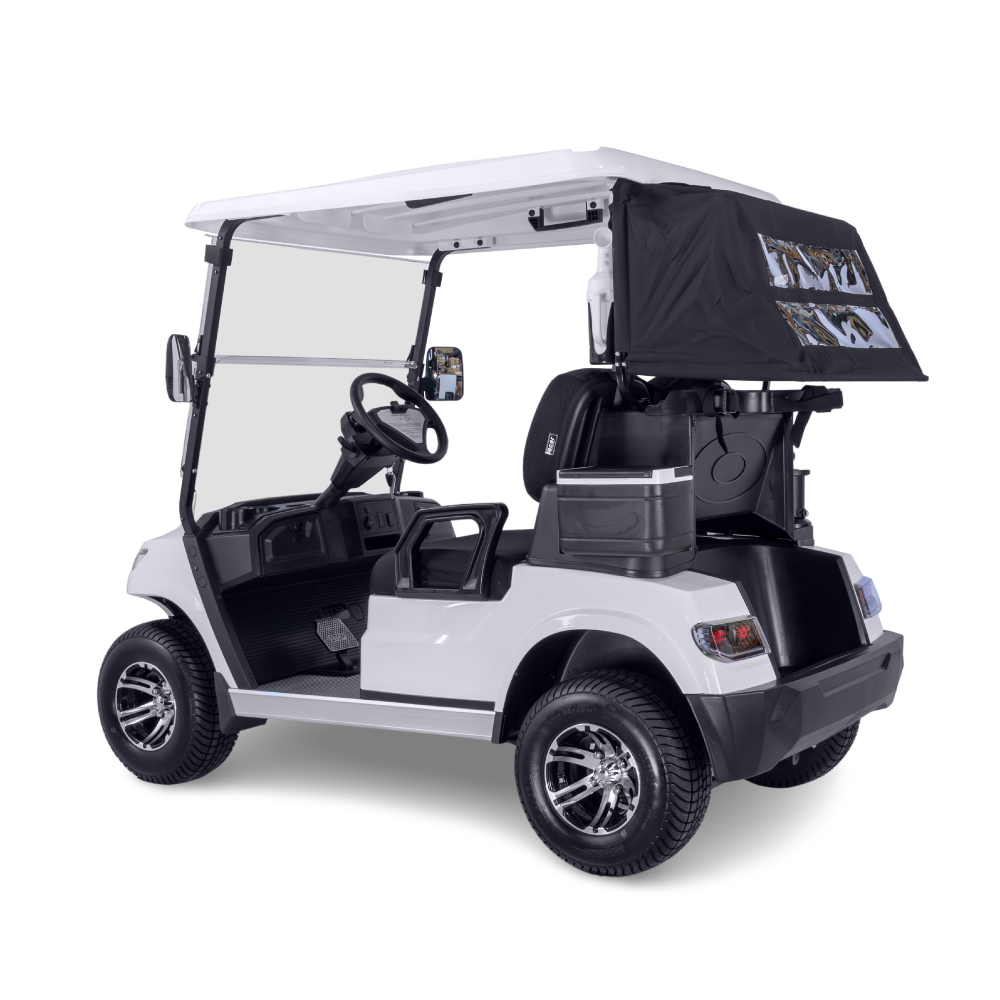

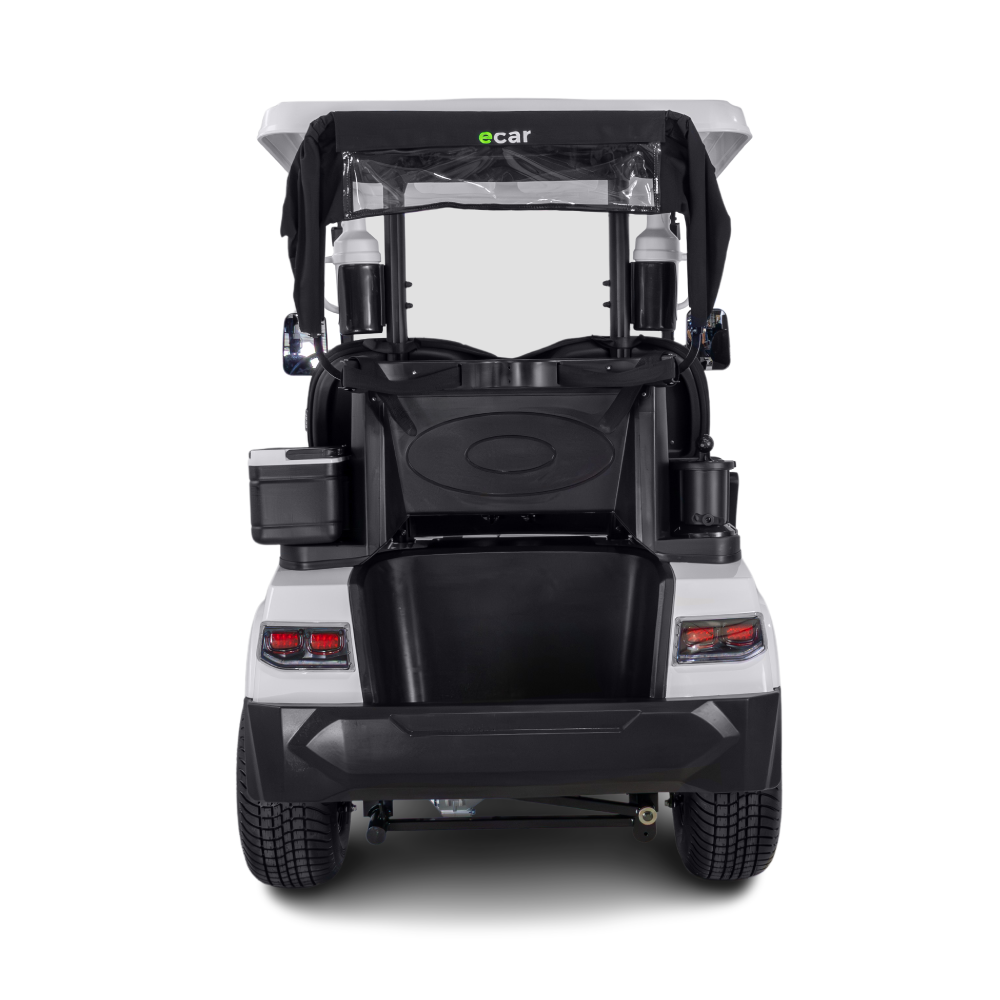

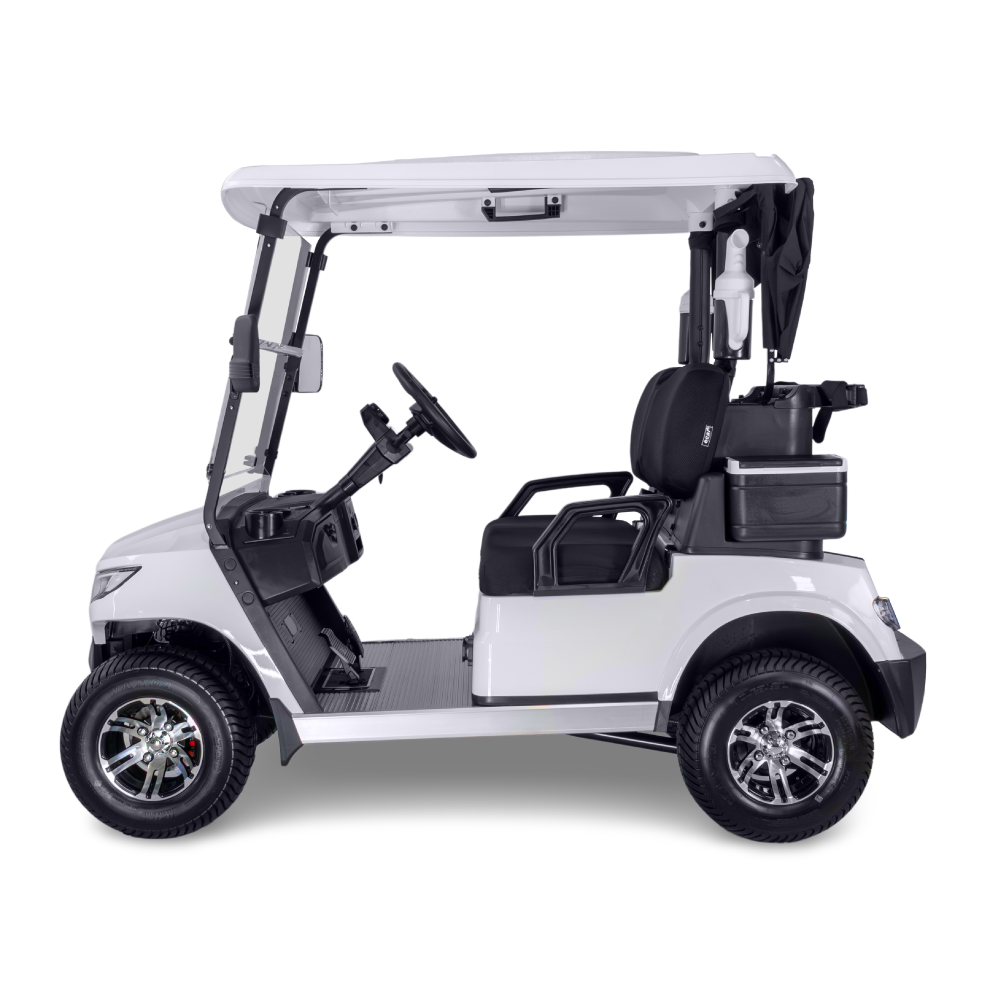

ECAR Magnum 2 Seat Golf Cart

From $13,990.00

The ECAR Magnum 2 Seat Golf Cart offers a perfect blend of power, style, and comfort. Designed with a high-performance AC motor and sleek, modern features, this cart ensures a smooth and reliable ride on golf courses, in resorts, or within communities. This package includes all of your golding essentials.

Best suited for those who value performance, style, and a premium driving experience.

Persons
Battery System
Motor
48V AC Brushless High Torque 4kW Motor
Controller
48V/350A ECAR AC Controller
Colours
Length (mm): 2450
Width (mm): 1230
Height (mm): 1850

Wheelbase overall length (center of front hub to center of rear hub): 1660mm

Wheelbase width between (center of tread to center of tread): Front is 905mm, Rear is 1000mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 2

Tare Weight – No Batteries (kgs): 342

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 30%

Hill Hold Performance (limit): 25% Grade

Minimum Ground Clearance (mm): Approximately 120mm

Minimum Turning Radius: 3.2m

Rated Braking Distance: <5m

Avg. Energy Consumption per 100km: 4.0-8.0kW/hr based on terrain and programmed parameters of the controller
Proprietary Controller: ECAR 350A Controller by SEVCON, 48V 350A System

Electric Motor: LT AC Synchronous (Induction) 48V/4kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified to Australian Standards and Factory Installed ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V Output 300W Output
Dashboard: Moulded instrument panel, digital vehicle odometer/speedometer showing speed & accurate Lithium Battery SOC (ECAR only as our battery systems are factory designed and installed systems)

Interior Seating: Black marine grade vinyl seats. Commercial rated. Standard Seat Covers included as standard for low heat transfer

Interior Floor: Alloy corrugated floor. Optional Rubber floor mat is available as an additional accessory (Consult authorised dealer)

Rear-View Mirror: Interior Convex rear-view Mirror + L/RHS rear-view Mirrors.
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clearcoat

Roof Body Panel: Automotive engineering PP material injection mould with Aluminium side skirts

Front Shield and Wiper: Safety Folding Acrylic Windshield – Suited for golf course use. (No wiper available on this model cart)

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, Indicators, Rear Tail Lights, Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Dual Swing Arm with MacPherson Independent suspension; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Integrated rear Transaxle with coil spring + hydraulic shock absorbers. Transaxle Ratio: 12.31:1 (2 Seat)

Wheels & Tyres: 10” ‘Bulldog’ Alloy Rims with 205/65-10 High wall 4P Turf Tyre
Standard Included Accessories: Full set of Premium Mesh washable Seat Covers.
Optional Extras: 5kW Motor Upgrade, Grey/Beige Vinyl Seats, Tow Bar, Marine Grade Rain Curtains, Steel Bull Bar, Outdoor Weather Storage Cover. Note these extras are special order only and will incur additional lead time.
Length (mm): 2450
Width (mm): 1230
Height (mm): 1850

Wheelbase overall length (center of front hub to center of rear hub): 1660mm

Wheelbase width between (center of tread to center of tread): Front is 905mm, Rear is 1000mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 2

Tare Weight – No Batteries (kgs): 342

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 30%

Hill Hold Performance (limit): 25% Grade

Minimum Ground Clearance (mm): Approximately 120mm

Minimum Turning Radius: 3.2m

Rated Braking Distance: <5m

Avg. Energy Consumption per 100km: 4.0-8.0kW/hr based on terrain and programmed parameters of the controller
Proprietary Controller: ECAR 350A Controller by SEVCON, 48V 350A System

Electric Motor: LT AC Synchronous (Induction) 48V/4kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified to Australian Standards and Factory Installed ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V Output 300W Output
Dashboard: Moulded instrument panel, digital vehicle odometer/speedometer showing speed & accurate Lithium Battery SOC (ECAR only as our battery systems are factory designed and installed systems)

Interior Seating: Black marine grade vinyl seats. Commercial rated. Standard Seat Covers included as standard for low heat transfer

Interior Floor: Alloy corrugated floor. Optional Rubber floor mat is available as an additional accessory (Consult authorised dealer)

Rear-View Mirror: Interior Convex rear-view Mirror + L/RHS rear-view Mirrors.
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clearcoat

Roof Body Panel: Automotive engineering PP material injection mould with Aluminium side skirts

Front Shield and Wiper: Safety Folding Acrylic Windshield – Suited for golf course use. (No wiper available on this model cart)

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, Indicators, Rear Tail Lights, Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Dual Swing Arm with MacPherson Independent suspension; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Integrated rear Transaxle with coil spring + hydraulic shock absorbers. Transaxle Ratio: 12.31:1 (2 Seat)

Wheels & Tyres: 10” ‘Bulldog’ Alloy Rims with 205/65-10 High wall 4P Turf Tyre
Standard Included Accessories: Full set of Premium Mesh washable Seat Covers.
Optional Extras: 5kW Motor Upgrade, Grey/Beige Vinyl Seats, Tow Bar, Marine Grade Rain Curtains, Steel Bull Bar, Outdoor Weather Storage Cover. Note these extras are special order only and will incur additional lead time.

Description

Discover the ECAR Magnum 2 Seat Golf Cart – Power and Style Combined

Introducing the ECAR Magnum 2 Seat Golf Cart, a premium electric vehicle designed for those who seek a combination of performance, style, and comfort. This cart is perfect for both the golf course and general transport around resorts, communities, and other facilities. The Magnum offers robust power and smooth handling, making it an ideal choice for any environment. This cart is perfect for the golfer that values quality at an affordable price.

Key Features:

  • Powerful Performance: The ECAR Magnum 2 Seat Golf Cart is powered by a high-performance AC motor, delivering excellent acceleration and consistent handling. With a modern ECAR controller, this cart ensures reliable performance across various terrains, whether you’re on the fairway or navigating through your community. With our controller we have the ability to tailor the carts driving feel for each customer prior to delivery or in a service.

  • Comfortable and Stylish Design: The Magnum’s design emphasises both comfort and style. It features a seat capable of fitting 2 adults with ample legroom, ensuring a comfortable ride for both driver and passenger. The cart is equipped with a sleek dashboard, lockable glove boxes, centre storage console and a full colour matched canopy roof, providing protection from the elements while enhancing the vehicle’s aesthetic appeal.

  • Reliable and Low Maintenance: Built with ECAR’s commitment to quality, the ECAR Magnum 2 Seat Golf Cart is designed for low maintenance and long-term reliability. Its electric powertrain is engineered to provide consistent, dependable operation, ensuring you can enjoy a smooth and trouble-free ride. ECAR has been in the business of designing and selling our cart for more than 20 years, so we can be trusted to know what we are doing.

Colours:
Personalise your ECAR Magnum 2 Seat Golf Cart to fit your style. All standard colours are metallic paint finishes with matching painted roof.

  • Metallic Black
  • Metallic Gunmetal Grey
  • Metallic Silver
  • Metallic Burgundy
  • Metallic Forest Green
  • Metallic Navy Blue
  • Metallic Champagne
  • Metallic White



Standard Inclusions on a ECAR Magnum 2 Seat Golf Cart:

  • Full LED Lighting Kit, Indicators & Horn
  • Large internal rear-view mirror (dealer specific inclusion)
  • ECAR OEM PRO-Li Lithium Battery System (100% Factory fitted and Certified to Australian Standards)
  • On-Board ECAR PRO-Li RCM Approved Lithium Battery Charger
  • Retractable 2-point Lap Seat Belts
  • 2x Side Wing Mirrors
  • Foldable/Hinged (new design) Windscreen
  • ECAR Rear Golf Bag Canopy
  • 2x Sand Bottles with holders
  • Club & Ball Washer
  • Poly Color matched painted roof (ECAR exclusive)
  • Metallic Paint Finish is standard
  • Rear Sweater Basket
  • Golf Bag Holder suited for 2 Large Golf Bags.



Optional Extras (Additional Costs Apply):

  • Custom All-Weather Enclosures (dealer supplied and installed for the most accurate fit)
  • Premium Upholstery Options (dealer supplied and installed luxury seat covers for additional padding and style)



Why Choose the ECAR Magnum 2 Seat Golf Cart?

The ECAR Magnum 2 Seat Golf Cart is more than just a golf cart; it’s a symbol of power, style, and eco-friendly innovation. Whether you’re navigating the golf course, your community, or a resort, the Magnum offers unmatched performance, comfort, and durability. Backed by ECAR’s industry-leading warranty that standard above the rest and our trustworthy, honest support, this model ensures a reliable and enjoyable experience for years to come.

The Magnum Series of golf carts is the best selling ECAR Series released and remains a popular choice amongst those who seek style and comfort in an affordable cart. Now available and fitted with a factory standard ECAR PRO-Li Battery system designed and manufactured by us; this cart will withstand anything you throw at it as it’s built to provide reliable performance for many years to come.

Contact your nearest dealer today for a quote on delivery or send us an enquiry here and we will put you in touch with the most suited dealer to save you time.

Additional information

Shipping Weight400 kg
Shipping Dimensions250 × 1300 × 1900 cm
Battery System

, ,

Colour

Metallic Black, Metallic Gunmetal Grey, Metallic Silver, Metallic Burgundy, Metallic Forest Green, Metallic Navy Blue, Metallic Champagne, Metallic White

Product Weight342 kg
Product Dimensions0.00 kg
