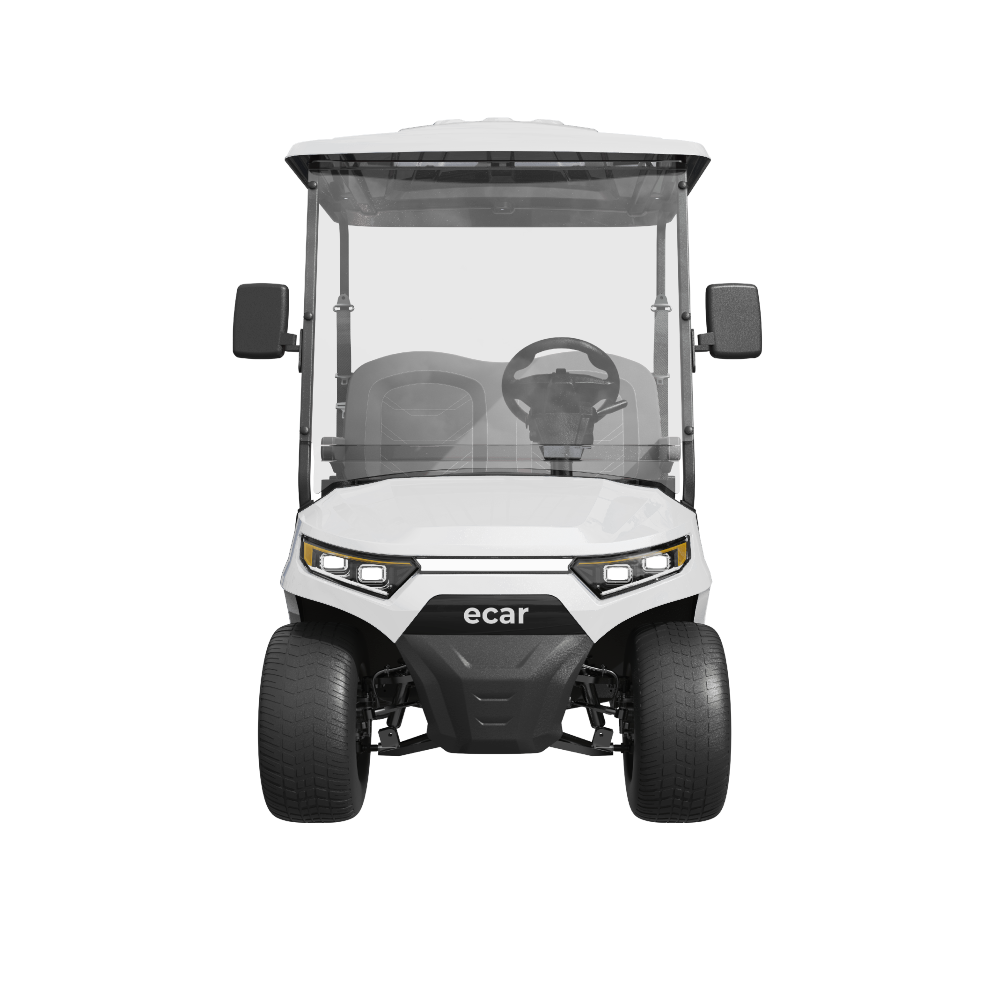

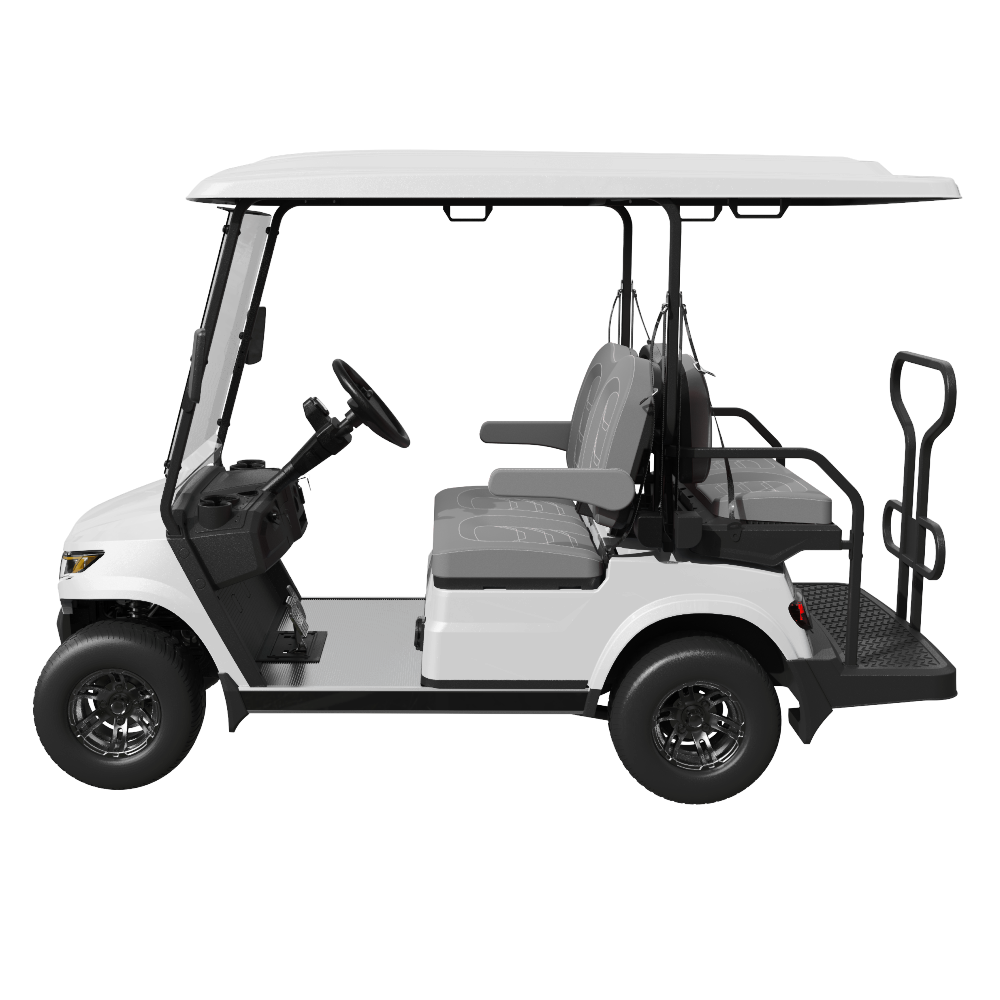

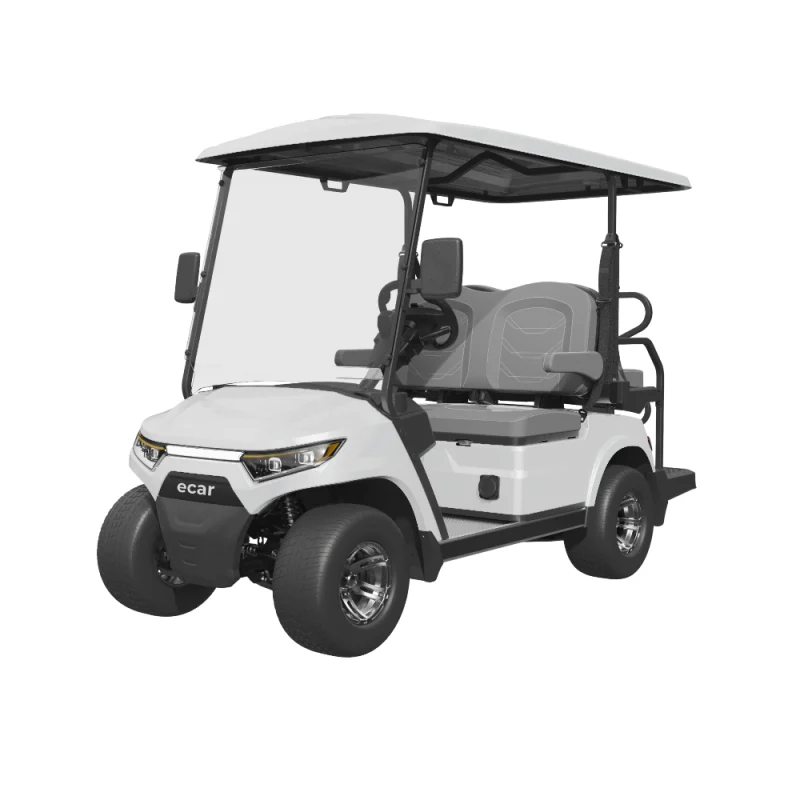

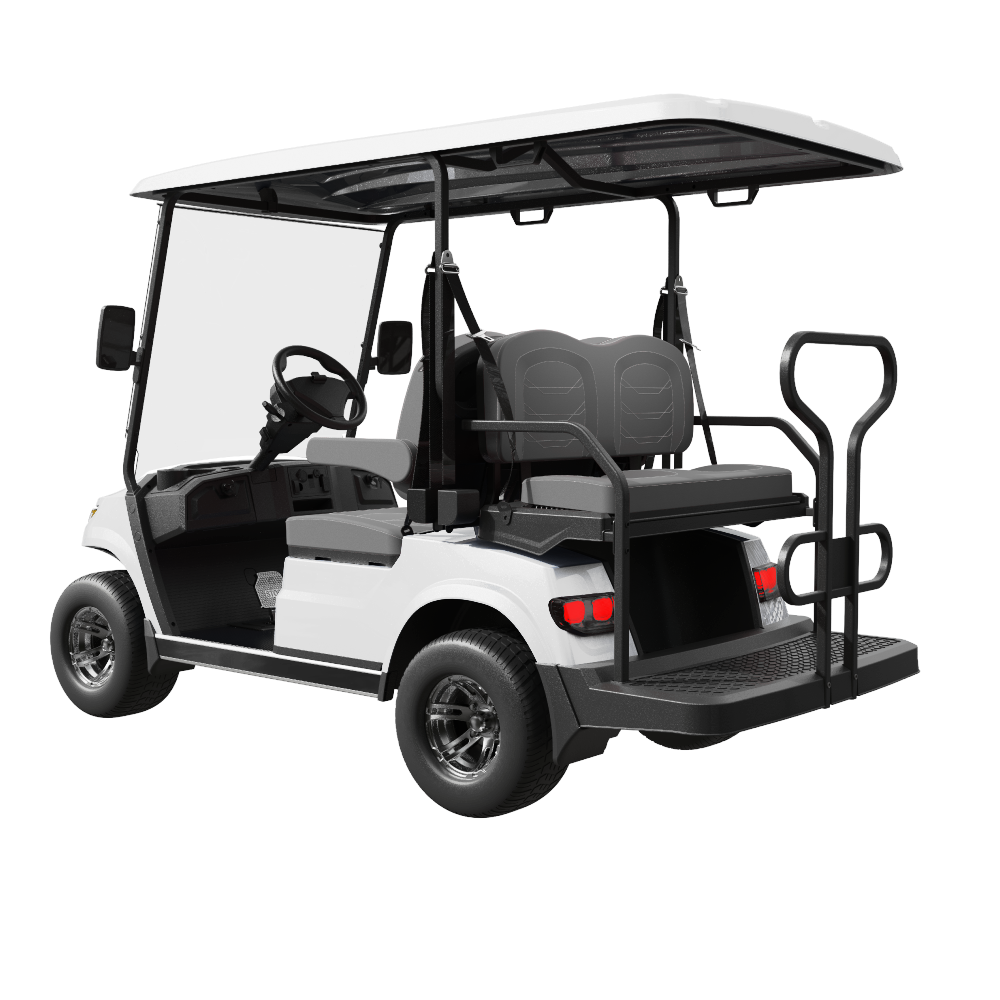

ECAR Magnum 2+2 4 Seat Golf Cart

From $16,490.00

The ECAR Magnum 2+2 4 Seat Golf Cart combines practical design with reliable performance, offering spacious seating for four adults. Perfect for both work and leisure, this cart is ideal for golf courses, resorts, businesses, developments and community transport.

Those who need a stylish and dependable vehicle for transporting multiple passengers should always consider this model ECAR Golf Cart.

Persons
Battery System
Motor
48V AC Brushless High Torque 4kW Motor
Controller
48V/350A ECAR AC Controller
Colours
SKU MAGNUM2+2 Categories , Tags , ,
Length (mm): 2775 (including bull bar)
Width (mm): 1230
Height (mm): 1910

Wheelbase overall length (center of front hub to center of rear hub): 1660mm

Wheelbase width between (center of tread to center of tread): Front is 905mm, Rear is 1000mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 4

Tare Weight – No Batteries (kgs): 399

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 25%

Hill Hold Performance (limit): 20% Grade

Minimum Ground Clearance (mm): Approximately 145mm

Minimum Turning Radius: 3.2m

Rated Braking Distance: <5m

Avg. Energy Consumption per 100km: 4.0-8.0kW/hr based on terrain and programmed parameters of the controller
Proprietary Controller: ECAR 350A Controller by SEVCON, 48V 350A System

Electric Motor: LT AC Synchronous (Induction) 48V/4kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified to Australian Standards and Factory Installed ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V Output 300W Output
Dashboard: Moulded instrument panel, digital vehicle odometer/speedometer showing speed & accurate Lithium Battery SOC (ECAR only as our battery systems are factory designed and installed systems)

Interior Seating: Grey marine grade vinyl mid-back seats with folding armrests. Commercial rated.

Interior Floor: Alloy corrugated floor. Optional Rubber floor mat is available as an additional accessory (Consult authorised dealer)

Rear-View Mirror: Interior Convex rear-view Mirror + L/RHS rear-view Mirrors.
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clearcoat

Roof Body Panel: Automotive engineering PP material injection mould with Aluminium side skirts

Front Shield and Wiper: Safety Folding Acrylic Windshield – Suited for golf course use. (No wiper available on this model cart)

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, Indicators, Rear Tail Lights, Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Dual Swing Arm with MacPherson Independent suspension on all four wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Integrated rear Transaxle with coil spring + hydraulic shock absorbers. Transaxle Ratio: 12.31:1 (2 Seat chassis length)

Wheels & Tyres: 10” ‘Bulldog’ Alloy Rims with 205/65-10 High wall 4P Turf Tyre
Standard Included Accessories: 2-way OR ECAR exclusive 3-way rear facing seat, Steel Bull Bar

Commercial Standard Included Accessories: 2-way rear facing seat, Steel Bull Bar, Tow Bar
Optional Extras: 5kW Motor Upgrade; Black/Beige Vinyl Seats; Marine Grade Rain Curtains, Outdoor Weather Storage Cover. Note these extras are special order only and will incur additional lead time.
Length (mm): 2775 (including bull bar)
Width (mm): 1230
Height (mm): 1910

Wheelbase overall length (center of front hub to center of rear hub): 1660mm

Wheelbase width between (center of tread to center of tread): Front is 905mm, Rear is 1000mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 4

Tare Weight – No Batteries (kgs): 399

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 25%

Hill Hold Performance (limit): 20% Grade

Minimum Ground Clearance (mm): Approximately 145mm

Minimum Turning Radius: 3.2m

Rated Braking Distance: <5m

Avg. Energy Consumption per 100km: 4.0-8.0kW/hr based on terrain and programmed parameters of the controller
Proprietary Controller: ECAR 350A Controller by SEVCON, 48V 350A System

Electric Motor: LT AC Synchronous (Induction) 48V/4kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified to Australian Standards and Factory Installed ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V Output 300W Output
Dashboard: Moulded instrument panel, digital vehicle odometer/speedometer showing speed & accurate Lithium Battery SOC (ECAR only as our battery systems are factory designed and installed systems)

Interior Seating: Grey marine grade vinyl mid-back seats with folding armrests. Commercial rated.

Interior Floor: Alloy corrugated floor. Optional Rubber floor mat is available as an additional accessory (Consult authorised dealer)

Rear-View Mirror: Interior Convex rear-view Mirror + L/RHS rear-view Mirrors.
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clearcoat

Roof Body Panel: Automotive engineering PP material injection mould with Aluminium side skirts

Front Shield and Wiper: Safety Folding Acrylic Windshield – Suited for golf course use. (No wiper available on this model cart)

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, Indicators, Rear Tail Lights, Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Dual Swing Arm with MacPherson Independent suspension on all four wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Integrated rear Transaxle with coil spring + hydraulic shock absorbers. Transaxle Ratio: 12.31:1 (2 Seat chassis length)

Wheels & Tyres: 10” ‘Bulldog’ Alloy Rims with 205/65-10 High wall 4P Turf Tyre
Standard Included Accessories: 2-way OR ECAR exclusive 3-way rear facing seat, Steel Bull Bar

Commercial Standard Included Accessories: 2-way rear facing seat, Steel Bull Bar, Tow Bar
Optional Extras: 5kW Motor Upgrade; Black/Beige Vinyl Seats; Marine Grade Rain Curtains, Outdoor Weather Storage Cover. Note these extras are special order only and will incur additional lead time.

Description

Discover the ECAR Magnum 2+2 4 Seat Golf Cart – Style, Comfort, and Reliability

Introducing the ECAR Magnum 2+2 4 Seat Golf Cart, a premium vehicle that offers a perfect blend of style, comfort, and reliability. Designed for both work and leisure, this cart is ideal for navigating golf courses, resorts, and communities, providing a smooth and enjoyable ride every time. It is a popular model for Developments, Caravan Parks, Large Properties and Security to name a few as the rear seat can be ordered in 2 different configurations.

Key Features:

  • Sleek and Modern Design: The ECAR Magnum 2+2 4 Seat Golf Cart is crafted with a focus on style and comfort. Its modern design, coupled with spacious seating for four, ensures a premium experience for both the driver and passengers.
  • Reliable Performance: Powered by a high-performance motor, this cart delivers consistent handling and reliable operation across various terrains. Whether you’re on the course or navigating through a community, the Magnum provides smooth and dependable performance.
  • Durable Construction: Built with high-quality materials, the Magnum is designed to withstand daily use, ensuring long-lasting durability and reliability.
  • Multi-Purpose Rear Facing Seat: The intelligently designed rear facing seat can be ordered in 2 different specifications – Commercial/Passenger Use, the rear seat folds out to a cargo tray. Golfer/Passenger, the rear seat fold out to a cargo tray as well as lifts up to fit 2 golf bags (ECAR exclusive design).
  • Comfortable Seat Design: New in 2025 this model comes standard with luxury mid-back seating with folding armrests for increase comfort and styling. ECAR exclusive using commercial marine grade vinyl.

Colours:
Personalise your ECAR Magnum 2+2 4 Seat Golf Cart to fit your style. All standard colours are metallic paint finishes with matching painted roof.

  • Metallic Black
  • Metallic Gunmetal Grey
  • Metallic Silver
  • Metallic Burgundy
  • Metallic Forest Green
  • Metallic Navy Blue
  • Metallic Champagne
  • Metallic White



Standard Inclusions:

  • Digital Speedometer, State of Charge Meter, and Odometer
  • ECAR OEM PRO-Li Lithium Battery System (100% Factory fitted and Certified to Australian Standards)
  • On-Board ECAR PRO-Li RCM Approved Lithium Battery Charger
  • Sleek, Modern Dashboard
  • Front and Rear Lighting for Safety
  • Durable Marine Grade Upholstery with Folding Armrests
  • Multi-Purpose Rear Facing Seat
  • Retractable 3-point Seat Belts
  • 2x Side Wing Mirrors
  • Foldable/Hinged (new design) Windscreen
  • Poly Color matched painted full length Roof (ECAR exclusive)
  • Metallic Paint Finish is standard



Why Choose the ECAR Magnum 2+2 4 Seat Golf Cart?

The ECAR Magnum 2+2 – 4 Seat Golf Cart is best suited for those who appreciate a combination of style and reliable performance in their transport. Whether you’re cruising around a golf course, resort, or community, this cart offers the comfort, durability, and smooth ride you need.

The Magnum Series of golf carts is the best selling ECAR Series released and remains a popular choice amongst those who seek style and comfort in an affordable cart. Now available and fitted with a factory standard ECAR PRO-Li Battery system designed and manufactured by us; this cart will withstand anything you throw at it as it’s built to provide reliable performance for many years to come.

Contact your nearest dealer today for a quote on delivery or send us an enquiry here and we will put you in touch with the most suited dealer to save you time.

Additional information

Battery System

, ,

Colour

Metallic Black, Metallic Gunmetal Grey, Metallic Silver, Metallic Burgundy, Metallic Forest Green, Metallic Navy Blue, Metallic Champagne, Metallic White
