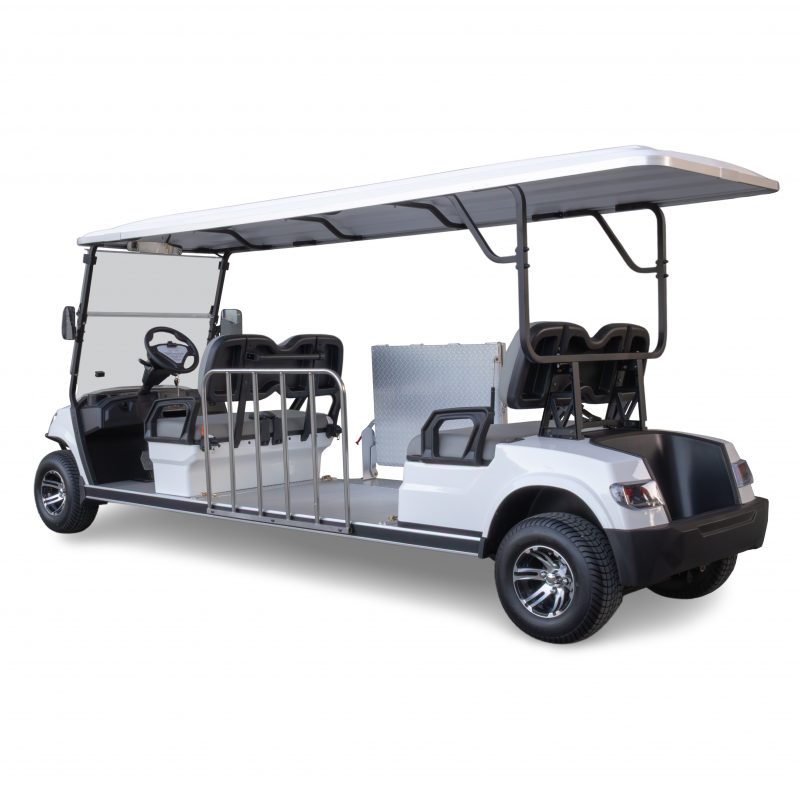

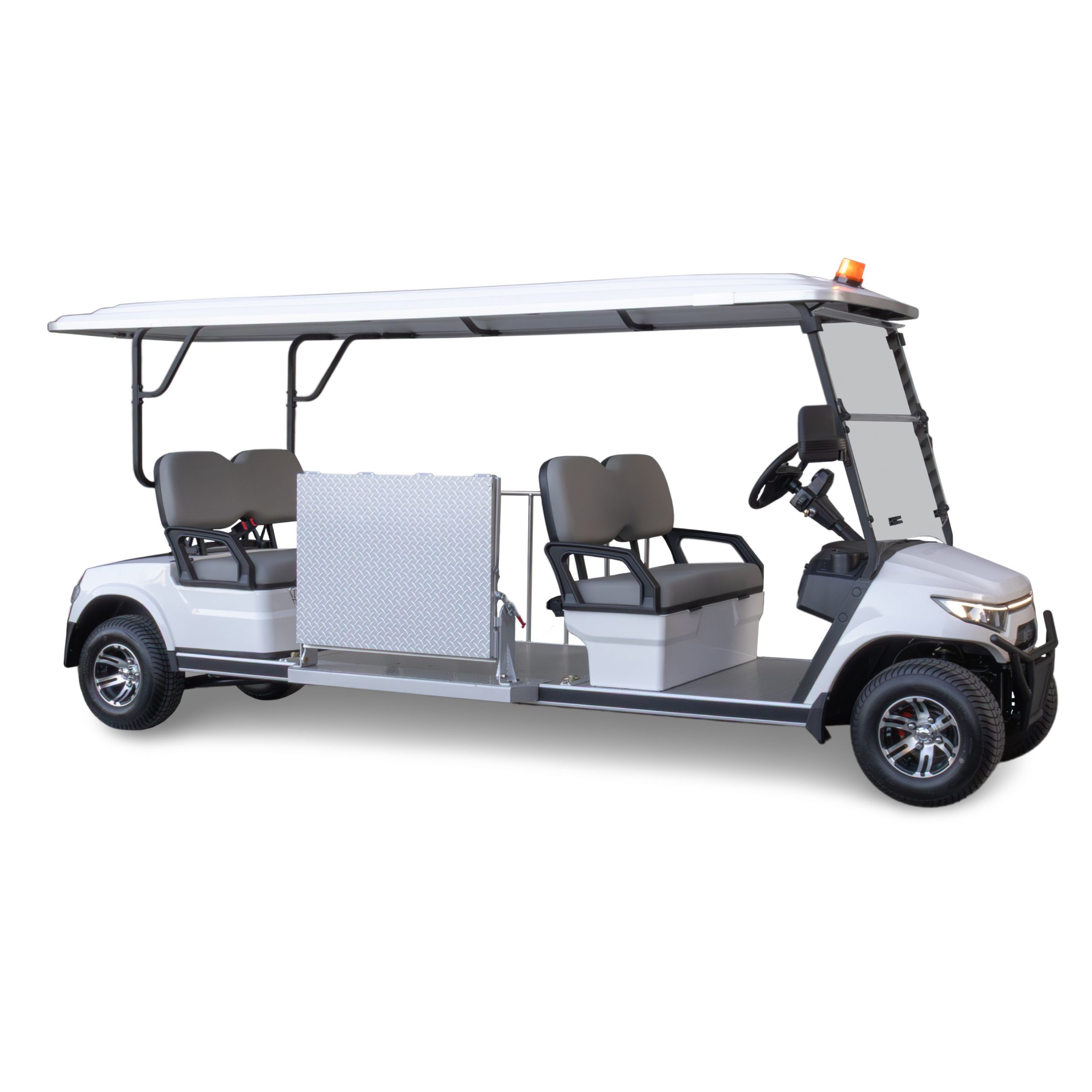

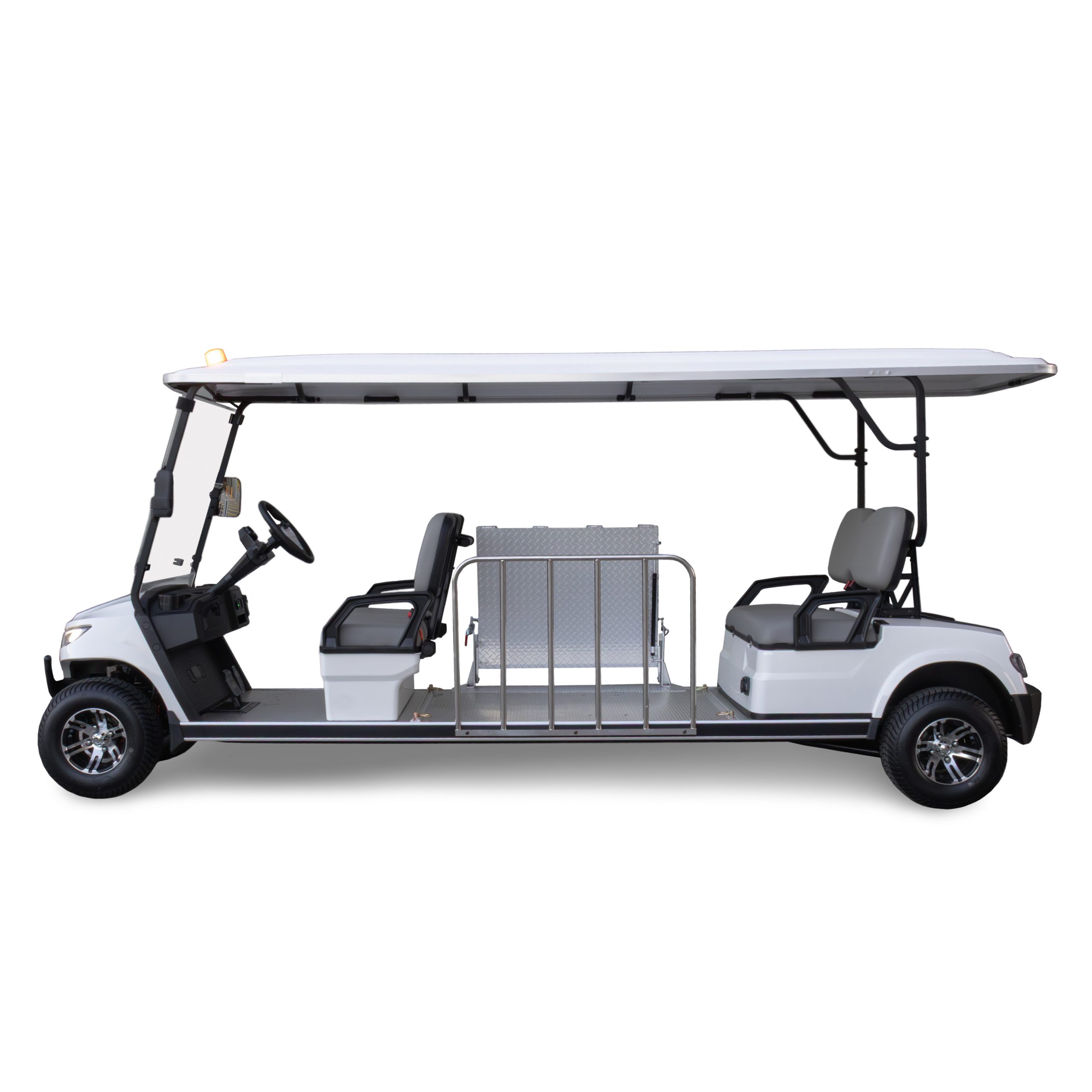

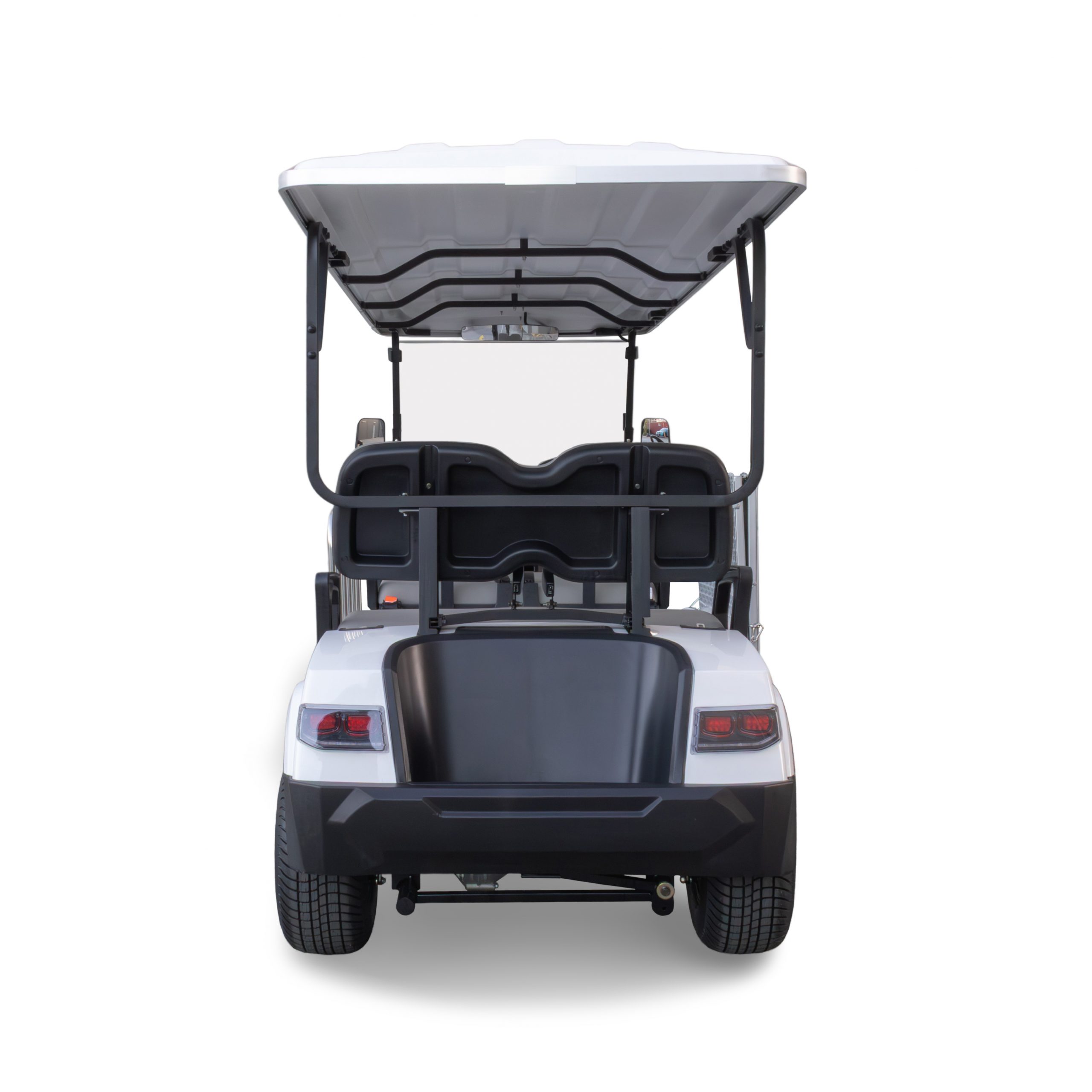

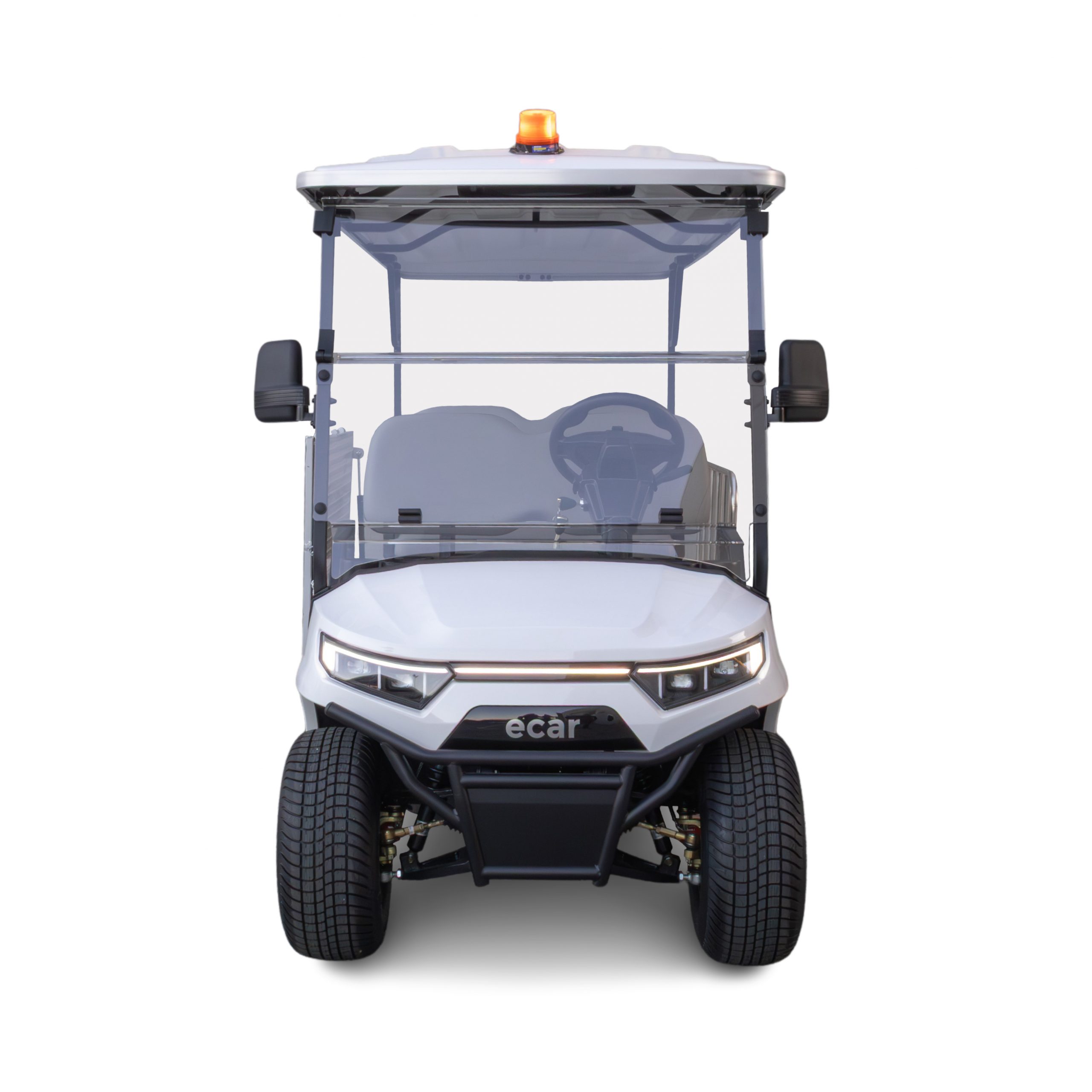

ECAR Magnum 4AT Wheelchair Golf Cart

From $22,790.00

The ECAR Magnum 4AT Wheelchair Golf Cart is a modern accessible transport electric golf cart. Featuring a powder coated ramp with gas assist lift, tie down points and secure side fence, this model golf cart is a safe solution when transporting wheelchair personnel.

Perfect for schools, public entertainment facilities, resorts, stadiums and airports. An airport specific model can be supplied for indoor terminal use.

Persons
Battery System
Motor
48V AC Brushless High Torque 4kW Motor
Controller
48V/350A ECAR AC Controller
Colours
Length (mm): 4352 (including bullbar)
Width (mm): 1320 (widest point)
Height (mm): 1930

Wheelbase overall length (center of front hub to center of rear hub): 3310mm

Wheelbase width between (center of tread to center of tread): Front 895mm, Rear 1000mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 5 (1 x Driver, 3 x Passengers and 1 x Wheelchair)

Tare Weight – No Batteries (kgs): 545

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 20%

Hill Hold Performance (limit): 15% Grade

Minimum Ground Clearance (mm): Approximately 120mm

Minimum Turning Radius: 5.8m

Rated Braking Distance: <6m

Avg. Energy Consumption per 100km: 8.0-9.5kW/hr based on terrain and programmed parameters of the controller
Proprietary Controller: ECAR 350A Controller by SEVCON, 48V 350A System

Electric Motor: LT AC Synchronous (Induction) 48V/4kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified to Australian Standards and Factory Installed ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V Output 300W Output
Dashboard: Moulded instrument panel, digital vehicle odometer/speedometer showing speed & accurate Lithium Battery SOC (ECAR only as our battery systems are factory designed and installed systems)

Interior Seating: Grey marine grade vinyl mid-back seats with folding armrests. Commercial rated.

Interior Floor: Alloy corrugated floor with wheelchair zone tie-down points

Rear-View Mirror: Interior Convex rear-view Mirror + L/RHS rear-view Mirrors.
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clearcoat

Roof Body Panel: Automotive engineering PP material injection mould with Aluminium side skirts

Front Shield and Wiper: Safety Folding Acrylic Windshield – Suited for golf course use

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, Indicators, Rear Tail Lights, Brake & Hazard Lights, Horn & Reversing Buzzer. Rooftop Safety Light installed by specific dealers (subject to dealer inclusions but this lights can be installed on this model)

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Dual Swing Arm with MacPherson Independent suspension on both front wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Integrated rear Transaxle with coil spring + cylinder hydraulic shock absorbers. Ratio: 16.1 (long chassis)

Wheels & Tyres: 10” ‘Bulldog’ Alloy Rims with 205/65-10 High wall 4P Turf Tyre
Standard Included Accessories: Steel Bull Bar, Tow Bar; Folding Wheelchair Ramp; Wheelchair tie-down points
Optional Extras: 5kW Motor Upgrade; Black/Beige Vinyl Seats; Marine Grade Rain Curtains. Note these extras are special order only and will incur additional lead time.
Length (mm): 4352 (including bullbar)
Width (mm): 1320 (widest point)
Height (mm): 1930

Wheelbase overall length (center of front hub to center of rear hub): 3310mm

Wheelbase width between (center of tread to center of tread): Front 895mm, Rear 1000mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 5 (1 x Driver, 3 x Passengers and 1 x Wheelchair)

Tare Weight – No Batteries (kgs): 545

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 20%

Hill Hold Performance (limit): 15% Grade

Minimum Ground Clearance (mm): Approximately 120mm

Minimum Turning Radius: 5.8m

Rated Braking Distance: <6m

Avg. Energy Consumption per 100km: 8.0-9.5kW/hr based on terrain and programmed parameters of the controller
Proprietary Controller: ECAR 350A Controller by SEVCON, 48V 350A System

Electric Motor: LT AC Synchronous (Induction) 48V/4kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified to Australian Standards and Factory Installed ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V Output 300W Output
Dashboard: Moulded instrument panel, digital vehicle odometer/speedometer showing speed & accurate Lithium Battery SOC (ECAR only as our battery systems are factory designed and installed systems)

Interior Seating: Grey marine grade vinyl mid-back seats with folding armrests. Commercial rated.

Interior Floor: Alloy corrugated floor with wheelchair zone tie-down points

Rear-View Mirror: Interior Convex rear-view Mirror + L/RHS rear-view Mirrors.
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clearcoat

Roof Body Panel: Automotive engineering PP material injection mould with Aluminium side skirts

Front Shield and Wiper: Safety Folding Acrylic Windshield – Suited for golf course use

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, Indicators, Rear Tail Lights, Brake & Hazard Lights, Horn & Reversing Buzzer. Rooftop Safety Light installed by specific dealers (subject to dealer inclusions but this lights can be installed on this model)

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Dual Swing Arm with MacPherson Independent suspension on both front wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Integrated rear Transaxle with coil spring + cylinder hydraulic shock absorbers. Ratio: 16.1 (long chassis)

Wheels & Tyres: 10” ‘Bulldog’ Alloy Rims with 205/65-10 High wall 4P Turf Tyre
Standard Included Accessories: Steel Bull Bar, Tow Bar; Folding Wheelchair Ramp; Wheelchair tie-down points
Optional Extras: 5kW Motor Upgrade; Black/Beige Vinyl Seats; Marine Grade Rain Curtains. Note these extras are special order only and will incur additional lead time.

Description

Discover the ECAR Magnum 4AT Wheelchair Golf Cart – Accessible transport with modern design

Introducing the ECAR Magnum 4AT Wheelchair Golf Cart model, a premium vehicle that combines durability, safety and reliability. Designed to accommodate up to four passengers and a single wheelchair, this cart is ideal for navigating resorts, large workplaces, hotels, airports or stadiums, providing a smooth and safe ride every time.

Key Features:

  • Spacious Seating for Four: The ECAR Magnum 4AT Wheelchair Golf Cart is designed with comfort in mind, offering ample room for four passengers. The ergonomic seating ensures a comfortable forwards facing ride for all.
  • Sleek and Modern Design: Crafted with a focus on style, the ECAR Magnum 4AT Wheelchair Golf Cart features a sleek design that complements its spacious seating. This cart provides a premium experience for both drivers and passengers.
  • Reliable Performance: Powered by a high-performance motor, this cart delivers consistent handling and reliable operation across various terrains, ensuring a smooth and dependable ride.
  • Durable Construction: Built with high-quality materials, the Magnum 4AT is designed to withstand daily use, ensuring long-lasting durability and reliability for various utility tasks. The 1000mm Aluminium Cargo tray is one of the strongest on the market and ready for years of constant use without worry.

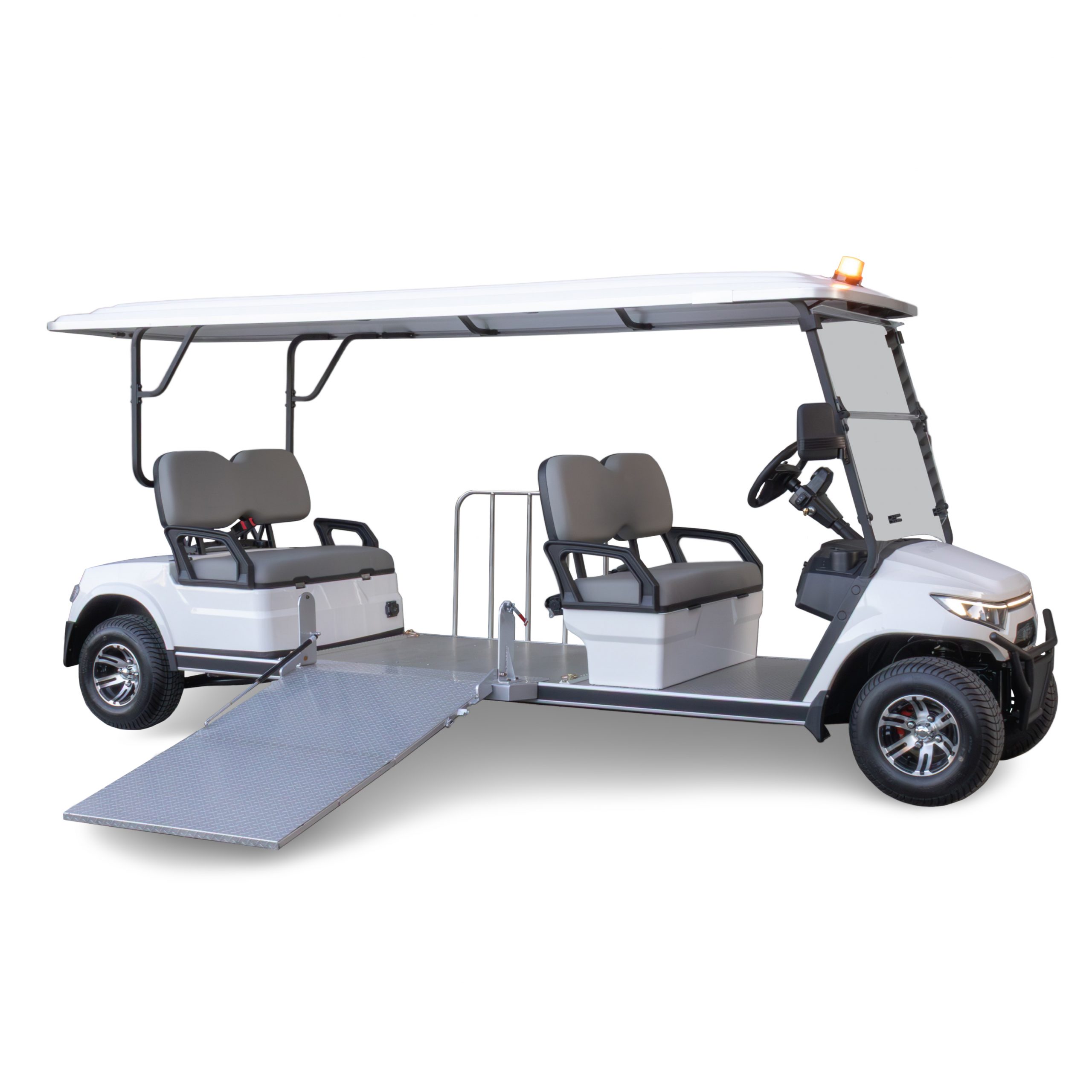

  • Wheelchair Ramp & Tie Down Points: This model comes standard with a medium-duty powder coated steel ramp with gas lift assistance and 4 x compliant tie down points to comply with the Australian Standard for this type of motorised transport.



Colours:
Personalise your ECAR Magnum 4AT Wheelchair Golf Cart to fit your style. All standard colours are metallic paint finishes with matching painted roof.

  • Metallic Black
  • Metallic Gunmetal Grey
  • Metallic Silver
  • Metallic Burgundy
  • Metallic Forest Green
  • Metallic Navy Blue
  • Metallic Champagne
  • Metallic White



Standard Inclusions:

  • Digital Speedometer, State of Charge Meter, and Odometer
  • ECAR OEM PRO-Li Lithium Battery System (100% Factory fitted and Certified to Australian Standards)
  • On-Board ECAR PRO-Li RCM Approved Lithium Battery Charger
  • Lockable Glove Boxes and a Non-Lockable Centre Console
  • Front and Rear LED Lighting for Day or Night Driving and roof mounting safety light
  • Durable Marine Grade Upholstery with Folding Armrests
  • Retractable 2-point Lap Seat Belts for all Seats
  • 2x Side Wing Mirrors
  • Internal Convex Mirror
  • Foldable/Hinged (new design) Windscreen
  • Poly Color matched painted roof (ECAR exclusive)
  • Metallic Paint Finish is standard
  • Folding Wheelchair Ramp
  • 4 x Wheelchair Tie-down Points



Why Choose the ECAR Magnum 4AT Wheelchair Golf Cart?

The ECAR Magnum 4AT Wheelchair Golf Cart is best suited for those who need a safe and reliable electric wheelchair vehicle. Whether you’re navigating resorts, large workplaces, hotels, airports or stadiums, this model cart is compliant and built for purpose.

The Magnum Series of golf carts is the best selling ECAR Series released and remains a popular choice amongst those who seek style and comfort in an affordable cart. Now available and fitted with a factory standard ECAR PRO-Li Battery system designed and manufactured by us; this cart will withstand anything you throw at it as it’s built to provide reliable performance for many years to come.

Contact your nearest dealer today for a quote on delivery or send us an enquiry here and we will put you in touch with the most suited dealer to save you time.
