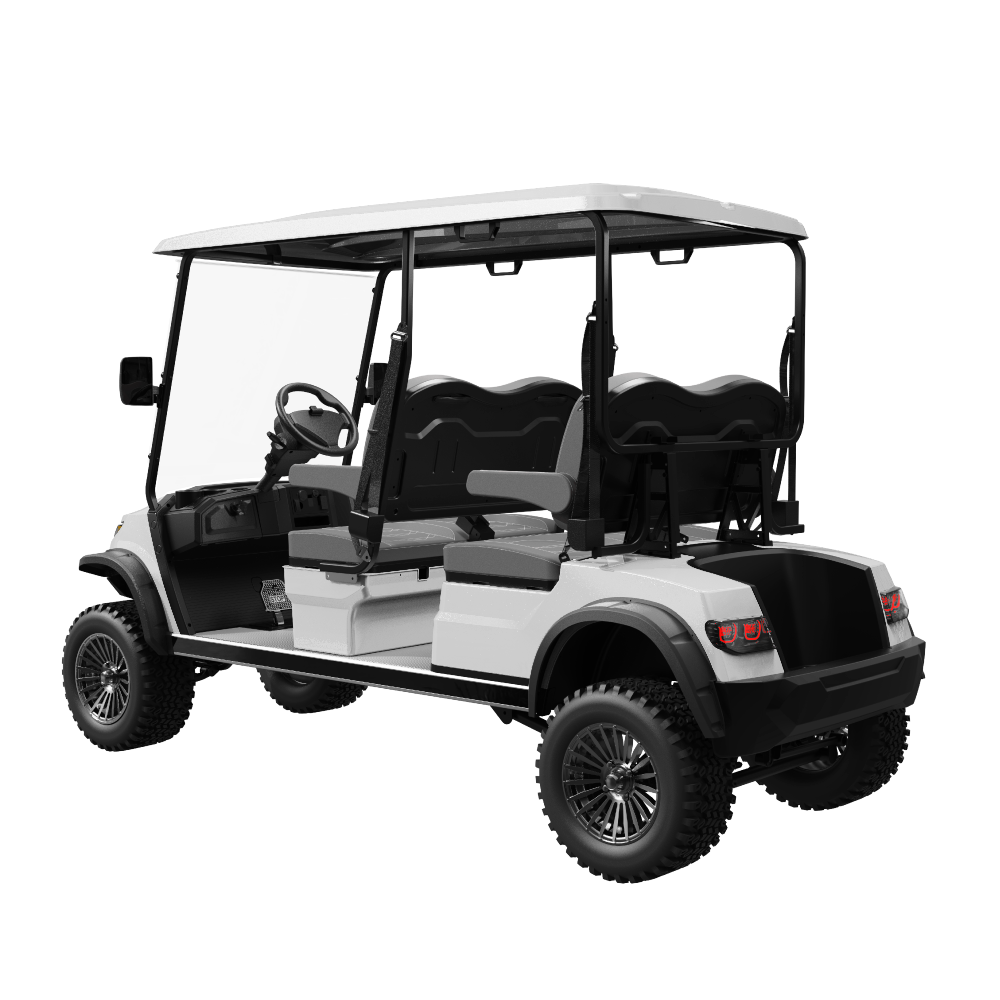

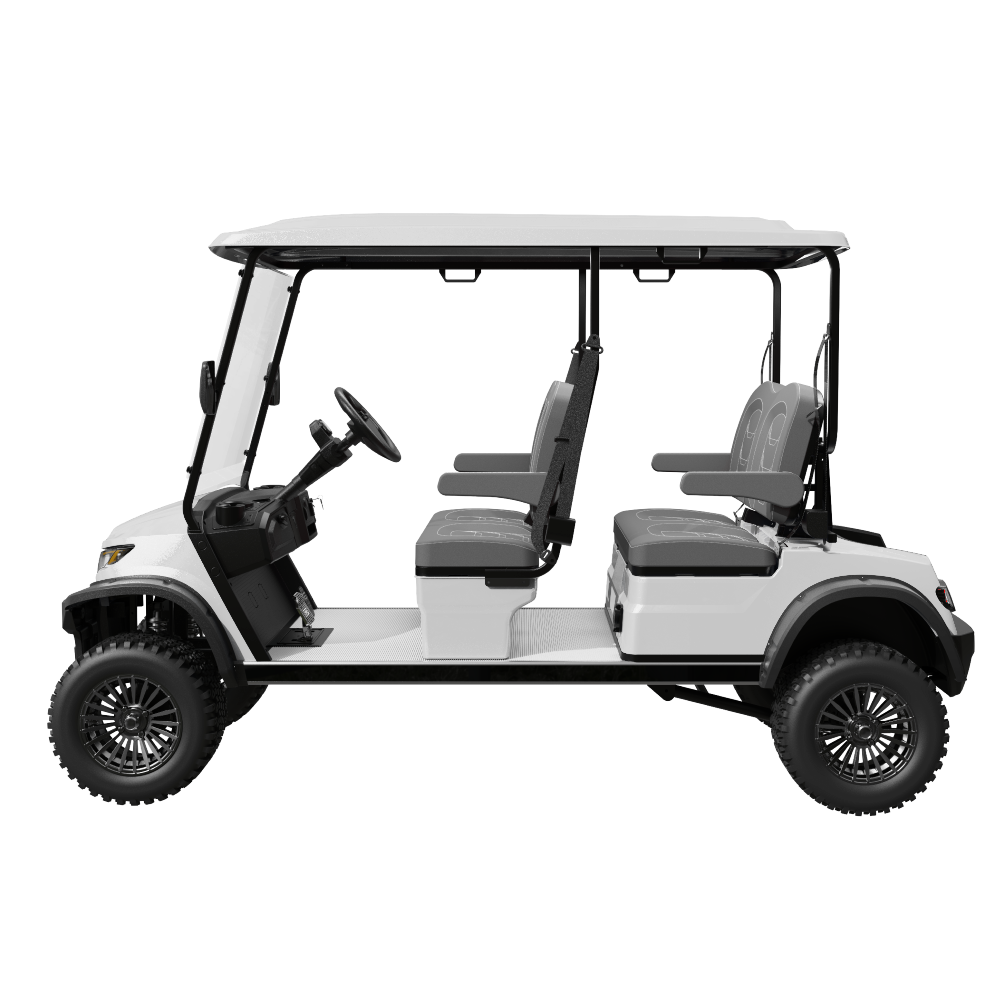

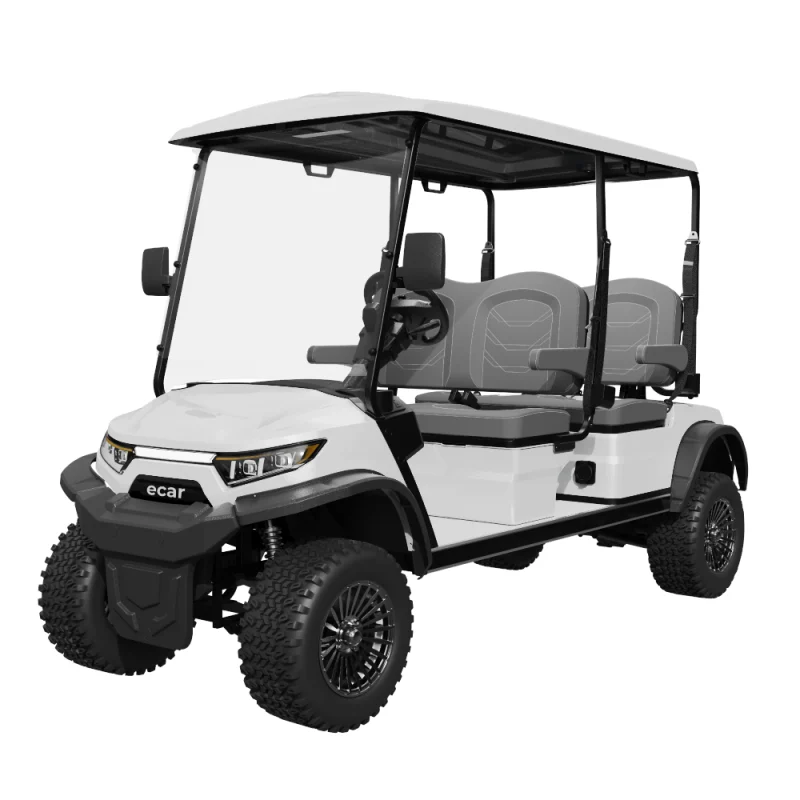

ECAR Magnum 4G 4 Seat Lifted Golf Cart

From $18,790.00

The ECAR Magnum 4G 4 Seat Lifted Golf Cart combines rugged off-road capability with sleek design, featuring lifted suspension and spacious seating for four. Perfect for both work and leisure, this cart is ideal for golf courses, resorts, and challenging terrains.

Perfect for those who need a stylish and dependable vehicle for navigating rugged environments.

Persons
Battery System
Motor
48V AC Brushless High Torque 4kW Motor
Controller
48V/350A ECAR AC Controller
Colours
Length (mm): 3360
Width (mm): 1370
Height (mm): 2030

Wheelbase overall length (center of front hub to center of rear hub): 2420mm

Wheelbase width between (center of tread to center of tread): Front is 1024mm, Rear is 1074mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 4

Tare Weight – No Batteries (kgs): 460

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 20%

Hill Hold Performance (limit): 20% Grade

Minimum Ground Clearance (mm): 175mm

Minimum Turning Radius: 4.65m

Rated Braking Distance: <6m

Avg. Energy Consumption per 100km: 7.5-9.5kW/hr based on terrain and programmed parameters of the controller
Proprietary Controller: ECAR 350A Controller by SEVCON, 48V 350A System

Electric Motor: LT AC Synchronous (Induction) 48V/4kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified to Australian Standards and Factory Installed ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V Output 300W Output
Dashboard: Moulded instrument panel, digital vehicle odometer/speed meter showing speed & accurate Lithium Battery SOC (ECAR only)

Interior Seating: Grey marine grade vinyl seats. Commercial rated. Seat Covers included as standard for low heat transfer

Interior Floor: Alloy corrugated floor. Optional Rubber floor mat is available as an additional accessory (Consult authorised dealer)

Rear-View Mirror: Interior Convex rear-view Mirror + L/RHS rear-view Mirrors.
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clearcoat

Roof Body Panel: Automotive engineering PP material injection mould with Aluminium side skirts

Front Shield and Wiper: Safety Folding Acrylic Windshield

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, Indicators, Rear Tail Lights, Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Dual Swing Arm with MacPherson Independent suspension on all four wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Integrated rear Transaxle. Ratio: 12.31:1 (2 Seat)

Wheels & Tyres: 10” ‘Bulldog’ Alloy Rims with 205/65-10 High wall 4P Turf Tyre
Standard Included Accessories: Full set of Premium Mesh washable Seat Covers.
Optional Extras: 5kW Motor Upgrade, Grey/Beige Vinyl Seats, Tow Bar, Marine Grade Rain Curtains; Steel Bull Bar
Length (mm): 3360
Width (mm): 1370
Height (mm): 2030

Wheelbase overall length (center of front hub to center of rear hub): 2420mm

Wheelbase width between (center of tread to center of tread): Front is 1024mm, Rear is 1074mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 4

Tare Weight – No Batteries (kgs): 460

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 20%

Hill Hold Performance (limit): 20% Grade

Minimum Ground Clearance (mm): 175mm

Minimum Turning Radius: 4.65m

Rated Braking Distance: <6m

Avg. Energy Consumption per 100km: 7.5-9.5kW/hr based on terrain and programmed parameters of the controller
Proprietary Controller: ECAR 350A Controller by SEVCON, 48V 350A System

Electric Motor: LT AC Synchronous (Induction) 48V/4kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified to Australian Standards and Factory Installed ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V Output 300W Output
Dashboard: Moulded instrument panel, digital vehicle odometer/speed meter showing speed & accurate Lithium Battery SOC (ECAR only)

Interior Seating: Grey marine grade vinyl seats. Commercial rated. Seat Covers included as standard for low heat transfer

Interior Floor: Alloy corrugated floor. Optional Rubber floor mat is available as an additional accessory (Consult authorised dealer)

Rear-View Mirror: Interior Convex rear-view Mirror + L/RHS rear-view Mirrors.
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clearcoat

Roof Body Panel: Automotive engineering PP material injection mould with Aluminium side skirts

Front Shield and Wiper: Safety Folding Acrylic Windshield

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, Indicators, Rear Tail Lights, Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Dual Swing Arm with MacPherson Independent suspension on all four wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Integrated rear Transaxle. Ratio: 12.31:1 (2 Seat)

Wheels & Tyres: 10” ‘Bulldog’ Alloy Rims with 205/65-10 High wall 4P Turf Tyre
Standard Included Accessories: Full set of Premium Mesh washable Seat Covers.
Optional Extras: 5kW Motor Upgrade, Grey/Beige Vinyl Seats, Tow Bar, Marine Grade Rain Curtains; Steel Bull Bar

Description

Discover the ECAR Magnum 4G 4 Seat Lifted Golf Cart – Style, Comfort, and Off-Road Capability

Introducing the ECAR Magnum 4G 4 Seat Lifted Golf Cart, a premium vehicle that combines style, comfort, and rugged off-road capability. Designed to accommodate up to four passengers, this cart is ideal for navigating golf courses, resorts, and challenging terrains, providing a smooth and enjoyable ride every time.

Key Features:

  • Lifted Suspension for Off-Road Performance: The ECAR Magnum 4G 4 Seat Lifted Golf Cart is equipped with lifted suspension, providing enhanced stability and handling on uneven terrains. Its rugged build ensures reliable performance in challenging environments.
  • Sleek and Modern Design: The Magnum 4G model is crafted with a focus on style and comfort. Its modern design, coupled with spacious seating for four, ensures a premium experience for both the driver and passengers.
  • Durable Construction: Built with high-quality materials, the Magnum 4G is designed to withstand daily use, ensuring long-lasting durability and reliability in all conditions.
  • Comfortable Seat Design: New in 2025 this model comes standard with luxury mid-back seating with folding armrests for increased comfort and styling. ECAR exclusive using commercial marine grade vinyl.



Colours:

Personalise your ECAR Magnum 4G 4 Seat Lifted Golf Cart to match your style. All standard colours are metallic paint finishes with matching painted roofs.

  • Metallic Black
  • Metallic Gunmetal Grey
  • Metallic Silver
  • Metallic Burgundy
  • Metallic Forest Green
  • Metallic Navy Blue
  • Metallic Champagne
  • Metallic White



Standard Inclusions:

  • Digital Speedometer, State of Charge Meter, and Odometer
  • ECAR OEM PRO-Li Lithium Battery System (100% Factory fitted and Certified to Australian Standards)
  • On-Board ECAR PRO-Li RCM Approved Lithium Battery Charger
  • Lockable Glove Boxes and a Non-Lockable Centre Console
  • Front and Rear LED Lighting for Day or Night Driving.
  • Durable Marine Grade Upholstery with Folding Armrests
  • Retractable 3-point Seat Belts for all Seats
  • 2x Side Wing Mirrors
  • Internal Convex Mirror
  • Foldable/Hinged (new design) Windscreen
  • Poly Color matched painted roof (ECAR exclusive)
  • Metallic Paint Finish is standard
  • 12-inch Surge Alloy Wheels with 23-inch Offroad Tyres (23×10.5-12 4PR P453)



Why Choose the ECAR Magnum 4G 4 Seat Lifted Golf Cart?

The ECAR Magnum 4G 4 Seat Lifted Golf Cart is best suited for those who appreciate a combination of style, reliable performance, and off-road capability in their transport. Whether you’re navigating rugged terrains, a golf course, or a resort, this cart offers the comfort, durability, and smooth ride you need.

The Magnum Series of golf carts is the best selling ECAR Series released and remains a popular choice amongst those who seek style and comfort in an affordable cart. Now available and fitted with a factory standard ECAR PRO-Li Battery system designed and manufactured by us; this cart will withstand anything you throw at it as it’s built to provide reliable performance for many years to come.

Contact your nearest dealer today for a quote on delivery or send us an enquiry here and we will put you in touch with the most suited dealer to save you time.

Additional information

Battery System

, ,

Colour

Metallic Black, Metallic Gunmetal Grey, Metallic Silver, Metallic Burgundy, Metallic Forest Green, Metallic Navy Blue, Metallic Champagne, Metallic White
