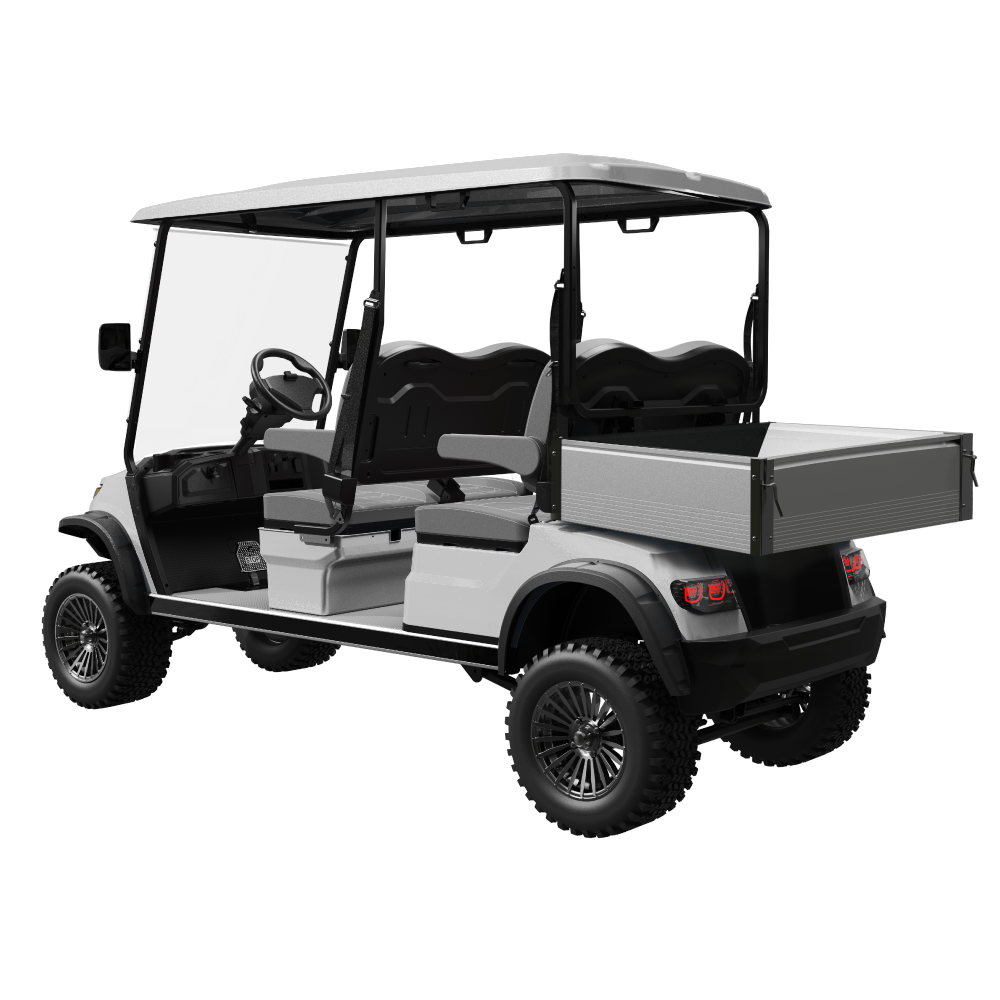

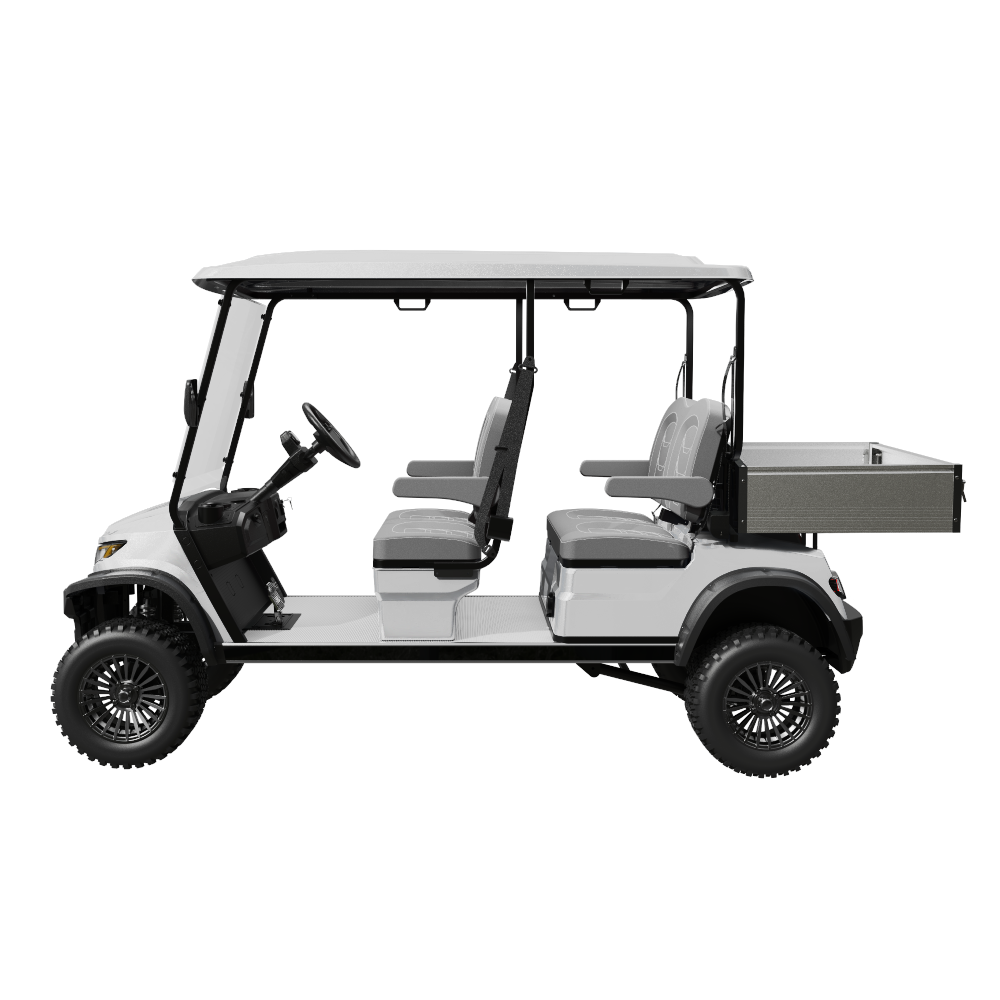

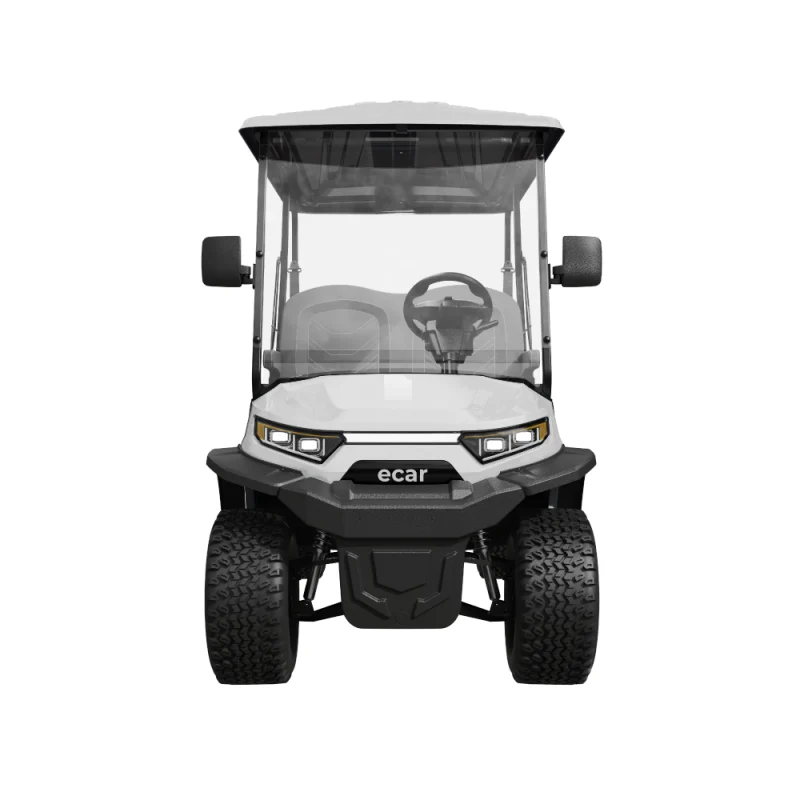

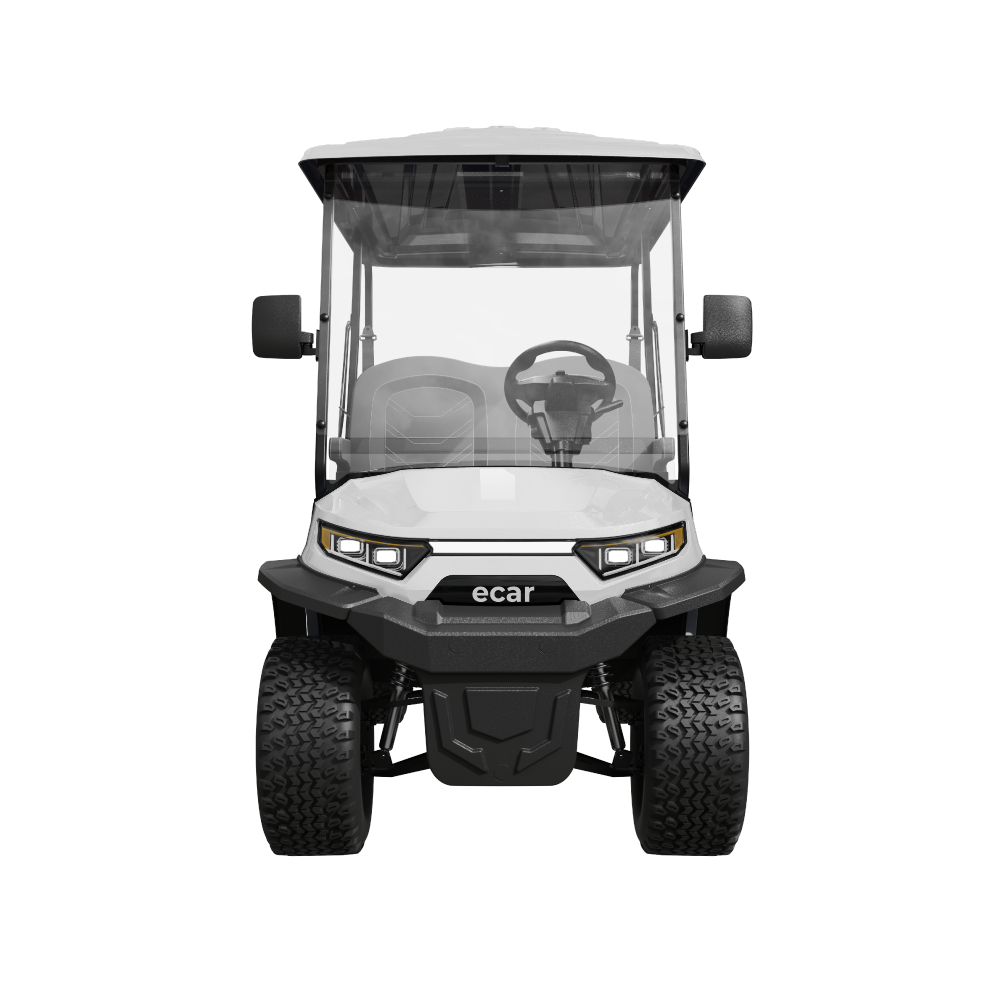

ECAR Magnum 4GUL 4 Seat Lifted Utility Golf Cart

From $19,790.00

The ECAR Magnum 4GUL 4 Seat Lifted Utility Golf Cart combines rugged off-road capability with practical utility, featuring lifted suspension and a spacious cargo box for transporting equipment. Perfect for both work and leisure, this cart is ideal for golf courses, resorts, and challenging terrains.

Perfect for those who need a stylish and dependable vehicle for transporting cargo and passengers across rugged environments.

Persons
Battery System
Motor
48V AC Brushless High Torque 4kW Motor
Controller
48V/350A ECAR AC Controller
Colours
SKU MAGNUM4GUL Categories , Tags , ,
Length (mm): 2360
Width (mm): 1370
Height (mm): 2030

Wheelbase overall length (center of front hub to center of rear hub): 2420mm

Wheelbase width between (center of tread to center of tread): Front 1024mm, Rear 1074mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 2

Tare Weight – No Batteries (kgs): 460

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 20%

Hill Hold Performance (limit): 20% Grade

Minimum Ground Clearance (mm): Approximately 175mm

Minimum Turning Radius: 4.65m

Rated Braking Distance: <6m

Avg. Energy Consumption per 100km: 7.5-9.5kW/hr based on terrain and programmed parameters of the controller
Proprietary Controller: ECAR 350A Controller by SEVCON, 48V 350A System

Electric Motor: LT AC Synchronous (Induction) 48V/4kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified to Australian Standards and Factory Installed ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V Output 300W Output
Dashboard: Moulded instrument panel, digital vehicle odometer/speedometer showing speed & accurate Lithium Battery SOC (ECAR only as our battery systems are factory designed and installed systems)

Interior Seating: Grey marine grade vinyl mid-back seats with folding armrests. Commercial rated.

Interior Floor: Alloy corrugated floor. Optional Rubber floor mat is available as an additional accessory (Consult authorised dealer)

Rear-View Mirror: Interior Convex rear-view Mirror + L/RHS rear-view Mirrors.
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clearcoat

Roof Body Panel: Automotive engineering PP material injection mould with Aluminium side skirts

Front Shield and Wiper: Safety Folding Acrylic Windshield – Suited for golf course use

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, Indicators, Rear Tail Lights, Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Dual Swing Arm with MacPherson Independent suspension on both front wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Integrated rear Transaxle with coil spring + cylinder hydraulic shock absorbers. Ratio: 16.1 (long chassis)

Wheels & Tyres: 10” ‘Bulldog’ Alloy Rims with 205/65-10 High wall 4P Turf Tyre
Standard Included Accessories: Full set of Premium Mesh washable Seat Covers, Steel Bull Bar
Optional Extras: 5kW Motor Upgrade; Black/Beige Vinyl Seats; Tow Bar; Marine Grade Rain Curtains
Length (mm): 2360
Width (mm): 1370
Height (mm): 2030

Wheelbase overall length (center of front hub to center of rear hub): 2420mm

Wheelbase width between (center of tread to center of tread): Front 1024mm, Rear 1074mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 2

Tare Weight – No Batteries (kgs): 460

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 20%

Hill Hold Performance (limit): 20% Grade

Minimum Ground Clearance (mm): Approximately 175mm

Minimum Turning Radius: 4.65m

Rated Braking Distance: <6m

Avg. Energy Consumption per 100km: 7.5-9.5kW/hr based on terrain and programmed parameters of the controller
Proprietary Controller: ECAR 350A Controller by SEVCON, 48V 350A System

Electric Motor: LT AC Synchronous (Induction) 48V/4kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified to Australian Standards and Factory Installed ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V Output 300W Output
Dashboard: Moulded instrument panel, digital vehicle odometer/speedometer showing speed & accurate Lithium Battery SOC (ECAR only as our battery systems are factory designed and installed systems)

Interior Seating: Grey marine grade vinyl mid-back seats with folding armrests. Commercial rated.

Interior Floor: Alloy corrugated floor. Optional Rubber floor mat is available as an additional accessory (Consult authorised dealer)

Rear-View Mirror: Interior Convex rear-view Mirror + L/RHS rear-view Mirrors.
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clearcoat

Roof Body Panel: Automotive engineering PP material injection mould with Aluminium side skirts

Front Shield and Wiper: Safety Folding Acrylic Windshield – Suited for golf course use

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, Indicators, Rear Tail Lights, Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Dual Swing Arm with MacPherson Independent suspension on both front wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Integrated rear Transaxle with coil spring + cylinder hydraulic shock absorbers. Ratio: 16.1 (long chassis)

Wheels & Tyres: 10” ‘Bulldog’ Alloy Rims with 205/65-10 High wall 4P Turf Tyre
Standard Included Accessories: Full set of Premium Mesh washable Seat Covers, Steel Bull Bar
Optional Extras: 5kW Motor Upgrade; Black/Beige Vinyl Seats; Tow Bar; Marine Grade Rain Curtains

Description

Discover the ECAR Magnum 4GUL 4 Seat Lifted Utility Golf Cart – Off-Road Utility with Style

Introducing the ECAR Magnum 4GUL 4 Seat Lifted Utility Golf Cart, a premium utility vehicle that combines style, comfort, and rugged off-road capability. Designed with a spacious cargo box and lifted suspension, this cart is ideal for both work and leisure, making it perfect for navigating golf courses, resorts, and challenging terrains.

Key Features:

  • Lifted Suspension for Off-Road Performance: The ECAR Magnum 4GUL 4 Seat Lifted Utility Golf Cart is equipped with lifted suspension, providing enhanced stability and handling on uneven terrains. Its rugged build ensures reliable performance in challenging environments.
  • Versatile Cargo Transport: The ECAR Magnum 4GUL is equipped with a 1000mm rear cargo box, perfect for transporting tools, equipment, or other essentials. Its durable design ensures it can handle both light and heavy-duty tasks with ease.
  • Durable Construction: Built with high-quality materials, the Magnum 4GUL model is designed to withstand daily use, ensuring long-lasting durability and reliability for various utility tasks.
  • Comfortable Seat Design: New in 2025 this model comes standard with luxury mid-back seating with folding armrests for increased comfort and styling. ECAR exclusive using commercial marine grade vinyl.



Colours:

Personalise your ECAR Magnum 4GUL 4 Seat Lifted Utility Golf Cart to match your style. All standard colours are metallic paint finishes with matching painted roofs.

  • Metallic Black
  • Metallic Gunmetal Grey
  • Metallic Silver
  • Metallic Burgundy
  • Metallic Forest Green
  • Metallic Navy Blue
  • Metallic Champagne
  • Metallic White



Standard Inclusions:

  • Digital Speedometer, State of Charge Meter, and Odometer
  • ECAR OEM PRO-Li Lithium Battery System (100% Factory fitted and Certified to Australian Standards)
  • On-Board ECAR PRO-Li RCM Approved Lithium Battery Charger
  • Lockable Glove Boxes and a Non-Lockable Centre Console
  • Front and Rear LED Lighting for Day or Night Driving.
  • Durable Marine Grade Upholstery with Folding Armrests
  • Retractable 3-point Seat Belts for all Seats
  • 2x Side Wing Mirrors
  • Internal Convex Mirror
  • Foldable/Hinged (new design) Windscreen
  • Poly Color matched painted roof (ECAR exclusive)
  • Metallic Paint Finish is standard
  • 12-inch ‘Surge’ Alloy Wheels with 23×10.5-12 4P Off-road Tyres
  • Fixed position 1000 (L) x 1150 (W) x 265mm (H) Aluminium Rear Utility Tray with folding Rear Tailgate



Why Choose the ECAR Magnum 4GUL 4 Seat Lifted Utility Golf Cart?

The ECAR Magnum 4GUL 4 Seat Lifted Utility Golf Cart is best suited for those who need a reliable and stylish utility vehicle for transporting cargo and passengers across rugged terrains. Whether you’re working on a golf course, managing a resort, or handling various tasks, this cart offers the durability, performance, and off-road capability needed for any environment.

The Magnum Series of golf carts is the best selling ECAR Series released and remains a popular choice amongst those who seek style and comfort in an affordable cart. Now available and fitted with a factory standard ECAR PRO-Li Battery system designed and manufactured by us; this cart will withstand anything you throw at it as it’s built to provide reliable performance for many years to come.

Contact your nearest dealer today for a quote on delivery or send us an enquiry here and we will put you in touch with the most suited dealer to save you time.
