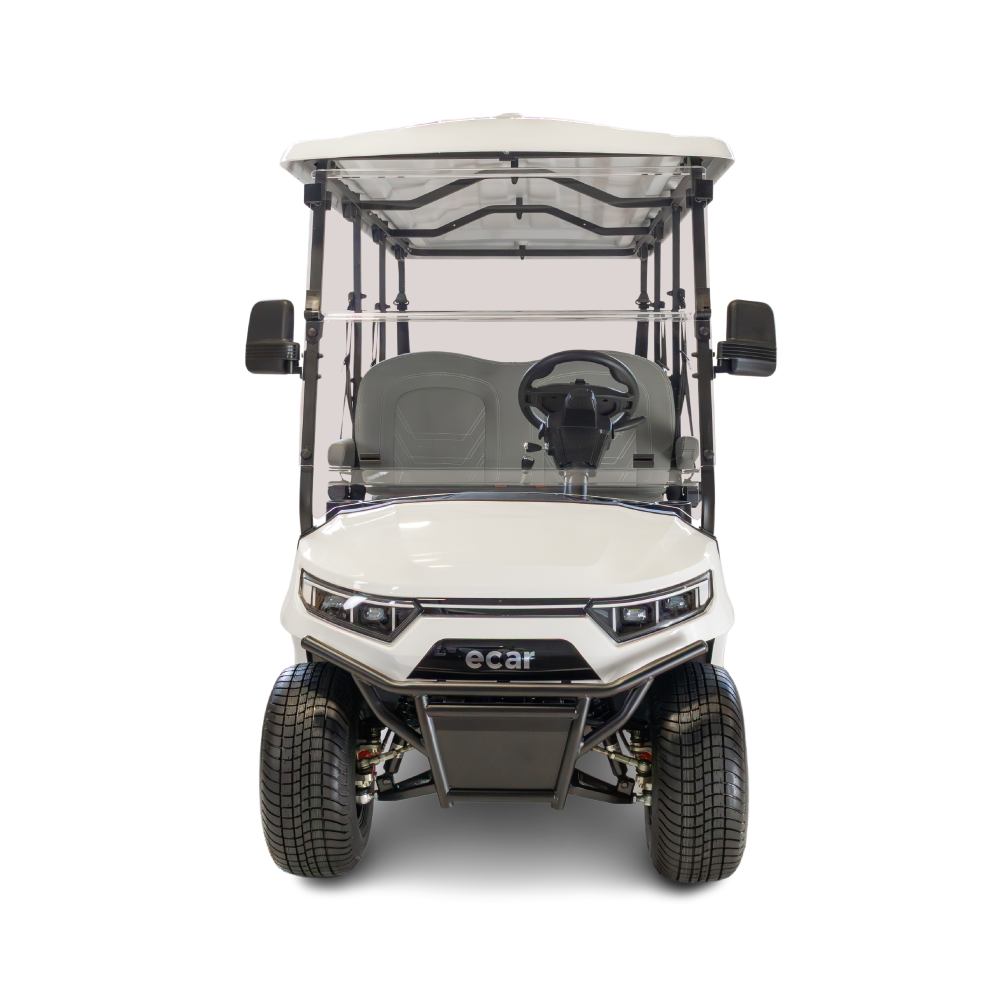

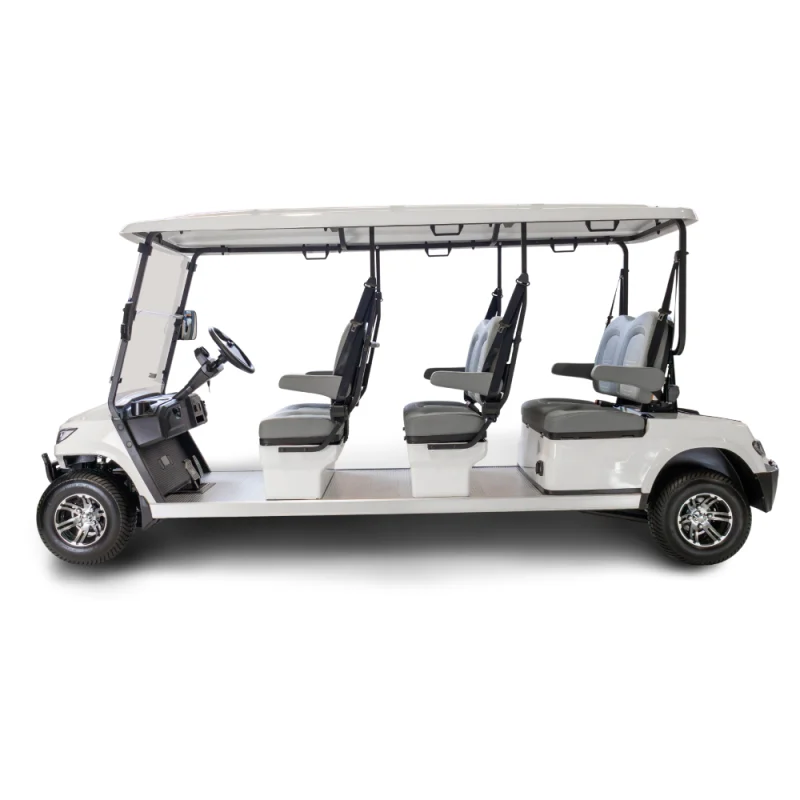

ECAR Magnum 6 Seat Golf Cart

From $19,790.00

The ECAR Magnum 6 Seat Golf Cart combines modern design with spacious seating for six, offering reliable performance for both work and leisure. Perfect for community transport or to service people moving at large commercial sites.

This model has the added benefit of all passengers are facing forwards.

Persons
Battery System
Motor
48V AC Brushless High Torque 4kW Motor
Controller
48V/350A ECAR AC Controller
Colours
Length (mm): 4180 (including bullbar)
Width (mm): 1230
Height (mm): 1915

Wheelbase overall length (center of front hub to center of rear hub): 3260mm

Wheelbase width between (center of tread to center of tread): Front 895mm, Rear 1000mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 6

Tare Weight – No Batteries (kgs): 510

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 20%

Hill Hold Performance (limit): 20% Grade

Minimum Ground Clearance (mm): 135mm

Minimum Turning Radius: 5.8m

Rated Braking Distance: <6m

Avg. Energy Consumption per 100km: 8.5-9.5kW/hr based on terrain and programmed parameters of the controller
Proprietary Controller: ECAR 350A Controller by SEVCON, 48V 350A System

Electric Motor: LT AC Synchronous (Induction) 48V/4kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified to Australian Standards and Factory Installed ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V Output 300W Output
Dashboard: Moulded instrument panel, digital vehicle odometer/speedometer showing speed & accurate Lithium Battery SOC (ECAR only as our battery systems are factory designed and installed systems)

Interior Seating: Grey marine grade vinyl seats. Commercial rated. Seat Covers included as standard for low heat transfer

Interior Floor: Alloy corrugated floor. Optional Rubber floor mat is available as an additional accessory (Consult authorised dealer)

Rear-View Mirror: Interior Convex rear-view Mirror + L/RHS rear-view Mirrors.
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clear coat

Roof Body Panel: Automotive engineering PP material injection mould with Aluminium side skirts

Front Shield and Wiper: Safety Folding Acrylic Windshield – Suited for golf course use

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, Indicators, Rear Tail Lights, Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Dual Swing Arm with MacPherson Independent suspension on both front wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Integrated rear Transaxle with coil spring + cylinder hydraulic shock absorbers. Ratio: 16.1 (long chassis)

Wheels & Tyres: 10” ‘Bulldog’ Alloy Rims with 205/65-10 High wall 4P Turf Tyre
Standard Included Accessories: Full set of Premium Mesh washable Seat Covers, Steel Bull Bar; Tow Bar
Optional Extras: 5kW Motor Upgrade; Black/Beige Vinyl Seats; Marine Grade Rain Curtains
Length (mm): 4180 (including bullbar)
Width (mm): 1230
Height (mm): 1915

Wheelbase overall length (center of front hub to center of rear hub): 3260mm

Wheelbase width between (center of tread to center of tread): Front 895mm, Rear 1000mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 6

Tare Weight – No Batteries (kgs): 510

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 20%

Hill Hold Performance (limit): 20% Grade

Minimum Ground Clearance (mm): 135mm

Minimum Turning Radius: 5.8m

Rated Braking Distance: <6m

Avg. Energy Consumption per 100km: 8.5-9.5kW/hr based on terrain and programmed parameters of the controller
Proprietary Controller: ECAR 350A Controller by SEVCON, 48V 350A System

Electric Motor: LT AC Synchronous (Induction) 48V/4kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified to Australian Standards and Factory Installed ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V Output 300W Output
Dashboard: Moulded instrument panel, digital vehicle odometer/speedometer showing speed & accurate Lithium Battery SOC (ECAR only as our battery systems are factory designed and installed systems)

Interior Seating: Grey marine grade vinyl seats. Commercial rated. Seat Covers included as standard for low heat transfer

Interior Floor: Alloy corrugated floor. Optional Rubber floor mat is available as an additional accessory (Consult authorised dealer)

Rear-View Mirror: Interior Convex rear-view Mirror + L/RHS rear-view Mirrors.
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clear coat

Roof Body Panel: Automotive engineering PP material injection mould with Aluminium side skirts

Front Shield and Wiper: Safety Folding Acrylic Windshield – Suited for golf course use

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, Indicators, Rear Tail Lights, Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Dual Swing Arm with MacPherson Independent suspension on both front wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Integrated rear Transaxle with coil spring + cylinder hydraulic shock absorbers. Ratio: 16.1 (long chassis)

Wheels & Tyres: 10” ‘Bulldog’ Alloy Rims with 205/65-10 High wall 4P Turf Tyre
Standard Included Accessories: Full set of Premium Mesh washable Seat Covers, Steel Bull Bar; Tow Bar
Optional Extras: 5kW Motor Upgrade; Black/Beige Vinyl Seats; Marine Grade Rain Curtains

Description

Discover the ECAR Magnum 6 Seat Golf Cart – Style and Comfort for Six

Introducing the ECAR Magnum 6 Seat Golf Cart, a premium vehicle that combines style, comfort, and reliability. Designed to accommodate up to six passengers, this cart is ideal for navigating golf courses, resorts, and communities, providing a smooth and enjoyable ride for everyone on board with the added safety benefit of all passengers are facing forwards.

Key Features:

  • Spacious Seating for Six: The ECAR Magnum 6 Seat Golf Cart is designed with comfort in mind, offering ample room for six passengers. The ergonomic seating ensures a comfortable ride for all, whether for leisure or work.
  • Sleek and Modern Design: Crafted with a focus on style, the Magnum 6 Seat Golf Cart features a sleek design that complements its spacious seating. This cart provides a premium experience for both drivers and passengers.
  • Reliable Performance: Powered by a high-performance motor, this cart delivers consistent handling and reliable operation across various terrains, ensuring a smooth and dependable ride.
  • Comfortable Seat Design: New in 2025 this model comes standard with luxury mid-back seating with folding armrests for increased comfort and styling. ECAR exclusive using commercial marine grade vinyl.



Colours:

Personalise your ECAR Magnum 6 Seat Golf Cart to match your style. All standard colours are metallic paint finishes with matching painted roofs.

  • Metallic Black
  • Metallic Gunmetal Grey
  • Metallic Silver
  • Metallic Burgundy
  • Metallic Forest Green
  • Metallic Navy Blue
  • Metallic Champagne
  • Metallic White



Standard Inclusions:

  • Digital Speedometer, State of Charge Meter, and Odometer
  • ECAR OEM PRO-Li Lithium Battery System (100% Factory fitted and Certified to Australian Standards)
  • On-Board ECAR PRO-Li RCM Approved Lithium Battery Charger
  • Lockable Glove Boxes and a Non-Lockable Centre Console
  • Front and Rear LED Lighting for Day or Night Driving.
  • Durable Marine Grade Upholstery with Folding Armrests
  • Retractable 3-point Seat Belts for all Seats
  • 2x Side Wing Mirrors
  • Internal Convex Mirror
  • Foldable/Hinged (new design) Windscreen
  • Poly Color matched painted roof (ECAR exclusive)
  • Metallic Paint Finish is standard



Why Choose the ECAR Magnum 6 Seat Golf Cart?

The ECAR Magnum 6 Seat Golf Cart is best suited for those who need a stylish and reliable vehicle for transporting larger groups. Whether you’re navigating a golf course, resort, or community, this cart offers the comfort, durability, and smooth ride required for a premium experience.

The Magnum Series of golf carts is the best selling ECAR Series released and remains a popular choice amongst those who seek style and comfort in an affordable cart. Now available and fitted with a factory standard ECAR PRO-Li Battery system designed and manufactured by us; this cart will withstand anything you throw at it as it’s built to provide reliable performance for many years to come.

Contact your nearest dealer today for a quote on delivery or send us an enquiry here and we will put you in touch with the most suited dealer to save you time.
