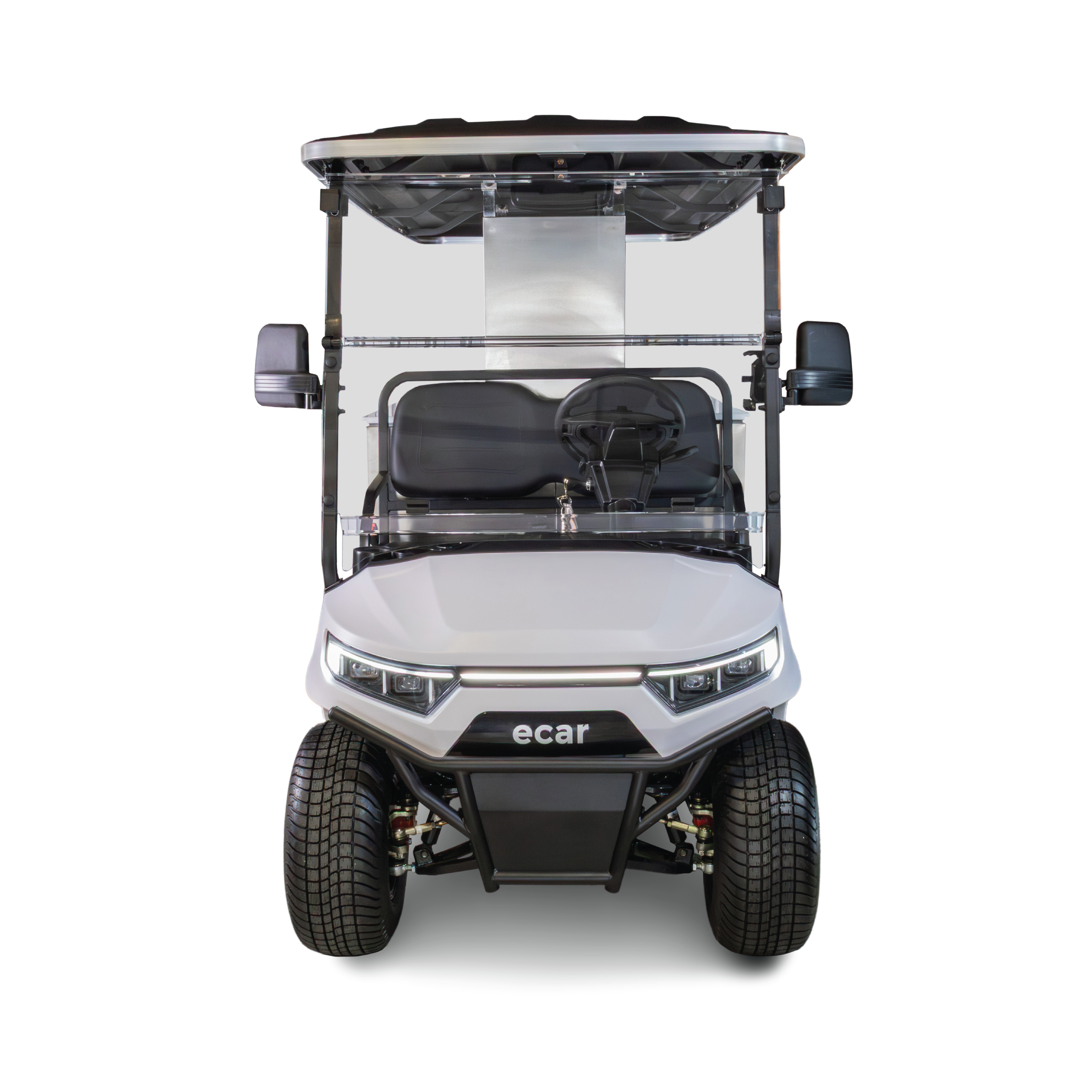

ECAR Magnum FB 2 Seat Golf Cart

From $22,990.00

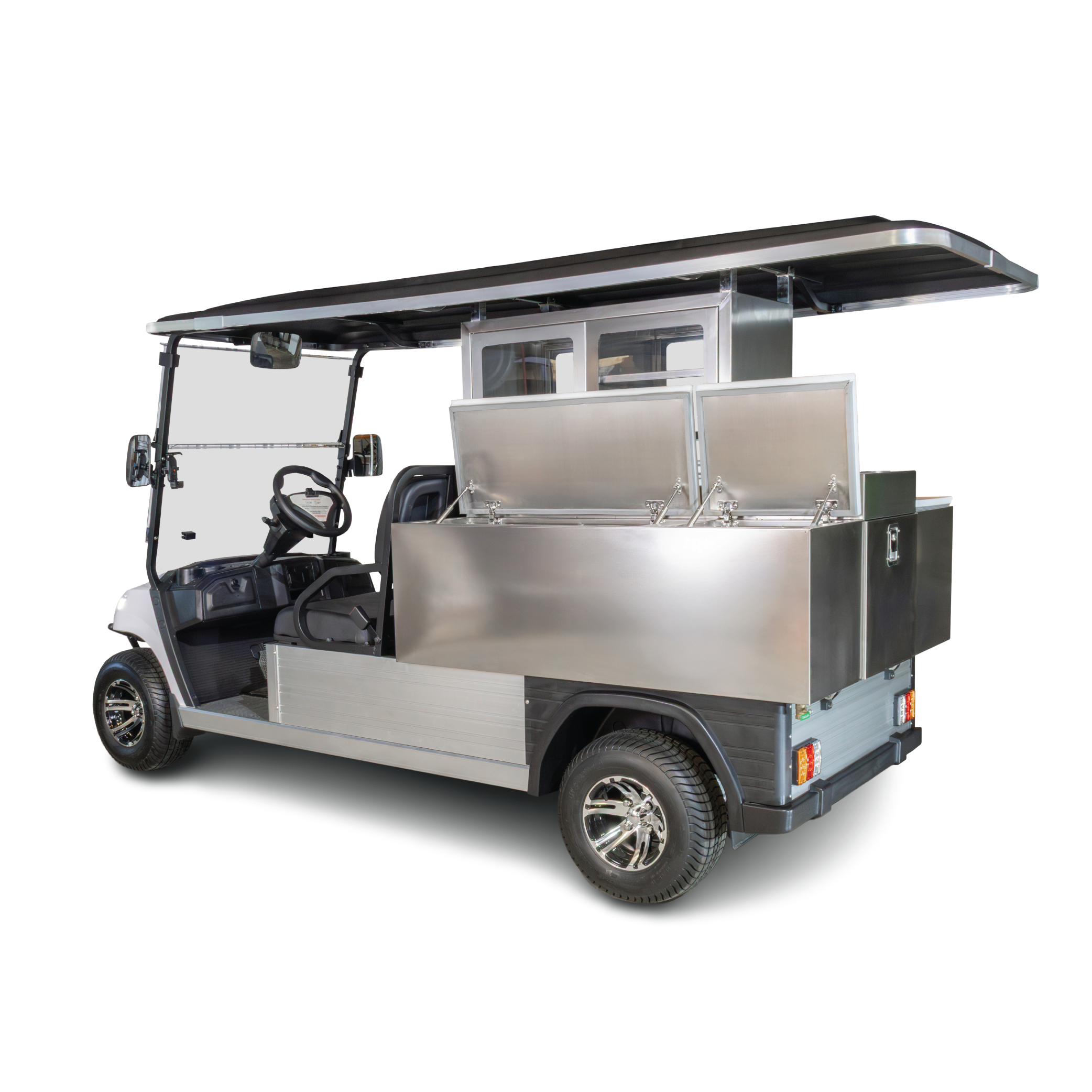

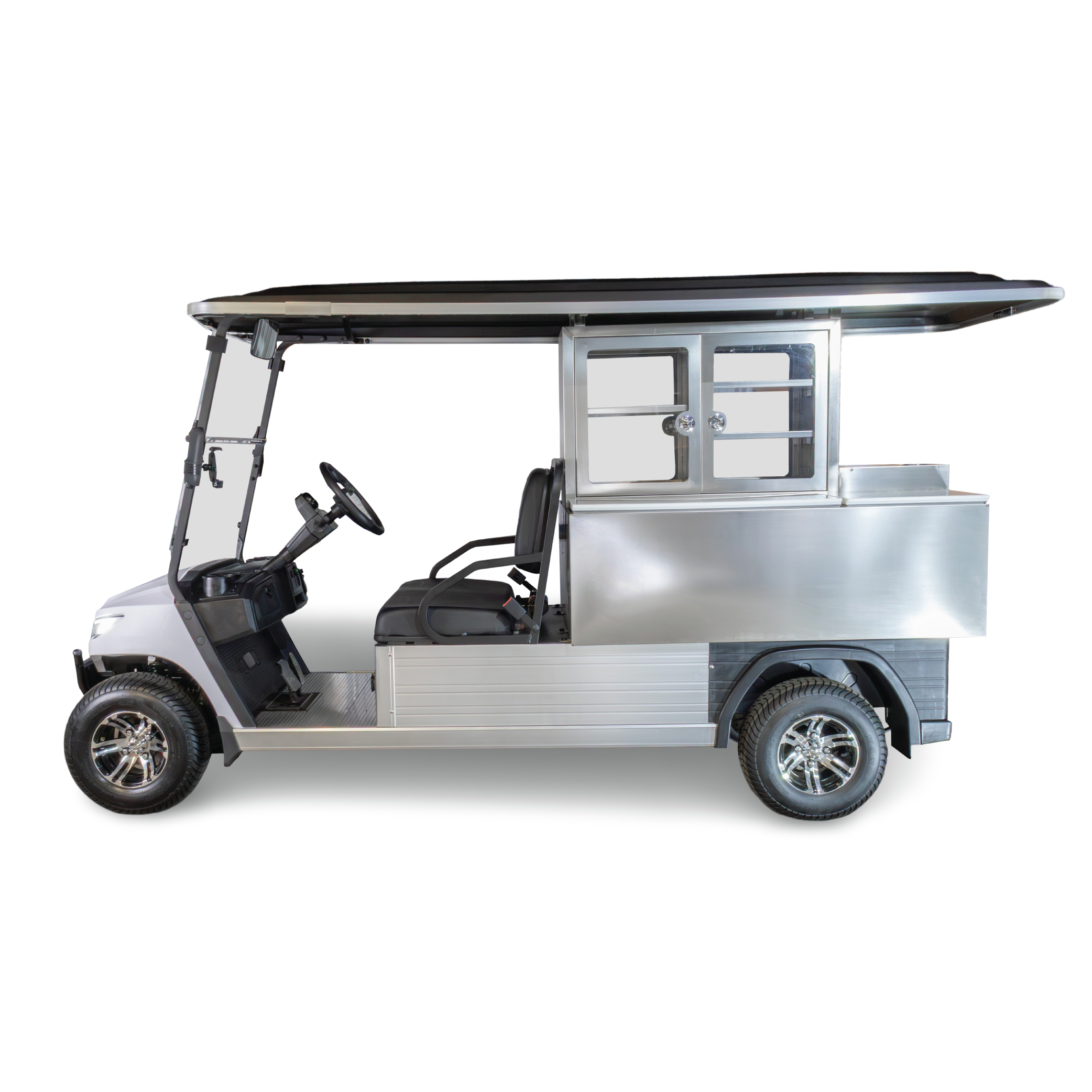

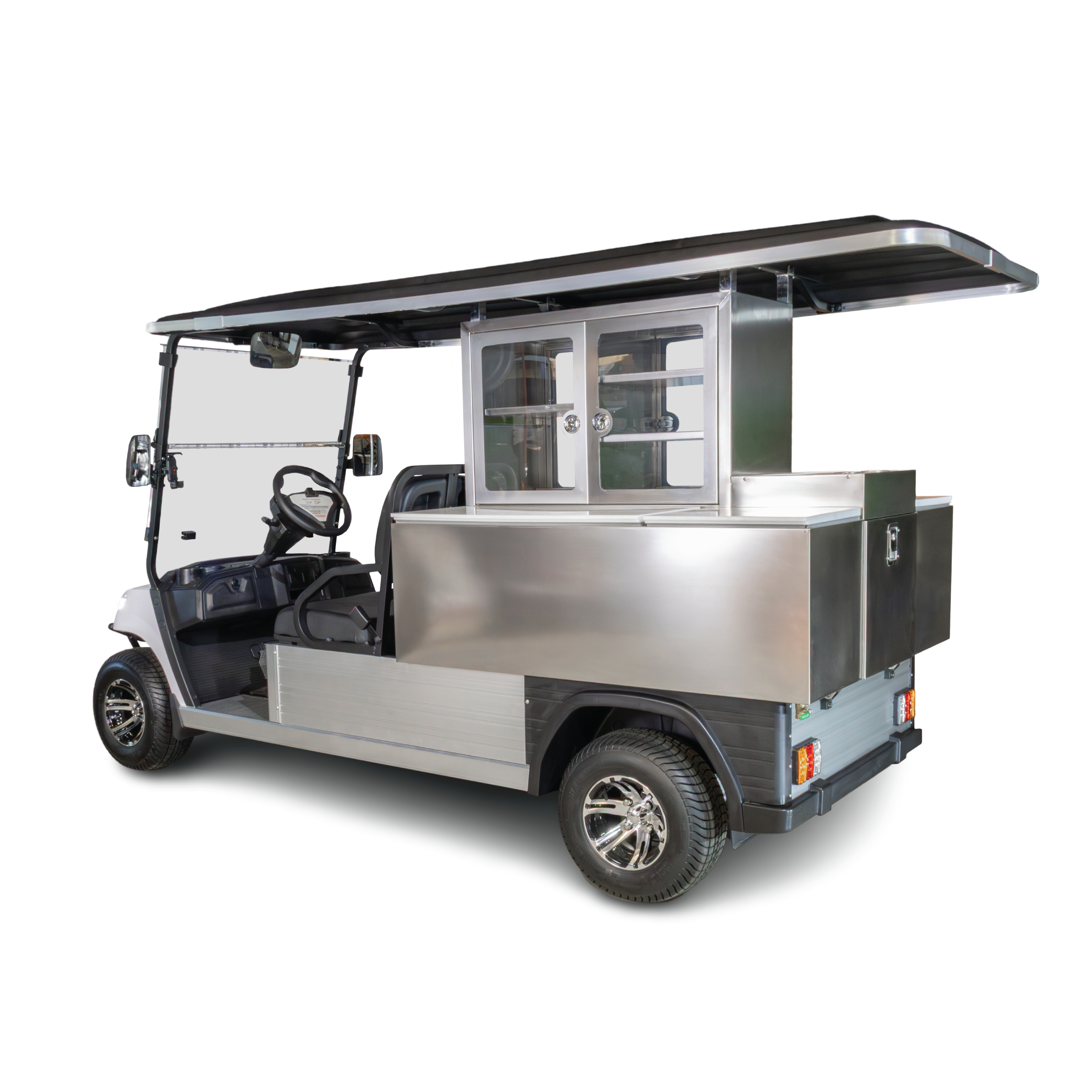

The ECAR Magnum FB 2 Seat Golf Cart is a modern fully electric food & beverage cart designed for catering or golf course use. With the ability to come equipped with up to 280Ah OEM Lithium this cart is the perfect upgrade from any petrol model.

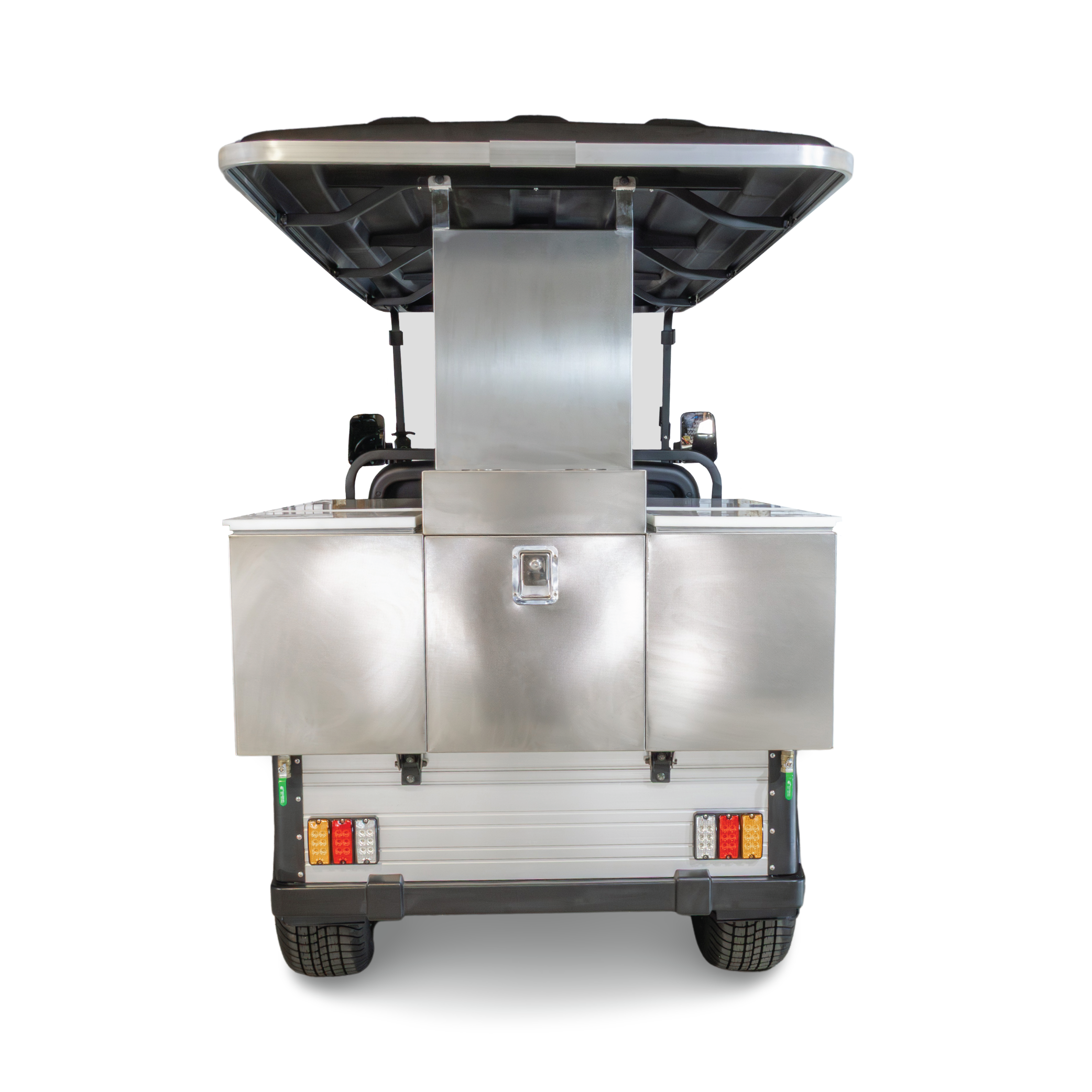

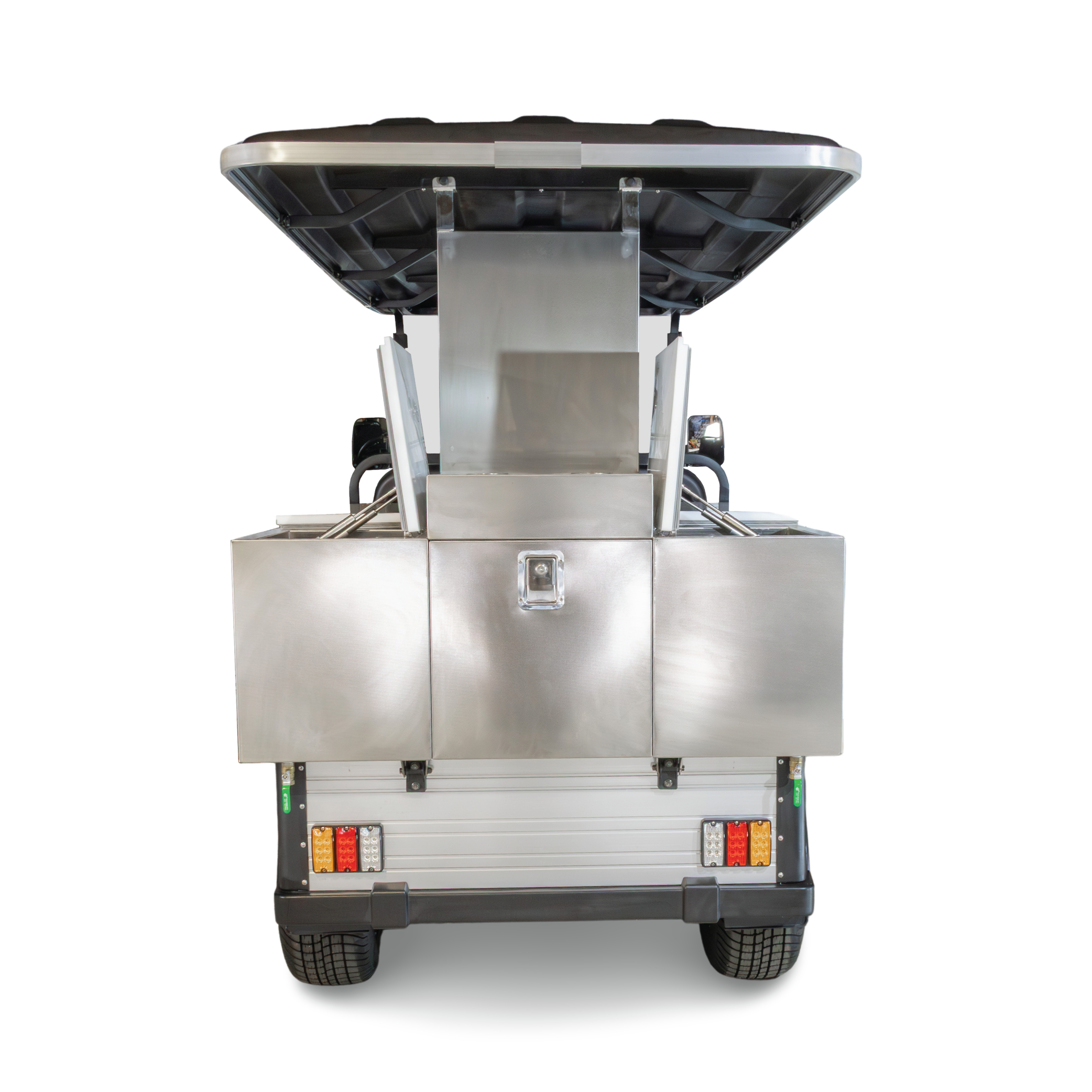

Fitted with a food safe Stainless Steel catering box, featuring drainable ice buckets and transparent door dry good storage. This cart can also be fitted with a 12V warmer for the top cabinet (additional charges apply).

Persons
Battery System
Motor
48V AC Brushless High Torque 4kW Motor
Controller
48V/350A ECAR AC Controller
Colours
Length (mm): 2740
Width (mm): 1230
Height (mm): 1850

Wheelbase overall length (center of front hub to center of rear hub): 2400mm

Wheelbase width between (center of tread to center of tread): Front 905mm, Rear 1000mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 5 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 5 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 2

Tare Weight – No Batteries (kgs): 342

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 25%

Hill Hold Performance (limit): 20% Grade

Minimum Ground Clearance (mm): Approximately 120mm

Minimum Turning Radius: 3.2m

Rated Braking Distance: < 5m

Avg. Energy Consumption per 100km: 9.0-10.0kW/hr based on terrain and programmed parameters of the controller
Proprietary Controller: ECAR 350A Controller by SEVCON, 48V 350A System

Electric Motor: LT AC Synchronous (Induction) 48V/4kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified to Australian Standards and Factory Installed ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V Output 300W Output

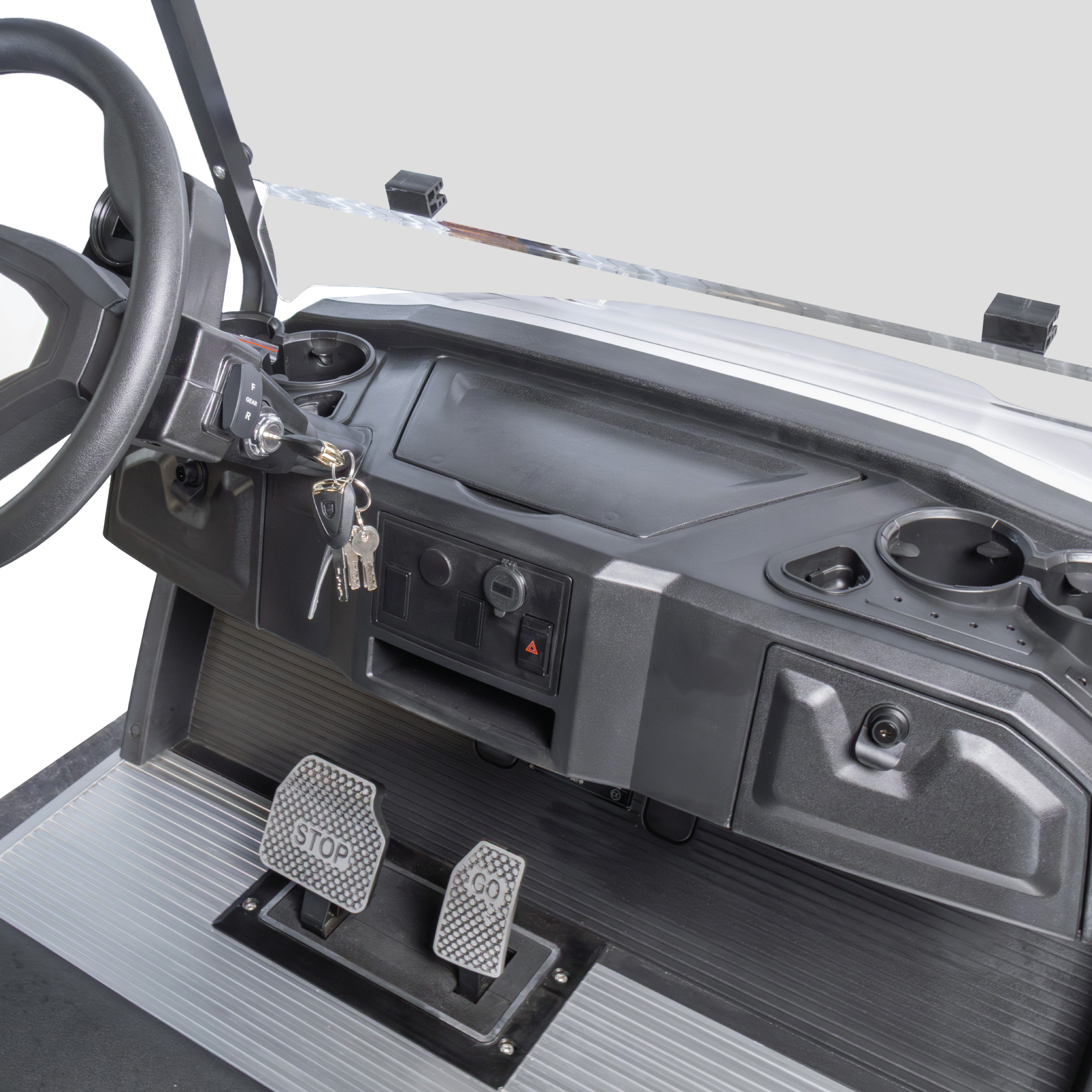

Dashboard: Moulded instrument panel, digital vehicle odometer/speedometer showing speed & accurate Lithium Battery SOC (ECAR only as our battery systems are factory designed and installed systems)

Interior Seating: Grey marine grade vinyl mid-back seats with folding armrests. Commercial rated.

Interior Floor: Alloy corrugated floor. Optional Rubber floor mat is available as an additional accessory (Consult authorised dealer)

Rear-View Mirror: Side L/RHS rear-view Mirrors.
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clear coat

Roof Body Panel: Automotive engineering PP material injection mould with Aluminium side skirts and Aluminium Side and Read Body Panels

Front Shield and Wiper: Safety Folding Acrylic Windshield – Suited for golf course use

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, Indicators, Rear Tail Lights, Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Dual Swing Arm with MacPherson Independent suspension on both front wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Integrated rear Transaxle with heavy-duty rear leaf springs + cylinder hydraulic shock absorbers. Ratio: 16.1 (long chassis)

Wheels & Tyres: 10” ‘Bulldog’ Alloy Rims with 205/65-10 High wall 4P Turf Tyre
Standard Included Accessories: Full set of Premium Mesh washable Seat Covers, Steel Bull Bar
Optional Extras: 5kW Motor Upgrade; Black/Beige Vinyl Seats; Tow Bar; Marine Grade Rain Curtains
Length (mm): 2740
Width (mm): 1230
Height (mm): 1850

Wheelbase overall length (center of front hub to center of rear hub): 2400mm

Wheelbase width between (center of tread to center of tread): Front 905mm, Rear 1000mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 5 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 5 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 2

Tare Weight – No Batteries (kgs): 342

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 25%

Hill Hold Performance (limit): 20% Grade

Minimum Ground Clearance (mm): Approximately 120mm

Minimum Turning Radius: 3.2m

Rated Braking Distance: < 5m

Avg. Energy Consumption per 100km: 9.0-10.0kW/hr based on terrain and programmed parameters of the controller
Proprietary Controller: ECAR 350A Controller by SEVCON, 48V 350A System

Electric Motor: LT AC Synchronous (Induction) 48V/4kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified to Australian Standards and Factory Installed ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V Output 300W Output
Dashboard: Moulded instrument panel, digital vehicle odometer/speedometer showing speed & accurate Lithium Battery SOC (ECAR only as our battery systems are factory designed and installed systems)

Interior Seating: Grey marine grade vinyl mid-back seats with folding armrests. Commercial rated.

Interior Floor: Alloy corrugated floor. Optional Rubber floor mat is available as an additional accessory (Consult authorised dealer)

Rear-View Mirror: Side L/RHS rear-view Mirrors.
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clear coat

Roof Body Panel: Automotive engineering PP material injection mould with Aluminium side skirts and Aluminium Side and Read Body Panels

Front Shield and Wiper: Safety Folding Acrylic Windshield – Suited for golf course use

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, Indicators, Rear Tail Lights, Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Dual Swing Arm with MacPherson Independent suspension on both front wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Integrated rear Transaxle with heavy-duty rear leaf springs + cylinder hydraulic shock absorbers. Ratio: 16.1 (long chassis)

Wheels & Tyres: 10” ‘Bulldog’ Alloy Rims with 205/65-10 High wall 4P Turf Tyre
Standard Included Accessories: Full set of Premium Mesh washable Seat Covers, Steel Bull Bar
Optional Extras: 5kW Motor Upgrade; Black/Beige Vinyl Seats; Tow Bar; Marine Grade Rain Curtains

Description

Discover the ECAR Magnum FB 2 Seat Golf Cart: The Perfect Electric solution to Food & Beverage Service

ECAR is constantly innovating and expanding our golf cart range to cater to the needs of individuals and businesses around the world. This latest food & beverage model is the newest and most modern type of catering cart on the market. Feature high quality stainless steel cabinet construction, this cart is not only versatile but built for the future.

Key Features:

  • Efficient Performance: Equipped with a robust AC powered motor and a premium ECAR controller, the LT-A2 ensures smooth acceleration and consistent handling. Its regenerative braking system not only provides reliable control but also helps conserve battery life.
  • Sturdy and Robust: Built to endure, the ECAR LT-A2 2 Seat Golf Cart boasts a solid construction that can withstand the elements and the test of time. It’s designed for durability, not luxury, making it a practical choice for everyday use on the course.
  • Eco-Friendly: With a minimal environmental footprint, this golf cart allows you to enjoy your game while responsibly managing your ecological impact.

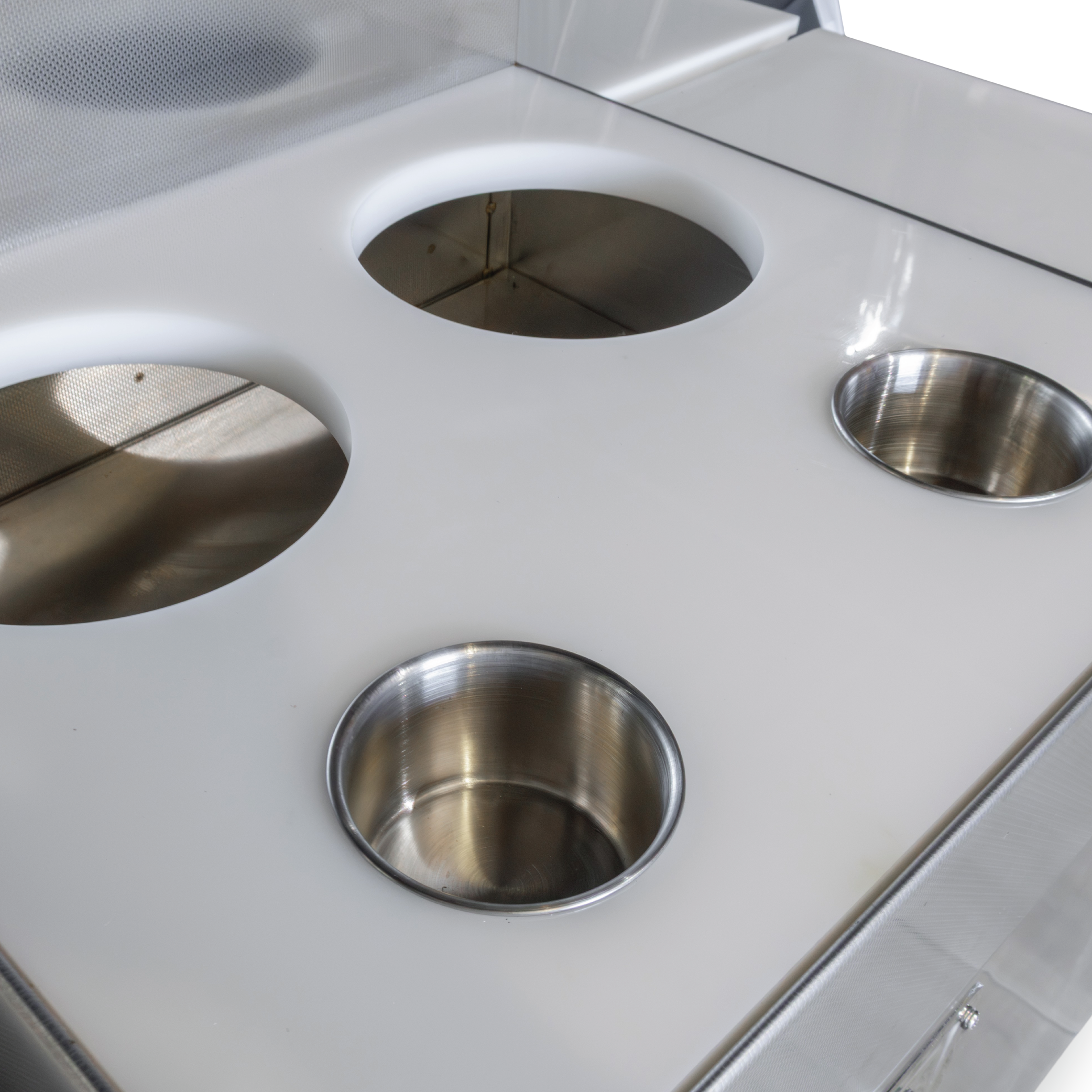

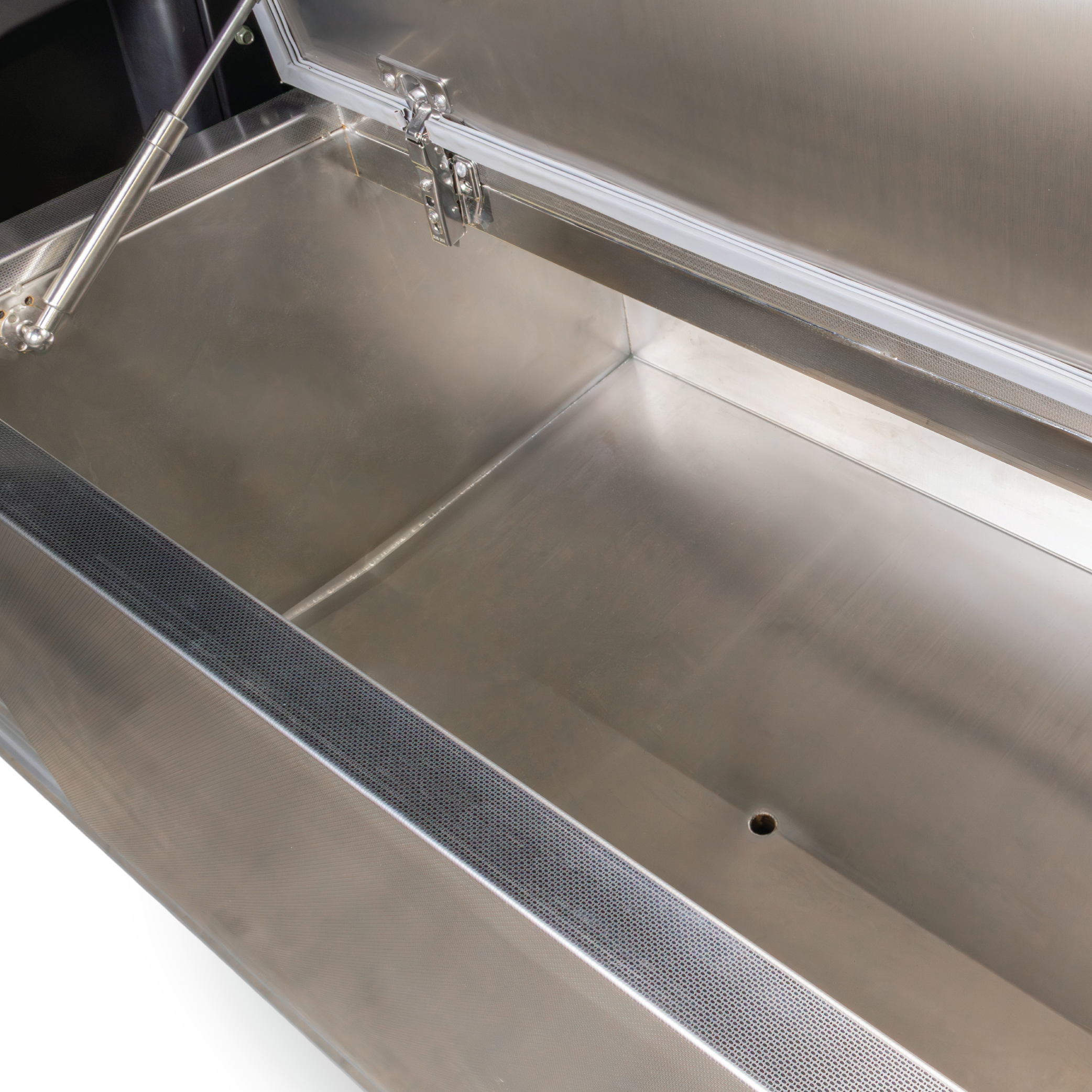

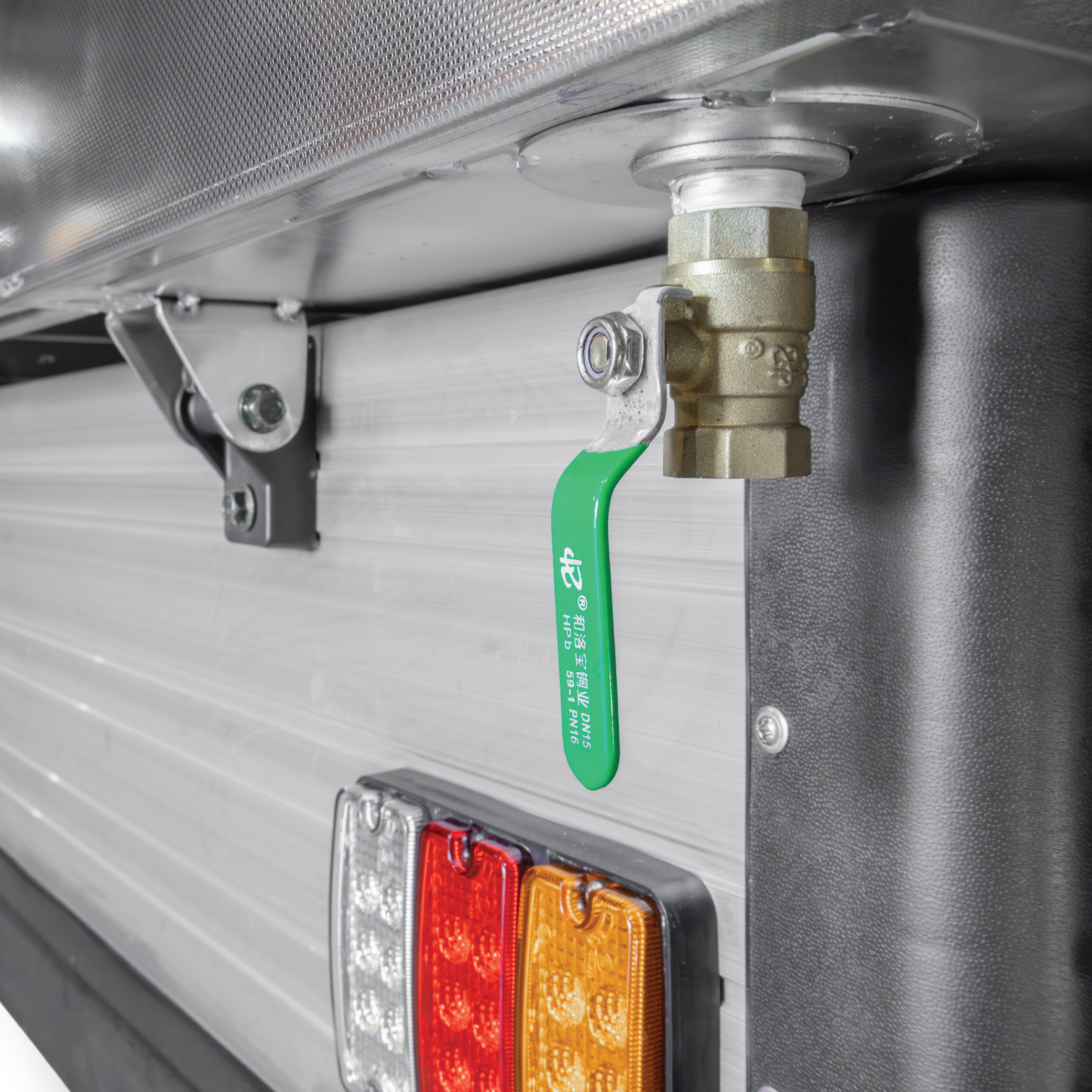

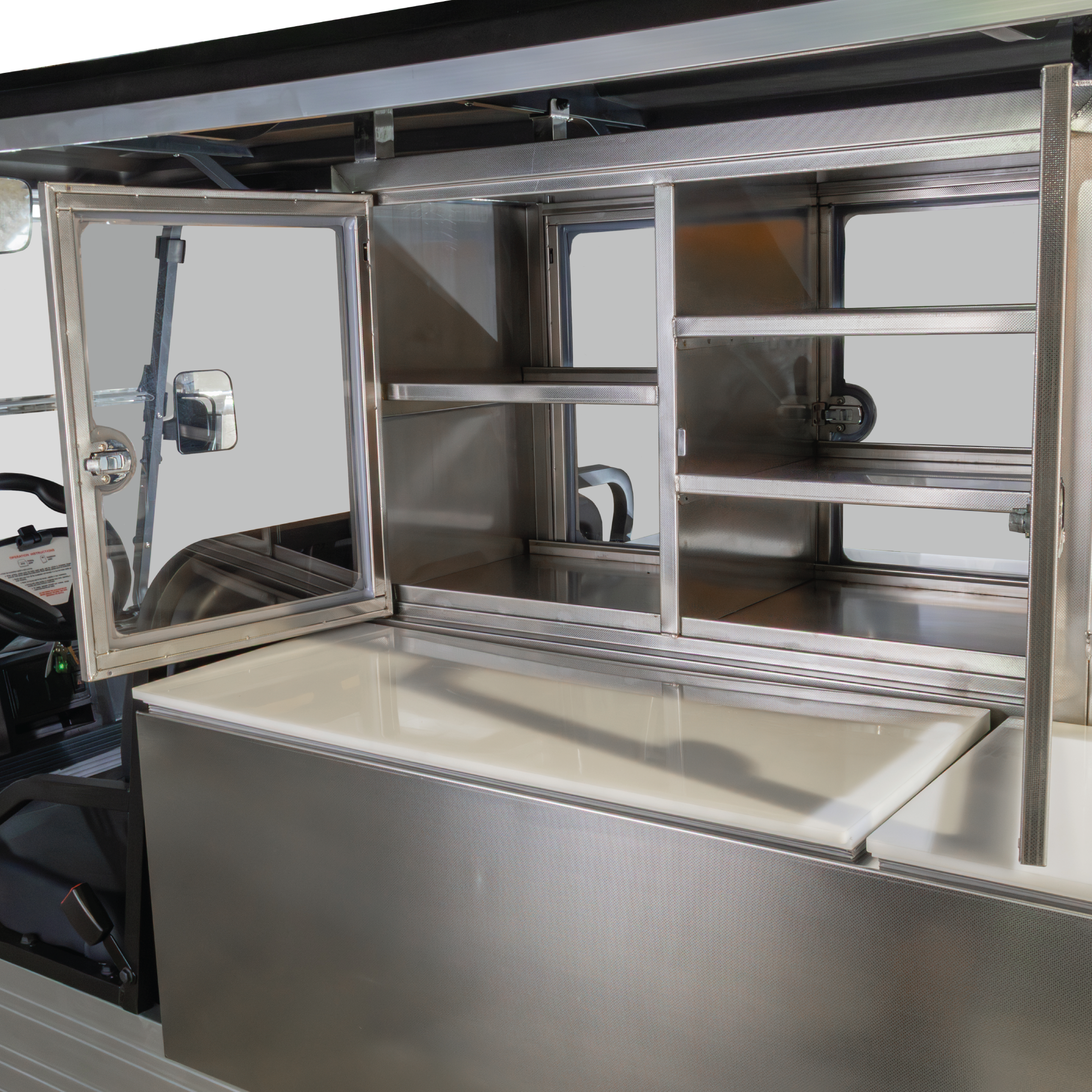

  • Catering Cabinet: Quality food safe stainless steel. Each Drinks bay has a drain plug for easy washout and is designed for storing ice. The top cabinet displays food in a professional yet secure way.



Colours:
Personalise your ECAR Magnum FB 2 Seat Golf Cart to fit your corporate image. All standard colours are metallic paint finishes with matching painted roof.

  • Metallic Black
  • Metallic Gunmetal Grey
  • Metallic Silver
  • Metallic Burgundy
  • Metallic Forest Green
  • Metallic Navy Blue
  • Metallic Champagne
  • Metallic White



Standard Inclusions:

  • Full LED Lighting Kit, Indicators & Horn
  • ECAR OEM PRO-Li Lithium Battery System (100% Factory fitted and Certified to Australian Standards)
  • On-Board ECAR PRO-Li RCM Approved Lithium Battery Charger
  • Centre Dash Console
  • 2x Lockable Glove Boxes
  • 2x Side Wing Mirrors
  • Split Folding Windscreen (new)
  • 10″ Mag Wheels with 205/65-10 4P Turf Tyres

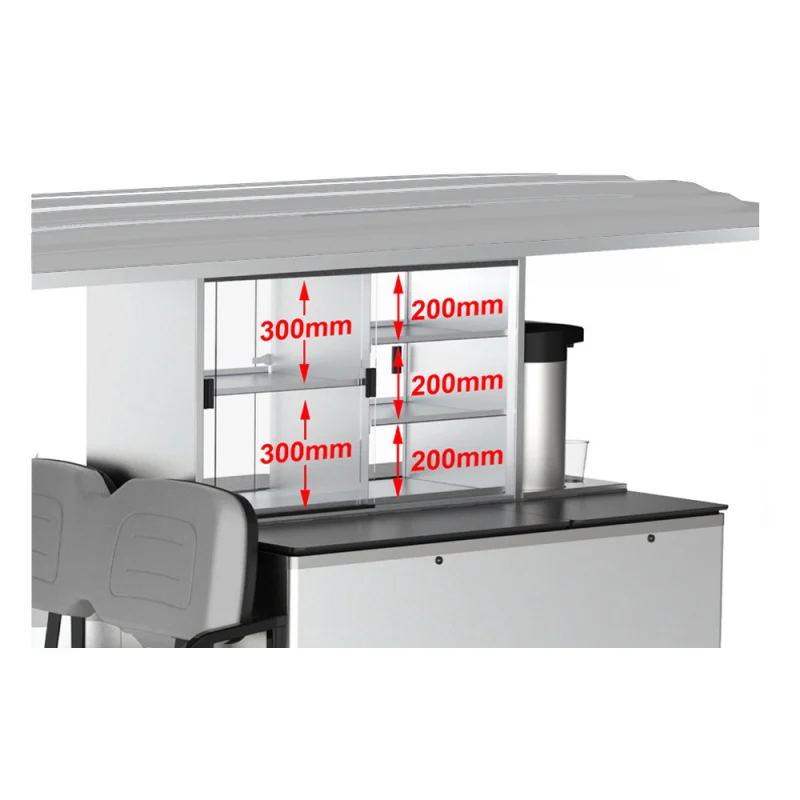

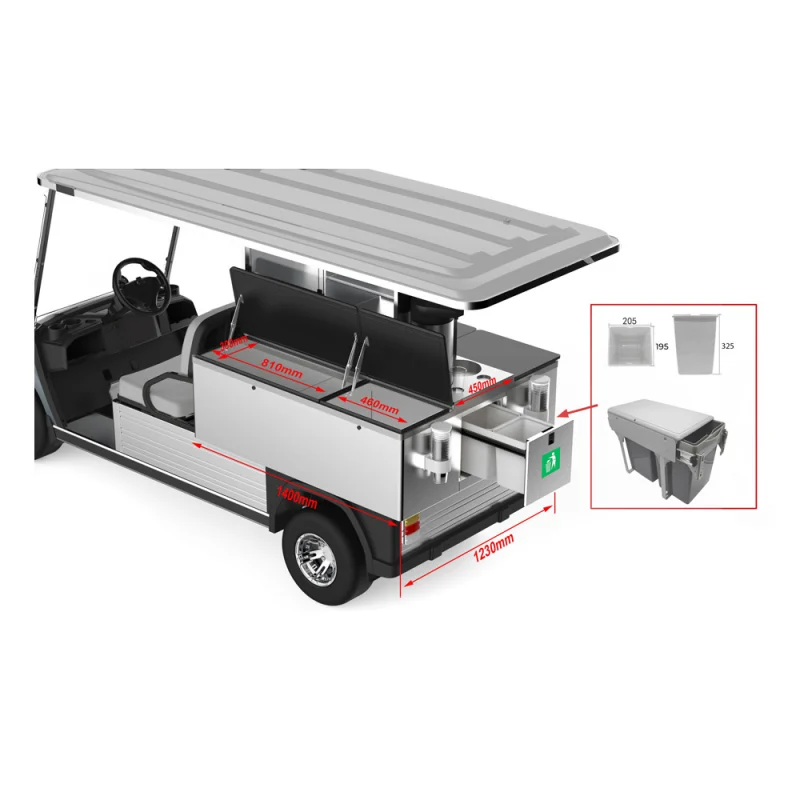

  • Food & Beverage Cabinet with Ice Buckets – 2 @ 810x300mm, 2 @ 460x300mm and Top Shelving – 300m High x 2, 200mm High x 3

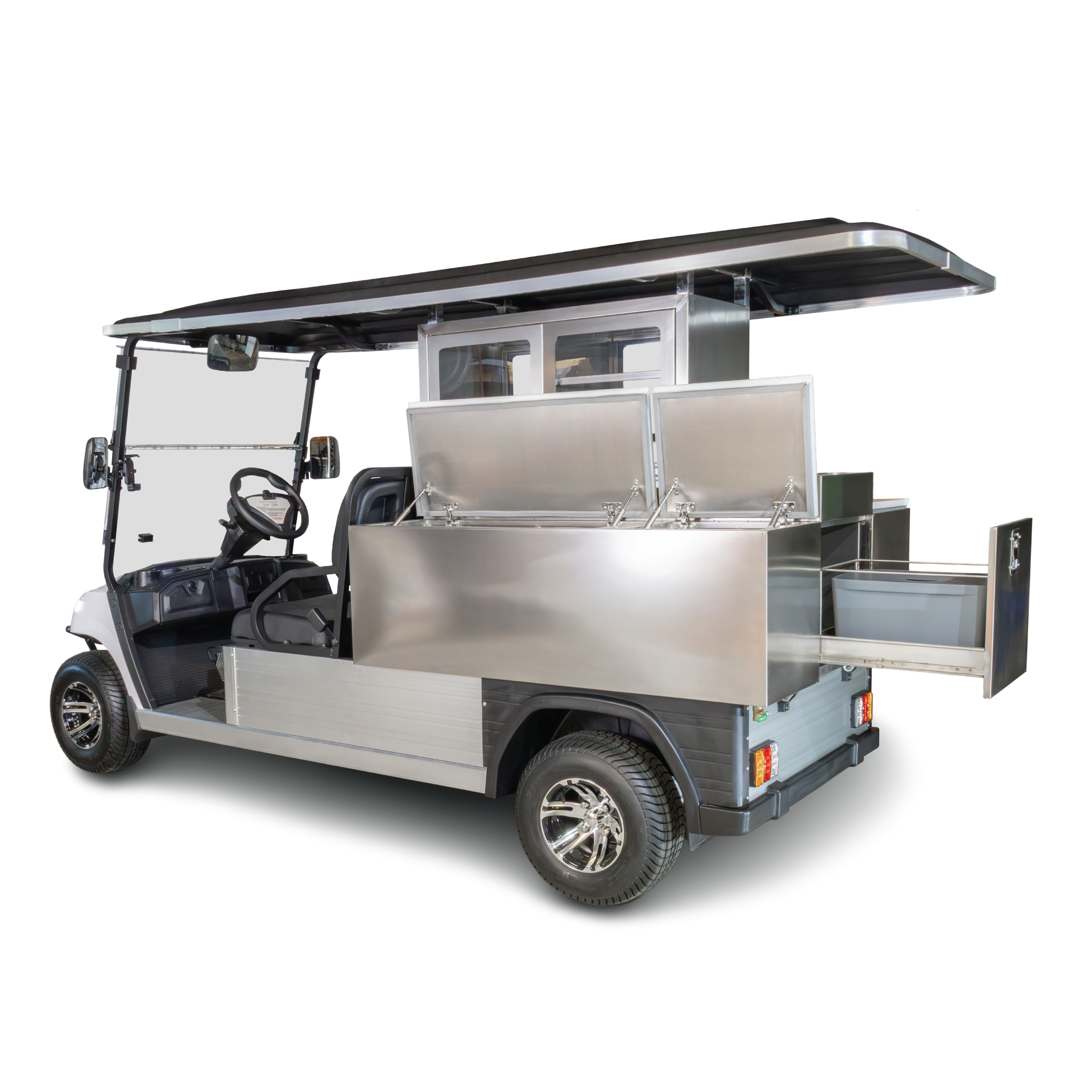

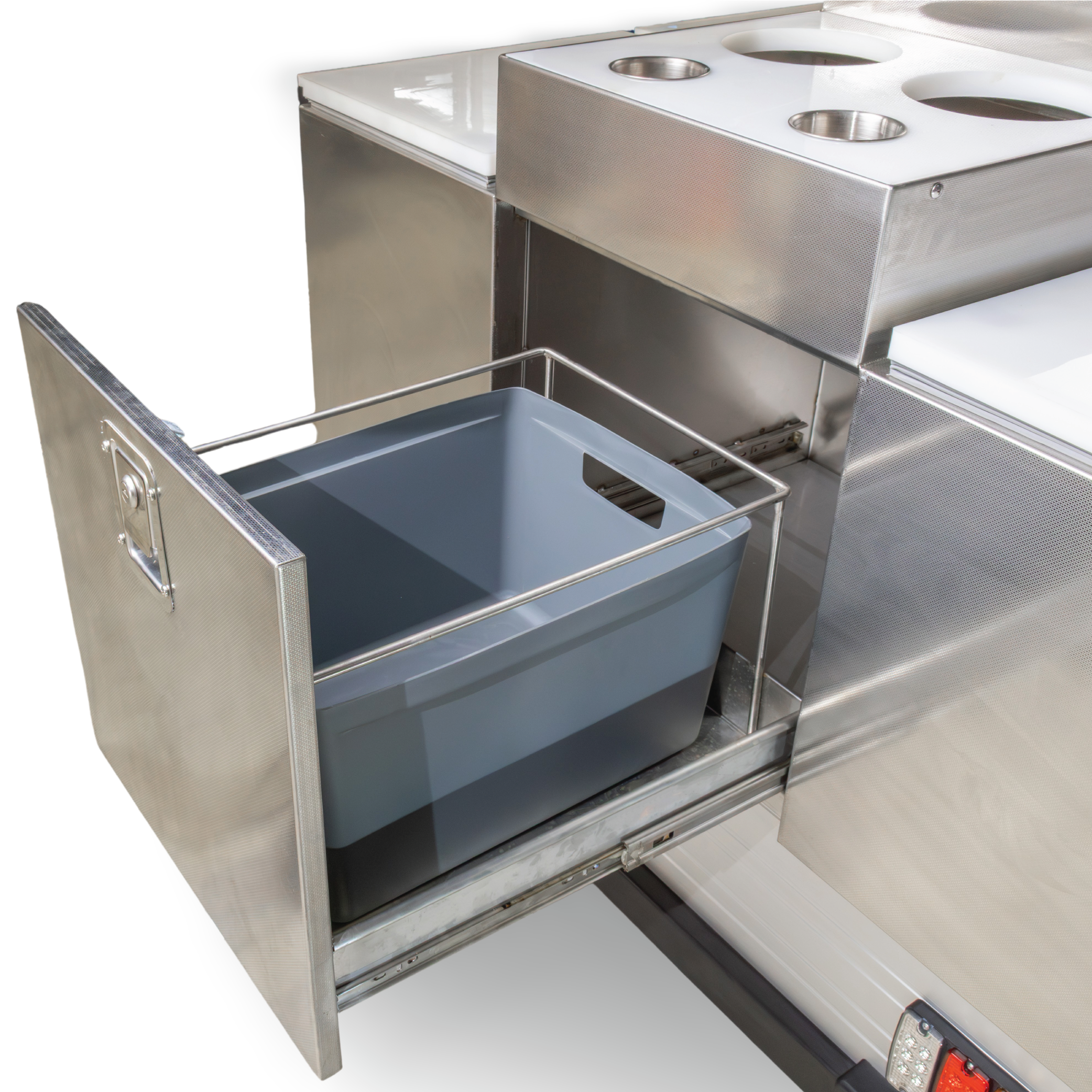

  • Rear Built-in Bin
  • Metallic Paint Finish with Matching Roof Colour (ECAR Only)
  • Full set of removable and washable seat covers



Why Choose the ECAR Magnum FB 2 Seat Golf Cart?

The ECAR Magnum FB 2 Seat Golf Cart isn’t just a golf cart; it’s an future proof solution that guarantees dependable functionality. Whether you’re servicing a championship 18 hole golf facility or transporting food and beverage at an event, this cart is a capable and suitable choice.

The Magnum Series of golf carts is the best selling ECAR Series released and remains a popular choice amongst those who seek style and comfort in an affordable cart. Now available and fitted with a factory standard ECAR PRO-Li Battery system designed and manufactured by us; this cart will withstand anything you throw at it as it’s built to provide reliable performance for many years to come.

Contact your nearest dealer today for a quote on delivery or send us an enquiry here and we will put you in touch with the most suited dealer to save you time.
