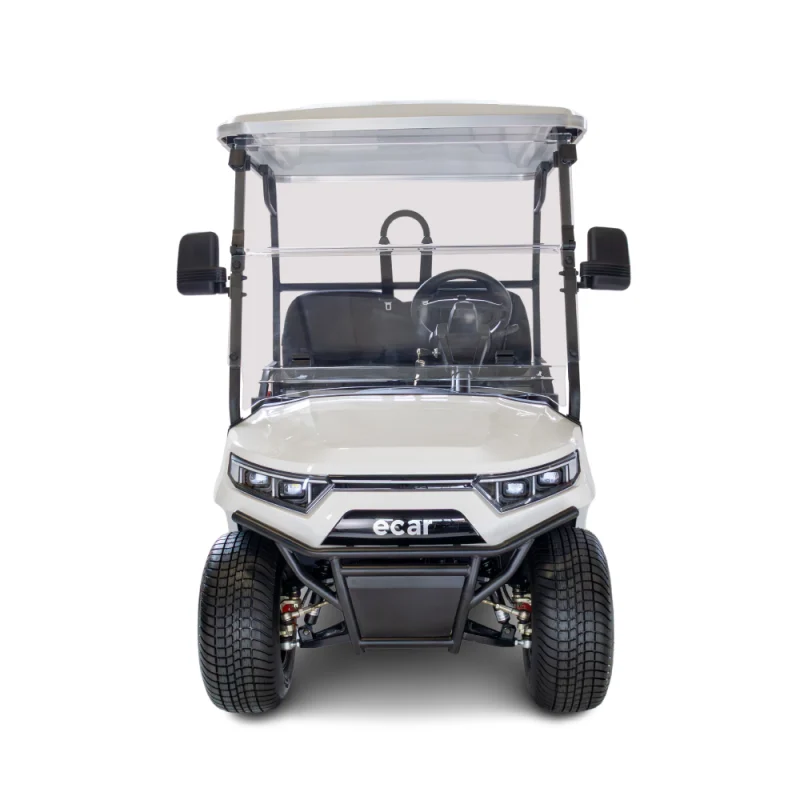

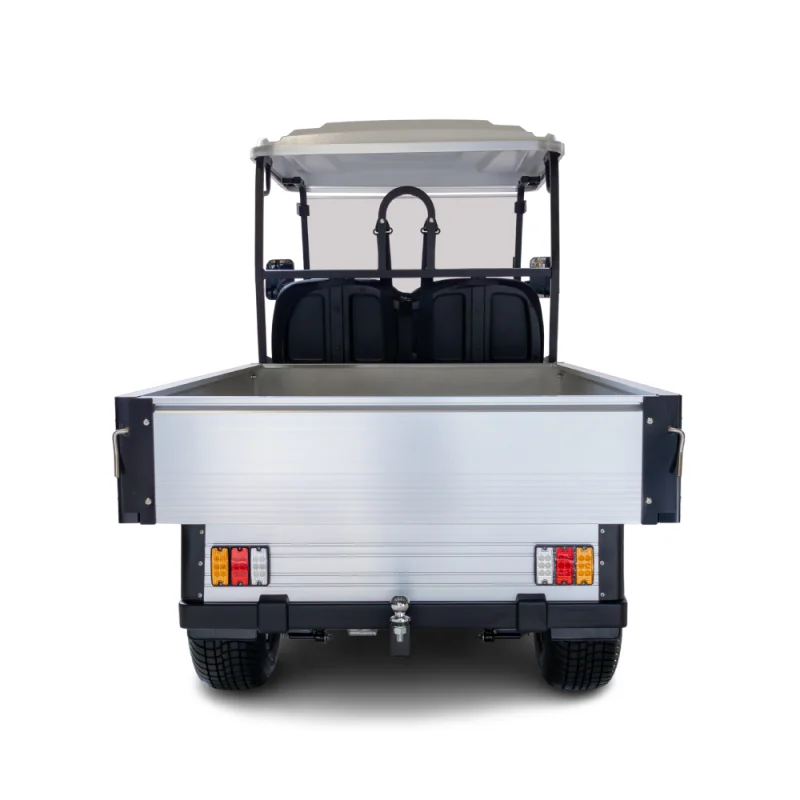

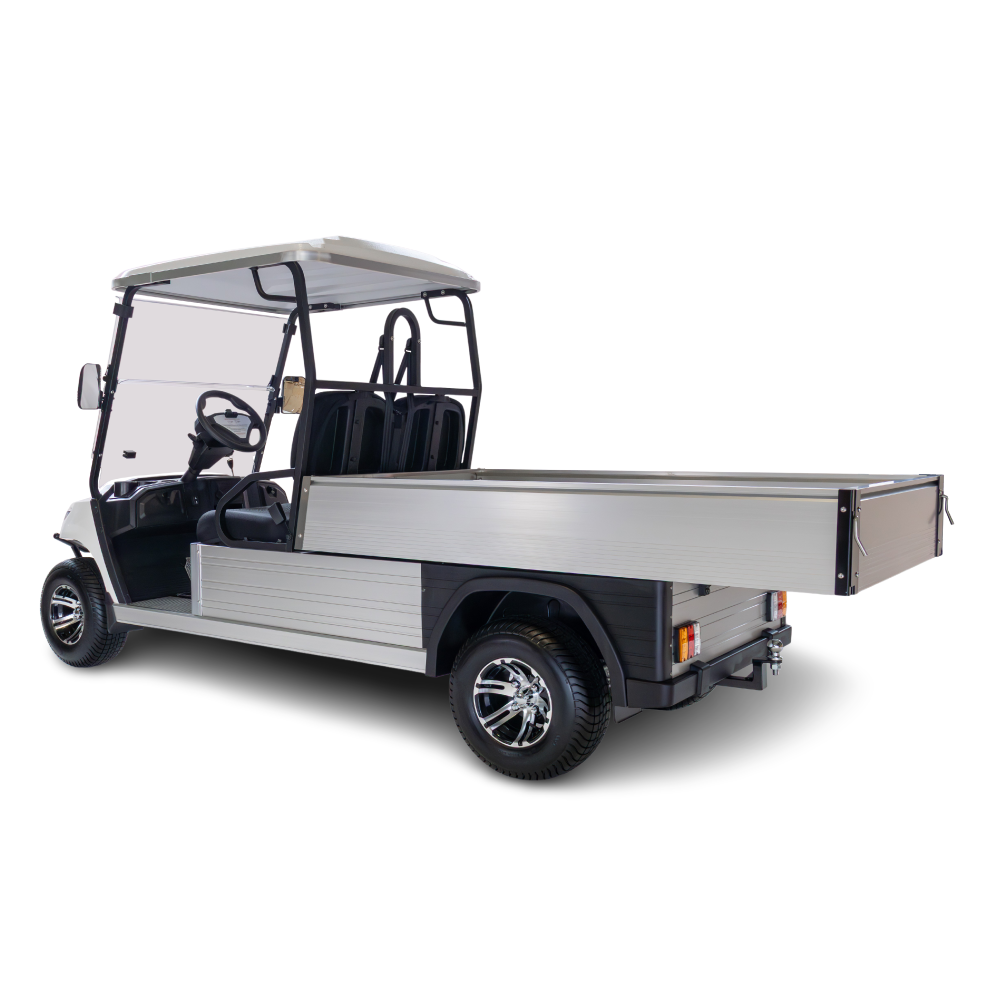

ECAR Magnum H8 2 Seat Utility Golf Cart

From $18,790.00

The ECAR Magnum H8 2 Seat Utility Golf Cart combines low impact transport with practical design, offering room for 2 passengers with a heavy-duty alloy tray. Perfect for transporting medium to heavy cargo with the ability to use the electric tipping function for bulk unloading. Perfect for those who need a dependable vehicle that will continue to assist daily duties.

Persons
Battery System
Motor
48V AC Brushless High Torque 4kW Motor
Controller
48V/350A ECAR AC Controller
Colours
Length (mm): 3650 (including bullbar)
Width (mm): 1230
Height (mm): 1890

Wheelbase overall length (center of front hub to center of rear hub): 2400mm

Wheelbase width between (center of tread to center of tread): Front is 905mm, Rear is 1000mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 2

Tare Weight – No Batteries (kgs): 372

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 35%

Hill Hold Performance (limit): 20% Grade

Minimum Ground Clearance (mm): 150mm

Minimum Turning Radius: 4.5m

Rated Braking Distance: <6m

Avg. Energy Consumption per 100km: 4.5-8.5kW/hr based on terrain and programmed parameters of the controller
Proprietary Controller: ECAR 350A Controller by SEVCON, 48V 350A System

Electric Motor: LT AC Synchronous (Induction) 48V/4kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified to Australian Standards and Factory Installed ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V Output 300W Output
Dashboard: Moulded instrument panel, digital vehicle odometer/speedometer showing speed & accurate Lithium Battery SOC (ECAR only as our battery systems are factory designed and installed systems)

Interior Seating: Grey marine grade vinyl seats. Commercial rated. Seat Covers included as standard for low heat transfer

Interior Floor: Alloy corrugated floor. Optional Rubber floor mat is available as an additional accessory (Consult authorised dealer)

Rear-View Mirror: Interior Convex rear-view Mirror + L/RHS rear-view Mirrors.
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clearcoat

Roof Body Panel: Automotive engineering PP material injection mould with Aluminium side skirts

Front Shield and Wiper: Safety Folding Acrylic Windshield – Suited for golf course use

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, Indicators, Rear Tail Lights, Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Dual Swing Arm with MacPherson Independent suspension on all four wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Integrated rear Transaxle with heavy-duty leaf spring + cylinder hydraulic shock absorbers. Ratio: 16.1 (long chassis)

Wheels & Tyres: 10” ‘Bulldog’ Alloy Rims with 205/65-10 High wall 4P Turf Tyre
Standard Included Accessories: Full set of Premium Mesh washable Seat Covers, Steel Bull Bar, Tow Bar
Optional Extras: 5kW Motor Upgrade; Black/Beige Vinyl Seats; Marine Grade Rain Curtains
Length (mm): 3650 (including bullbar)
Width (mm): 1230
Height (mm): 1890

Wheelbase overall length (center of front hub to center of rear hub): 2400mm

Wheelbase width between (center of tread to center of tread): Front is 905mm, Rear is 1000mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 2

Tare Weight – No Batteries (kgs): 372

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 35%

Hill Hold Performance (limit): 20% Grade

Minimum Ground Clearance (mm): 150mm

Minimum Turning Radius: 4.5m

Rated Braking Distance: <6m

Avg. Energy Consumption per 100km: 4.5-8.5kW/hr based on terrain and programmed parameters of the controller
Proprietary Controller: ECAR 350A Controller by SEVCON, 48V 350A System

Electric Motor: LT AC Synchronous (Induction) 48V/4kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified to Australian Standards and Factory Installed ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V Output 300W Output
Dashboard: Moulded instrument panel, digital vehicle odometer/speedometer showing speed & accurate Lithium Battery SOC (ECAR only as our battery systems are factory designed and installed systems)

Interior Seating: Grey marine grade vinyl seats. Commercial rated. Seat Covers included as standard for low heat transfer

Interior Floor: Alloy corrugated floor. Optional Rubber floor mat is available as an additional accessory (Consult authorised dealer)

Rear-View Mirror: Interior Convex rear-view Mirror + L/RHS rear-view Mirrors.
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clearcoat

Roof Body Panel: Automotive engineering PP material injection mould with Aluminium side skirts

Front Shield and Wiper: Safety Folding Acrylic Windshield – Suited for golf course use

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, Indicators, Rear Tail Lights, Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Dual Swing Arm with MacPherson Independent suspension on all four wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Integrated rear Transaxle with heavy-duty leaf spring + cylinder hydraulic shock absorbers. Ratio: 16.1 (long chassis)

Wheels & Tyres: 10” ‘Bulldog’ Alloy Rims with 205/65-10 High wall 4P Turf Tyre
Standard Included Accessories: Full set of Premium Mesh washable Seat Covers, Steel Bull Bar, Tow Bar
Optional Extras: 5kW Motor Upgrade; Black/Beige Vinyl Seats; Marine Grade Rain Curtains

Description

Discover the ECAR Magnum H8 2 Seat Utility Golf Cart: The Perfect workhorse for transporting bulk material.

Introducing the ECAR Magnum H8 2 Seat Utility Golf Cart, a premium vehicle that offers a robust design with practical features. Built to accommodate 2 passengers, this cart is ideal for navigating resorts, theme parks, public facilities and private communities/properties, providing a versatile solution for multiple uses.



Key Features:

  • Spacious Seating for 2: The ECAR Magnum H8 2 Seat Utility Golf Cart is designed with comfort in mind, offering ample room for 2 adult passengers. The ergonomic seating ensures a comfortable ride for all to make your work day easier.
  • Commercial Design: Crafted with a focus on style, the Magnum H8 features a design that complements daily commercial use. With alloy plated rear body design it is as tough as it is practical.
  • Reliable Performance: Powered by a high-performance motor, this cart delivers consistent handling and reliable operation across various terrains, ensuring a smooth and dependable ride.

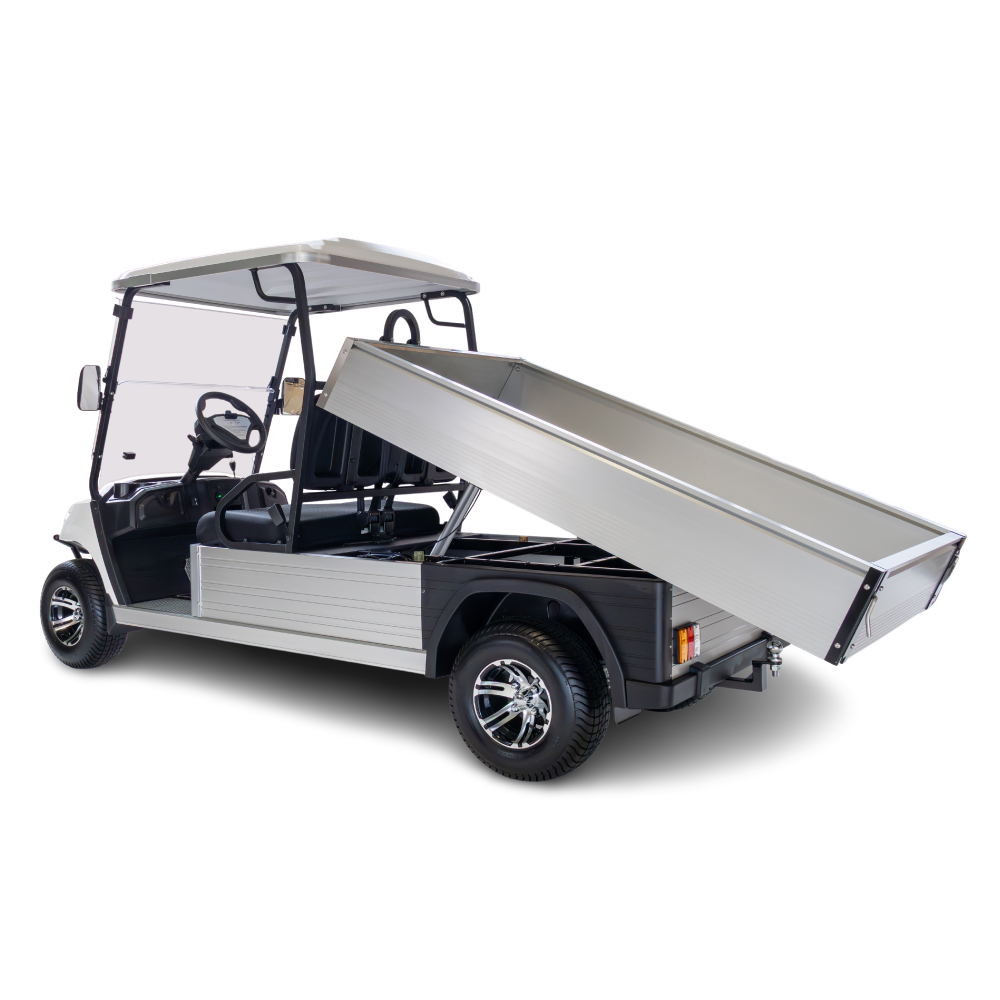

  • Heavy-duty Alloy Tipping Tray: The ECAR H8 Aluminium construction tipping tray is 1800mm (L) x 1165mm (W) and can handle heavy loads up to 500 kg load (on flat terrain) with a 250 kg tipping capacity. Made to handle larger items or bulk material.



Colours:
Personalise your ECAR Magnum H8 2 Seat Utility Golf Cart to fit your style. All standard colours are metallic paint finishes with matching painted roof.

  • Metallic Black
  • Metallic Gunmetal Grey
  • Metallic Silver
  • Metallic Burgundy
  • Metallic Forest Green
  • Metallic Navy Blue
  • Metallic Champagne
  • Metallic White



Standard Inclusions:

  • Digital Speedometer, State of Charge Meter, and Odometer
  • ECAR OEM PRO-Li Lithium Battery System (100% Factory fitted and Certified to Australian Standards)
  • On-Board ECAR PRO-Li RCM Approved Lithium Battery Charger
  • Sleek, Modern Dashboard
  • Front and Rear LED Lighting for Safety
  • Durable Marine Grade Upholstery with Folding Armrests
  • Retractable 3-point Seat Belts
  • 2x Side Wing Mirrors
  • Internal Convex Mirror
  • Foldable/Hinged (new design) Windscreen
  • Poly Color matched painted roof (ECAR exclusive)
  • Metallic Paint Finish is standard
  • Electric Tipping Function Tray – 1800 (L) x 1165 (W) x 265mm (H) Aluminium Rear Utility Tray with folding Rear Tailgate



Why Choose the ECAR Magnum H8 2 Seat Utility Golf Cart?

The ECAR Magnum H8 2 Seat Utility Golf Cart isn’t just a standard light-duty golf cart; it’s an economical heavy duty solution that guarantees dependable functionality. Whether you’re navigating the varied terrains of a golf course or cruising around maintaining your community, the ECAR Magnum H8 2 Seat Utility Golf Cart is a long term investment that does not compromise on performance or durability.

The Magnum Series of golf carts is the best selling ECAR Series released and remains a popular choice amongst those who seek style and comfort in an affordable cart. Now available and fitted with a factory standard ECAR PRO-Li Battery system designed and manufactured by us; this cart will withstand anything you throw at it as it’s built to provide reliable performance for many years to come.

Contact your nearest dealer today for a quote on delivery or send us an enquiry here and we will put you in touch with the most suited dealer to save you time.
