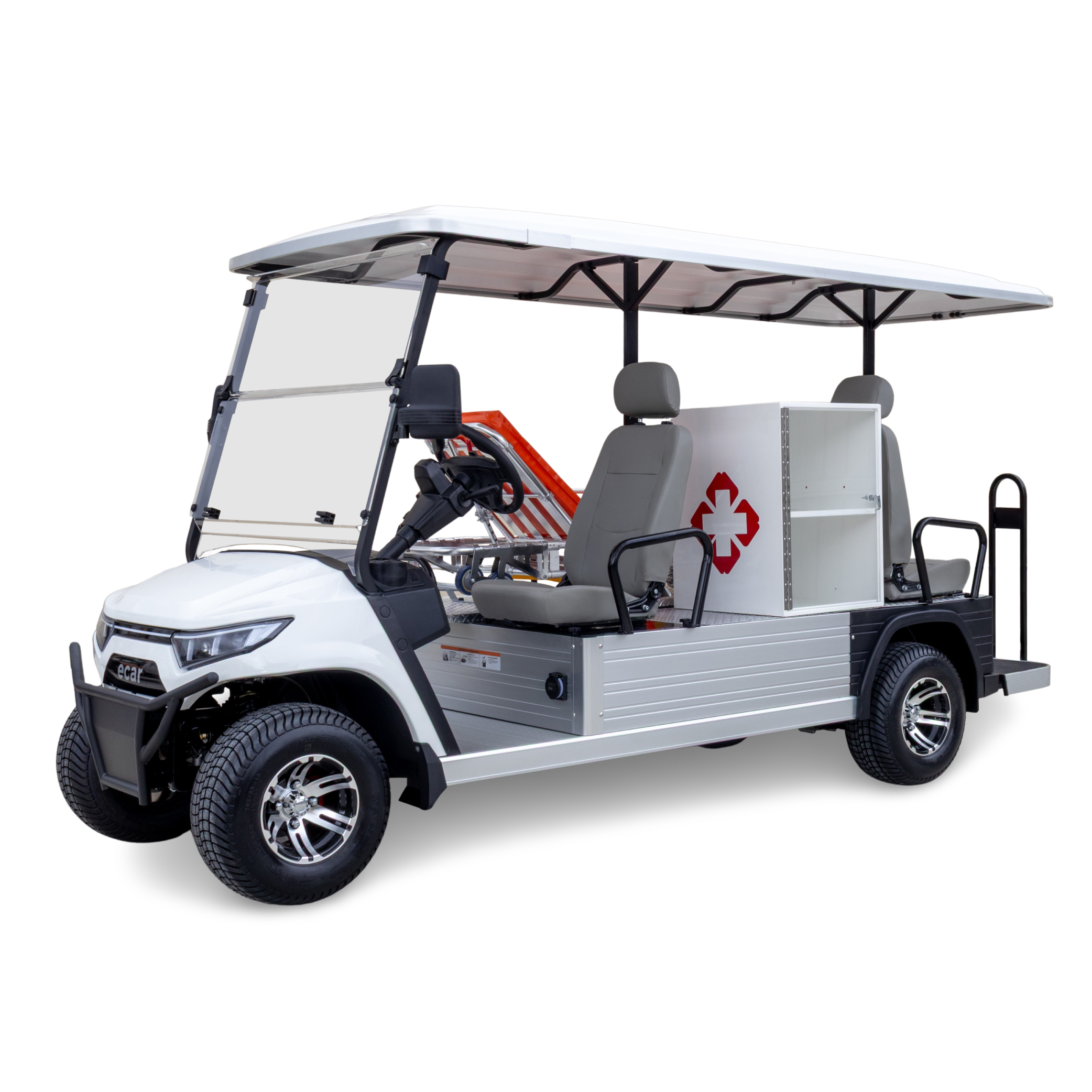

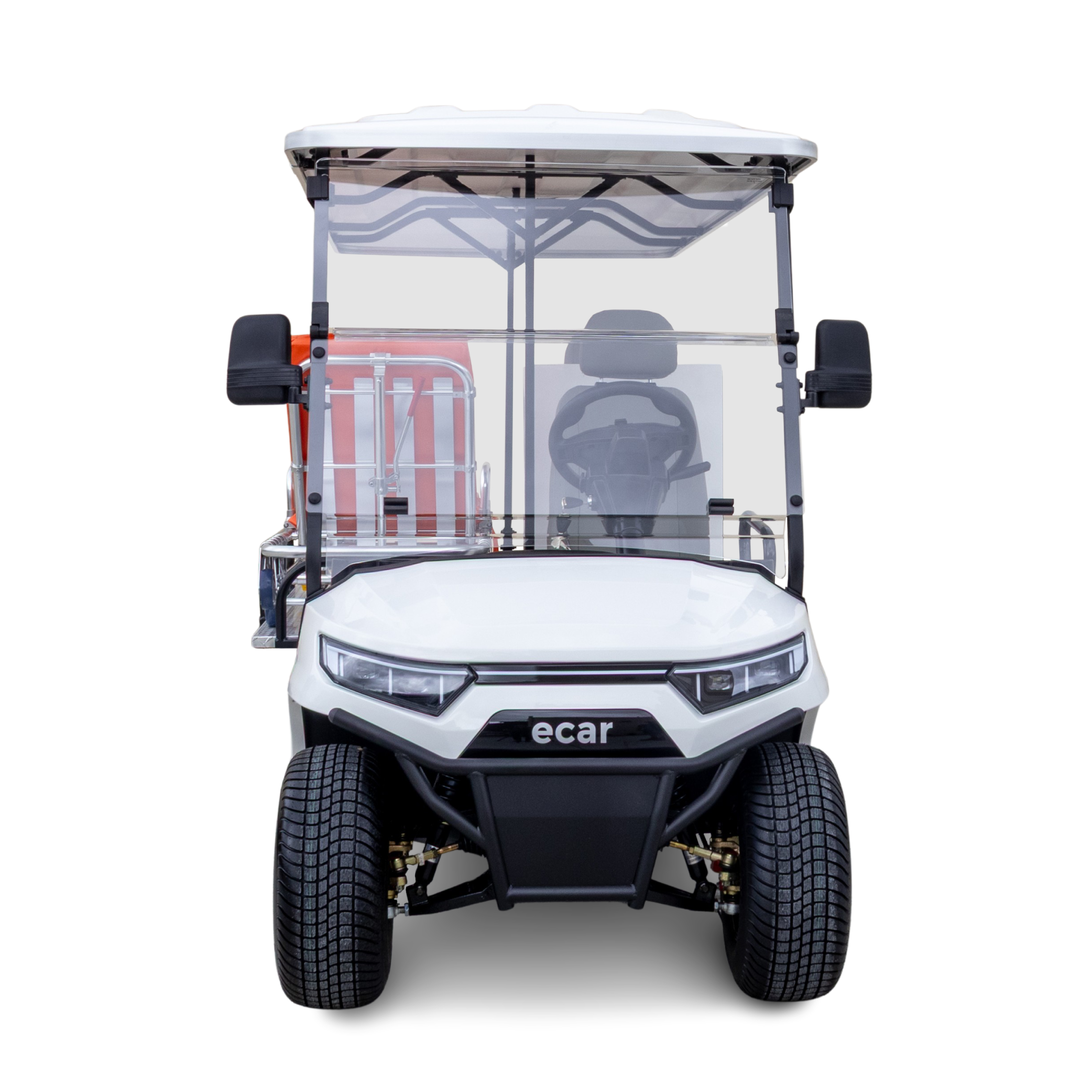

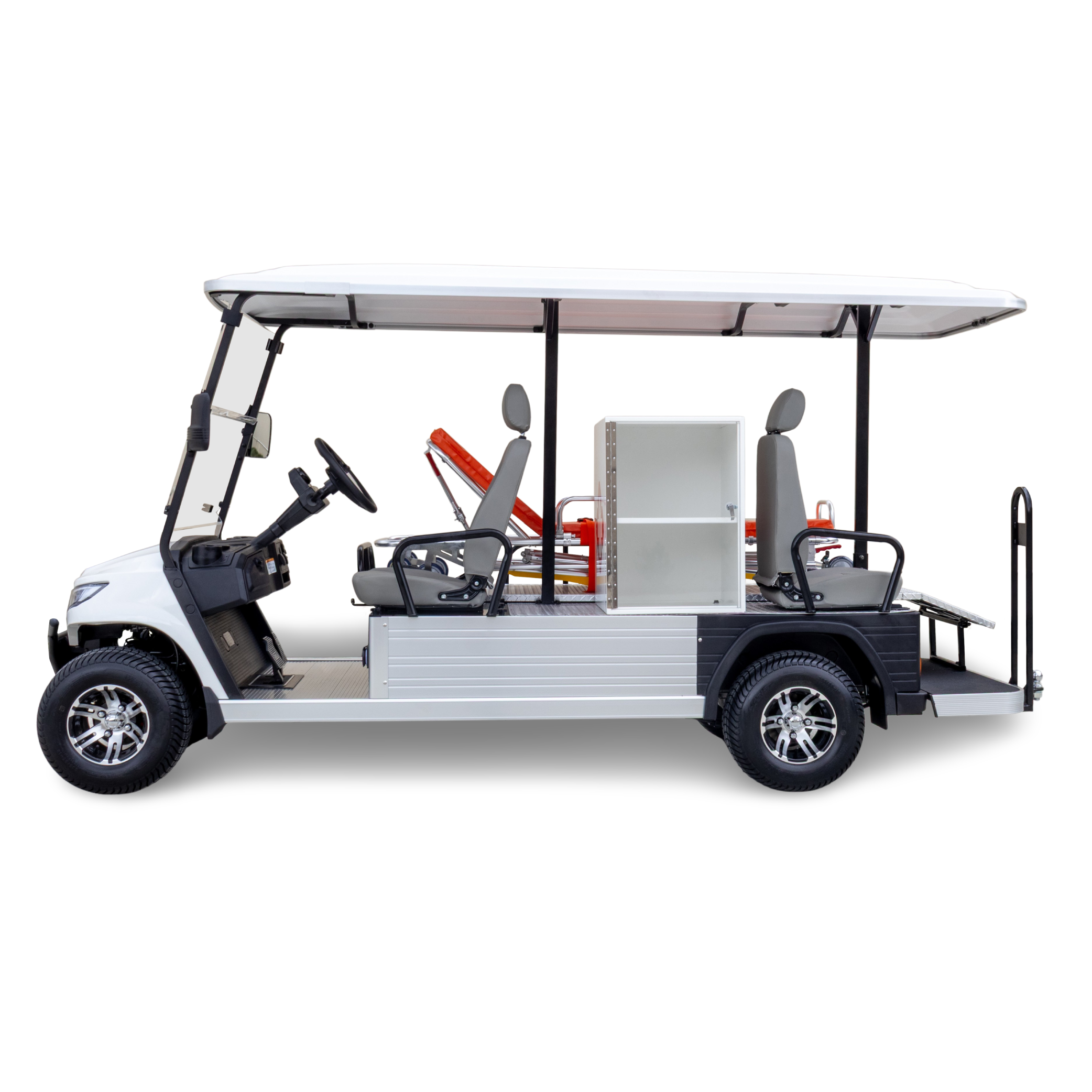

ECAR Magnum MEDIC Golf Cart

From $21,990.00

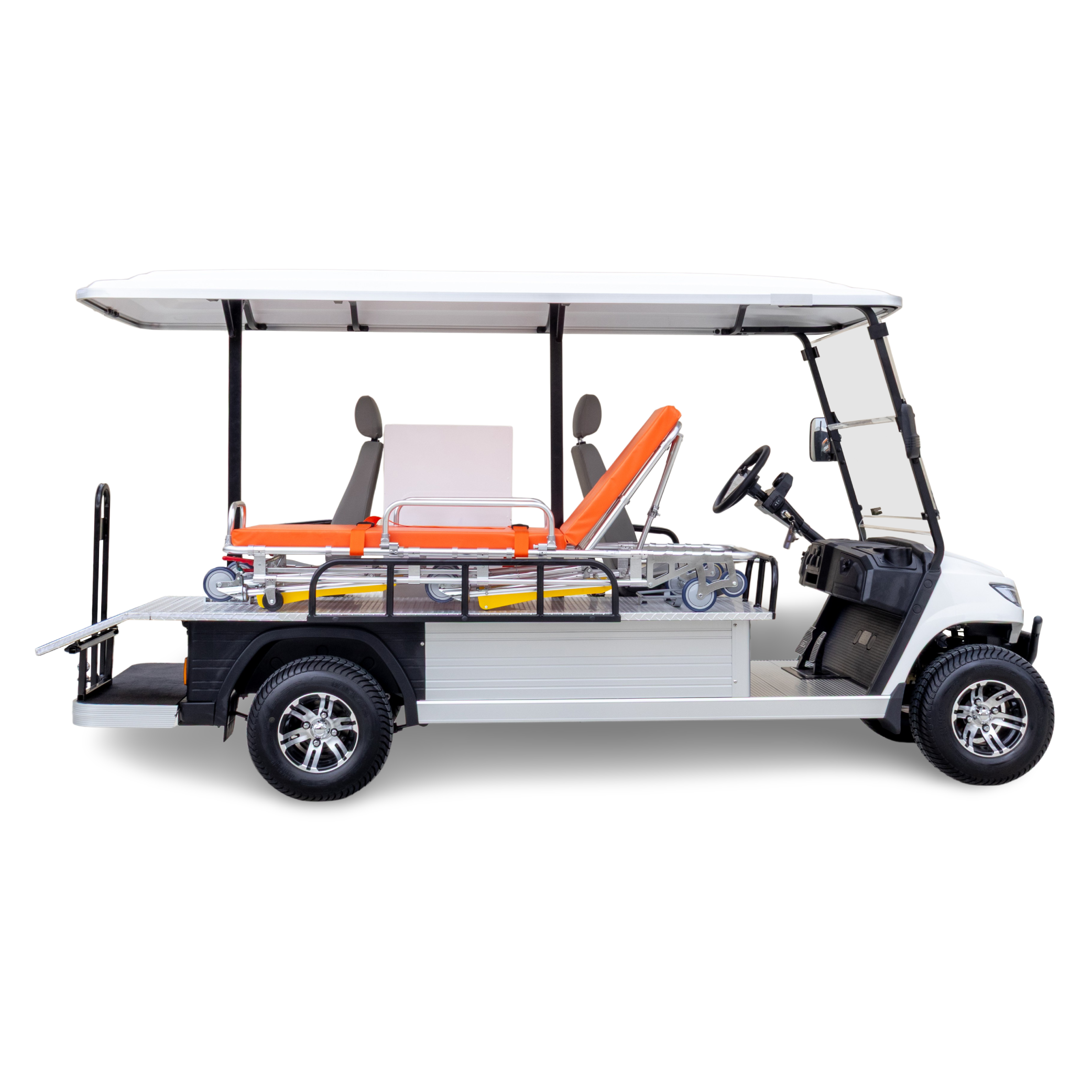

The ECAR Lithium Magnum MEDIC is an affordable electric emergency medical transport solution perfect for multiple uses as it provides a swift, smooth transition for those needing medical attention. It’s a purpose-built solution designed for schools, hotels, leisure parks, local footy ovals or even event organisers nationwide.

Each cart comes fully equipped for emergency duty with a removable stretcher, a mounted medic box, and a specialised seat for a dedicated carer to monitor the patient in transit.

Persons
Battery System
Motor
48V AC Brushless High Torque 4kW Motor
Controller
48V/350A ECAR AC Controller
Colours
Length (mm): 3750 (including bullbar and tow bar)
Width (mm): 1310 (widest point)
Height (mm): 1930

Wheelbase overall length (center of front hub to center of rear hub): 2400mm

Wheelbase width between (center of tread to center of tread): Front 905mm, Rear 1000mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 3 (1 x Driver, 1 x Carer and 1 x Patient)

Tare Weight – No Batteries (kgs): 495

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 20%

Hill Hold Performance (limit): 15% Grade

Minimum Ground Clearance (mm): Approximately 120mm

Minimum Turning Radius: 5.8m

Rated Braking Distance: <6m

Avg. Energy Consumption per 100km: 8.0-9.5kW/hr based on terrain and programmed parameters of the controller
Proprietary Controller: ECAR 350A Controller by SEVCON, 48V 350A System

Electric Motor: LT AC Synchronous (Induction) 48V/4kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified to Australian Standards and Factory Installed ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V Output 300W Output

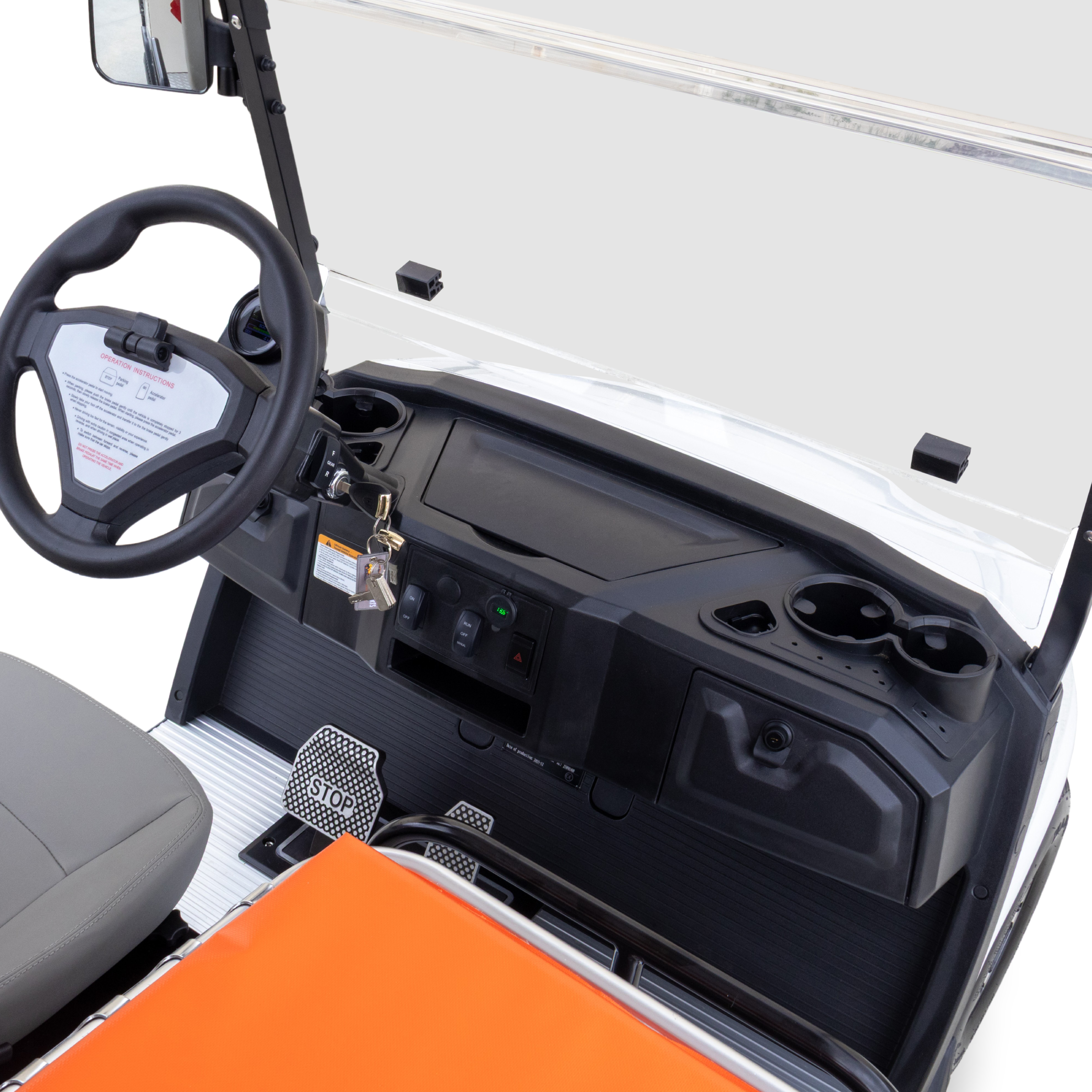

Dashboard: Moulded instrument panel, digital vehicle odometer/speedometer showing speed & accurate Lithium Battery SOC (ECAR only as our battery systems are factory designed and installed systems)

Interior Seating: Grey marine grade vinyl seats. Commercial rated.

Interior Floor: Alloy corrugated floor. Optional Rubber floor mat is available as an additional accessory (Consult authorised dealer)

Rear-View Mirror: L/RHS rear-view Mirrors.
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clearcoat

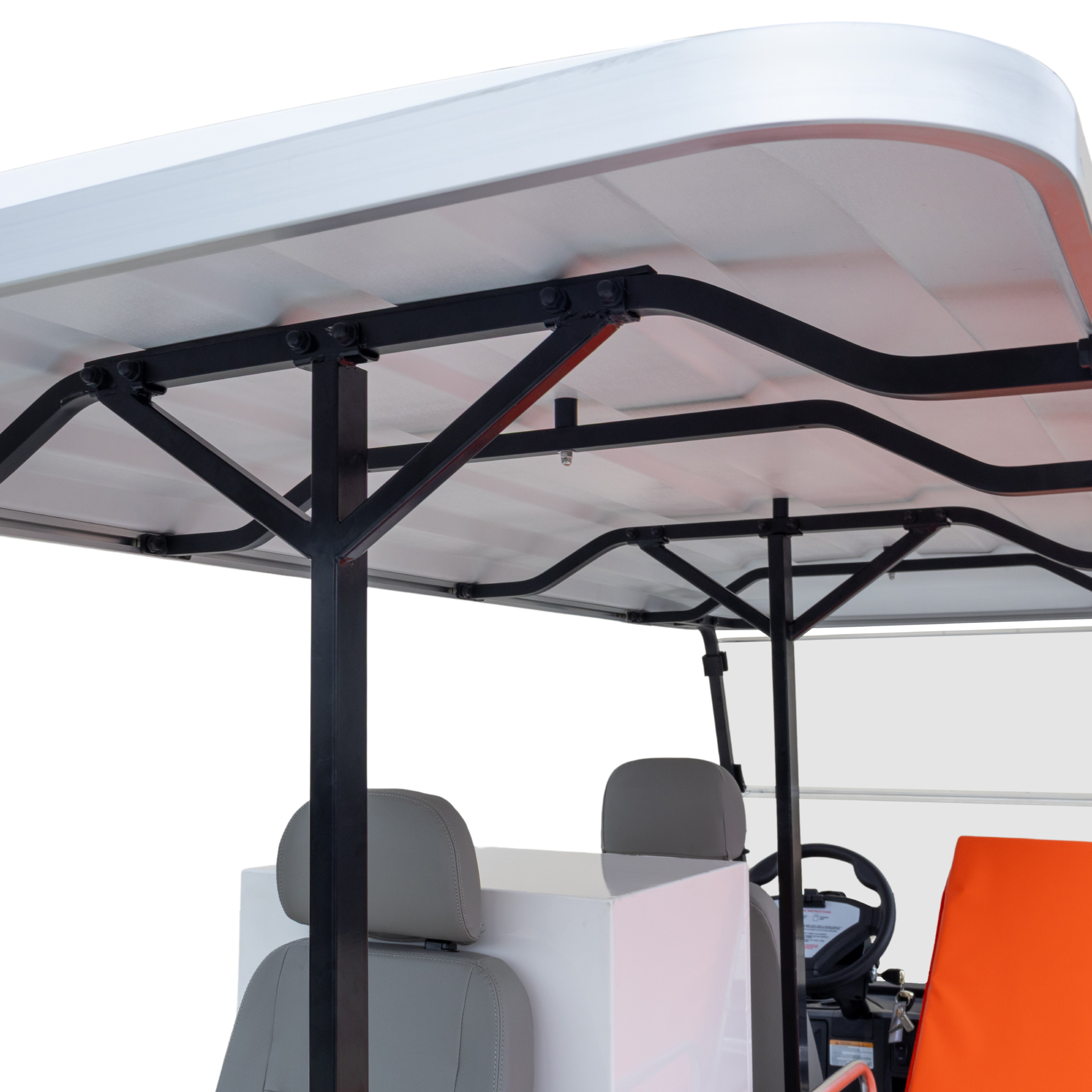

Roof Body Panel: Automotive engineering PP material injection mould with Aluminium side skirts

Front Shield and Wiper: Safety Folding Acrylic Windshield

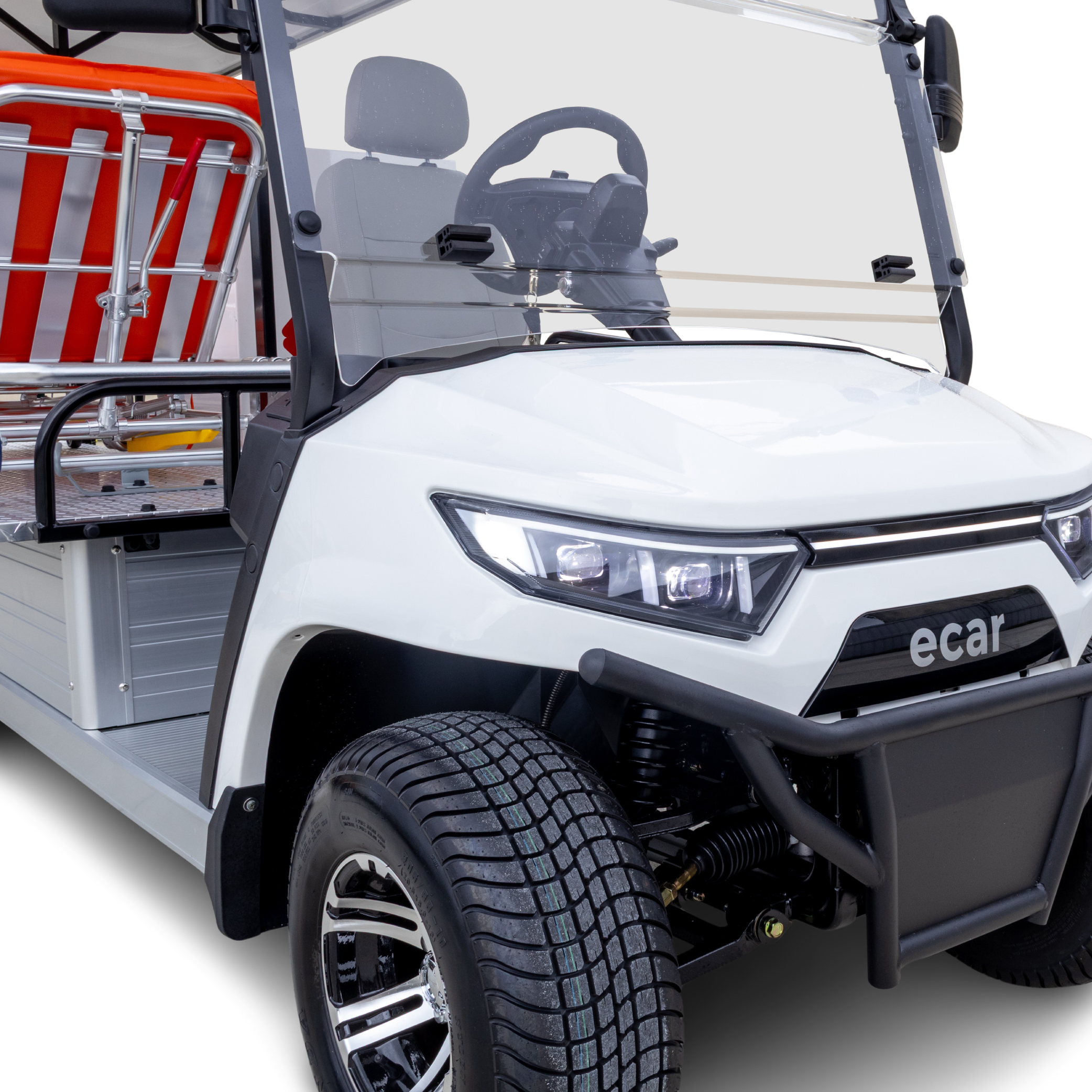

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, Indicators, Rear Tail Lights, Brake & Hazard Lights, Horn & Reversing Buzzer. Rooftop Safety Light installed by specific dealers (subject to dealer inclusions but this lights can be installed on this model)

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Dual Swing Arm with MacPherson Independent suspension on both front wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Rear heavy duty leaf spring + cylinder hydraulic shock absorbers with rear stabiliser bar. Integrated rear Transaxle. Ratio: 16:1 (LWB)

Wheels & Tyres: 10” ‘Bulldog’ Alloy Rims with 205/65-10 High wall 4P Turf Tyre

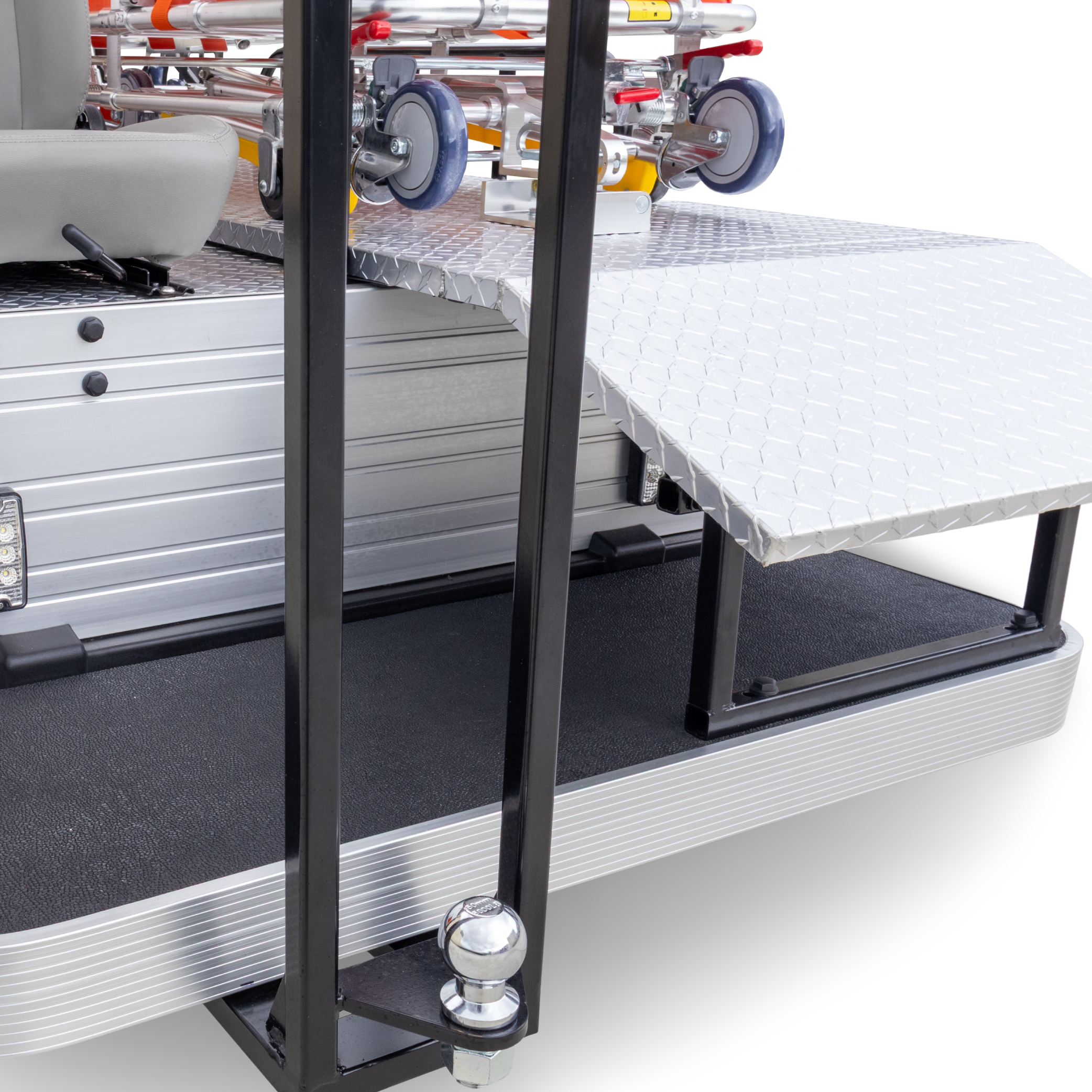

Standard Included Accessories: Steel powder-coated Bull Bar, Tow Bar; Collapsible aluminium High Strength Frame stretcher, Medic Box
Optional Extras: 5kW Motor Upgrade; Black/Beige Vinyl Seats; Marine Grade Rain Curtains. Note these extras are special order only and will incur additional lead time.
Length (mm): 3750 (including bullbar and tow bar)
Width (mm): 1310 (widest point)
Height (mm): 1930

Wheelbase overall length (center of front hub to center of rear hub): 2400mm

Wheelbase width between (center of tread to center of tread): Front 905mm, Rear 1000mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 7 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 3 (1 x Driver, 1 x Carer and 1 x Patient)

Tare Weight – No Batteries (kgs): 495

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 20%

Hill Hold Performance (limit): 15% Grade

Minimum Ground Clearance (mm): Approximately 120mm

Minimum Turning Radius: 5.8m

Rated Braking Distance: <6m

Avg. Energy Consumption per 100km: 8.0-9.5kW/hr based on terrain and programmed parameters of the controller
Proprietary Controller: ECAR 350A Controller by SEVCON, 48V 350A System

Electric Motor: LT AC Synchronous (Induction) 48V/4kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified to Australian Standards and Factory Installed ECAR PRO-Li Lithium Core 105Ah or Plus+ 150Ah Systems.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 48V/12V Output 300W Output
Dashboard: Moulded instrument panel, digital vehicle odometer/speedometer showing speed & accurate Lithium Battery SOC (ECAR only as our battery systems are factory designed and installed systems)

Interior Seating: Grey marine grade vinyl seats. Commercial rated.

Interior Floor: Alloy corrugated floor. Optional Rubber floor mat is available as an additional accessory (Consult authorised dealer)

Rear-View Mirror: L/RHS rear-view Mirrors.
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clearcoat

Roof Body Panel: Automotive engineering PP material injection mould with Aluminium side skirts

Front Shield and Wiper: Safety Folding Acrylic Windshield

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, Indicators, Rear Tail Lights, Brake & Hazard Lights, Horn & Reversing Buzzer. Rooftop Safety Light installed by specific dealers (subject to dealer inclusions but this lights can be installed on this model)

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes with Automatic Electromagnetic Parking Brake.

Front Suspension System: Dual Swing Arm with MacPherson Independent suspension on both front wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Rear heavy duty leaf spring + cylinder hydraulic shock absorbers with rear stabiliser bar. Integrated rear Transaxle. Ratio: 16:1 (LWB)

Wheels & Tyres: 10” ‘Bulldog’ Alloy Rims with 205/65-10 High wall 4P Turf Tyre
Standard Included Accessories: Steel powder-coated Bull Bar, Tow Bar; Collapsible aluminium High Strength Frame stretcher, Medic Box
Optional Extras: 5kW Motor Upgrade; Black/Beige Vinyl Seats; Marine Grade Rain Curtains. Note these extras are special order only and will incur additional lead time.

Description

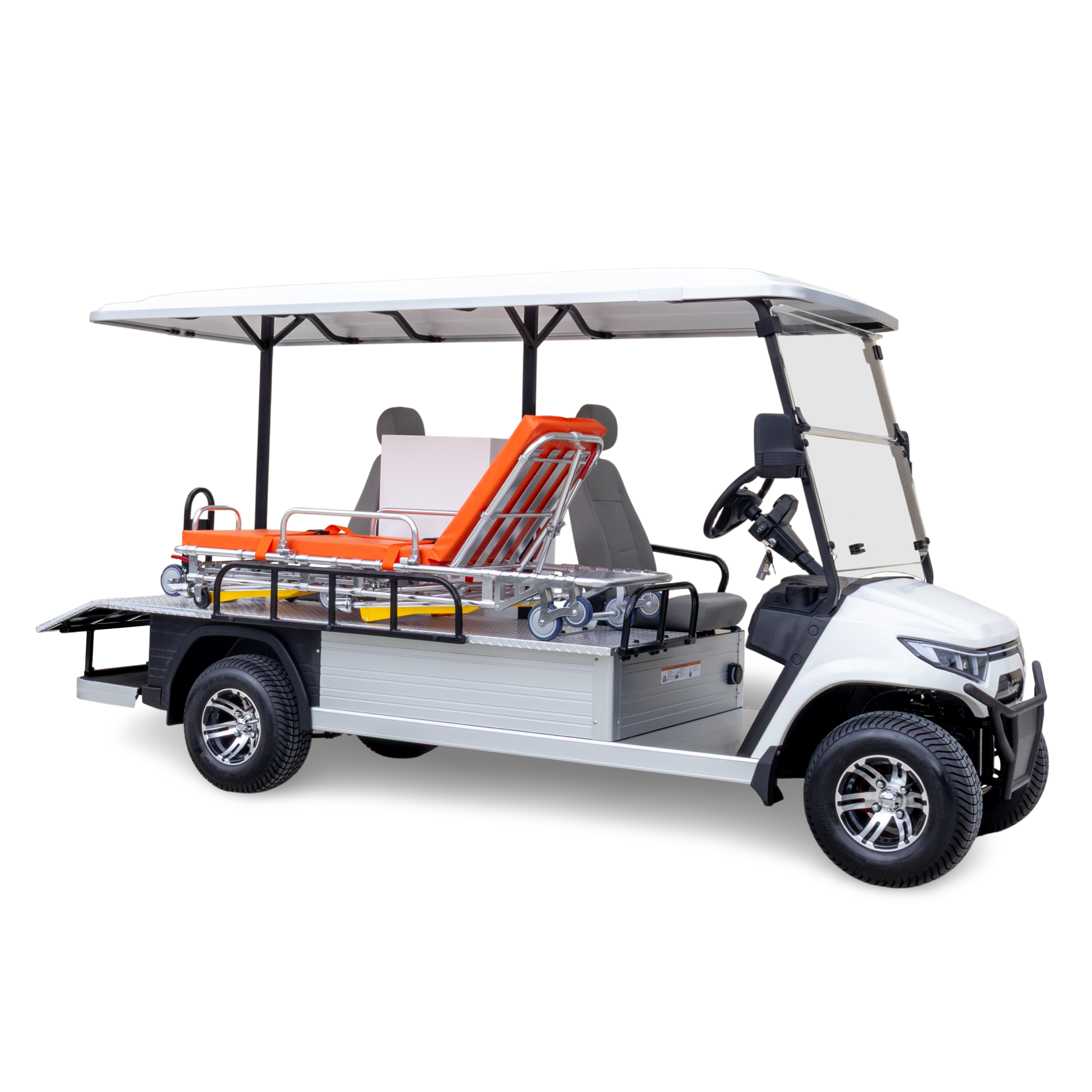

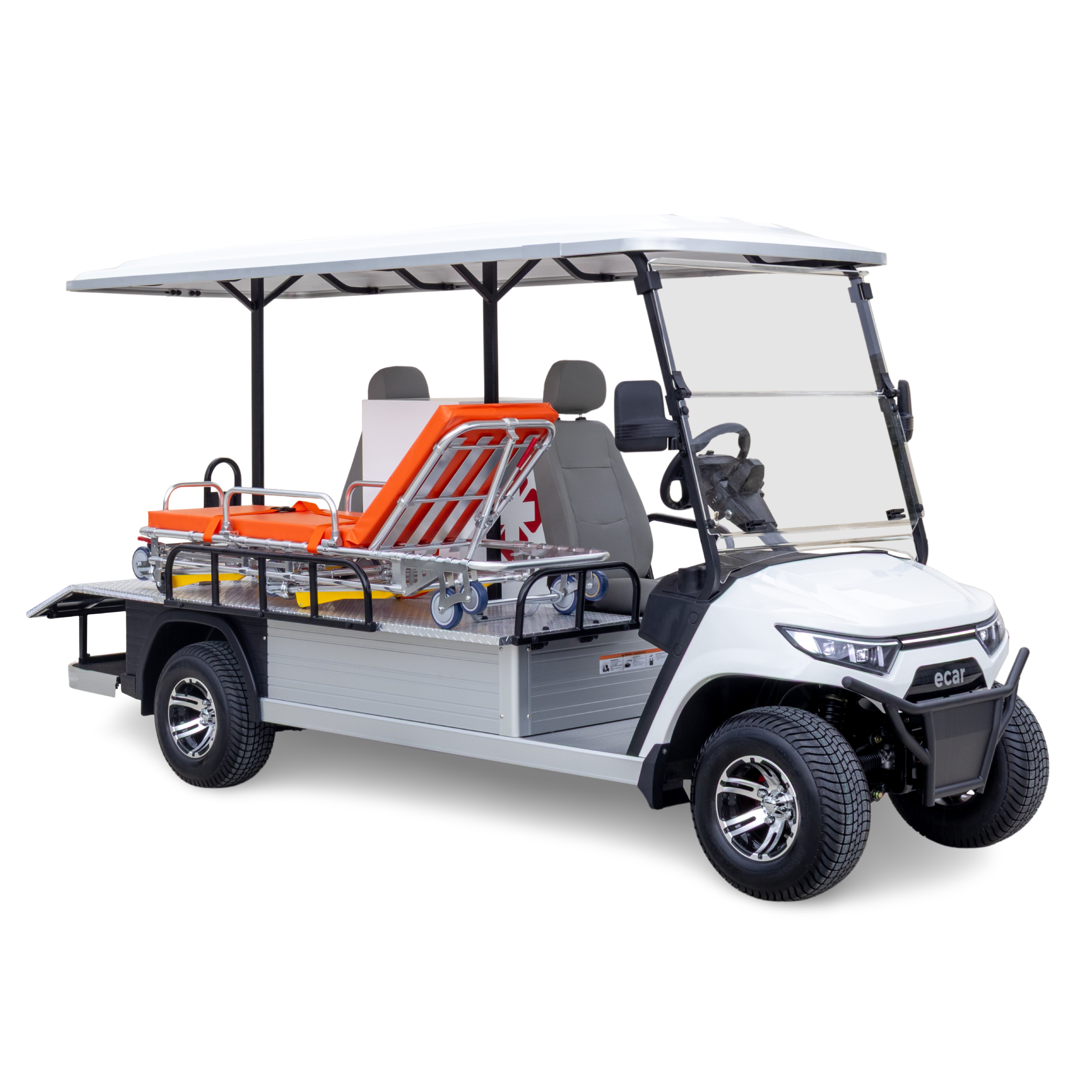

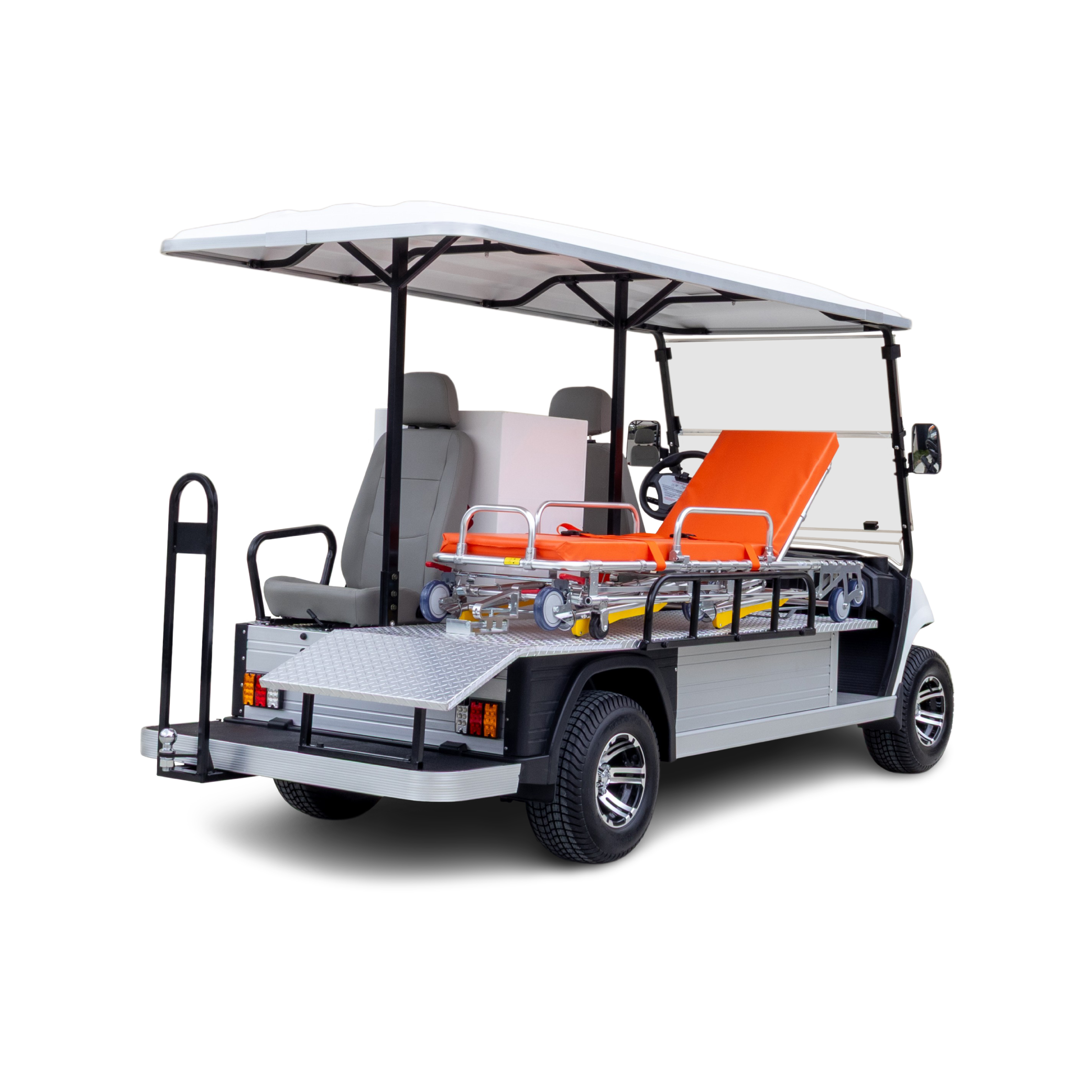

Discover the ECAR Magnum MEDIC Golf Cart – Comfortable Transport For Medical-Related Needs

Introducing the ECAR Magnum MEDIC Golf Cart model, a premium vehicle that combines durability, safety and reliability. Designed to accommodate up to two passengers and a single patient, this cart is ideal for schools, hotels, leisure parks or sporting clubs and event organisers looking to transport injured personnel.

Key Features:

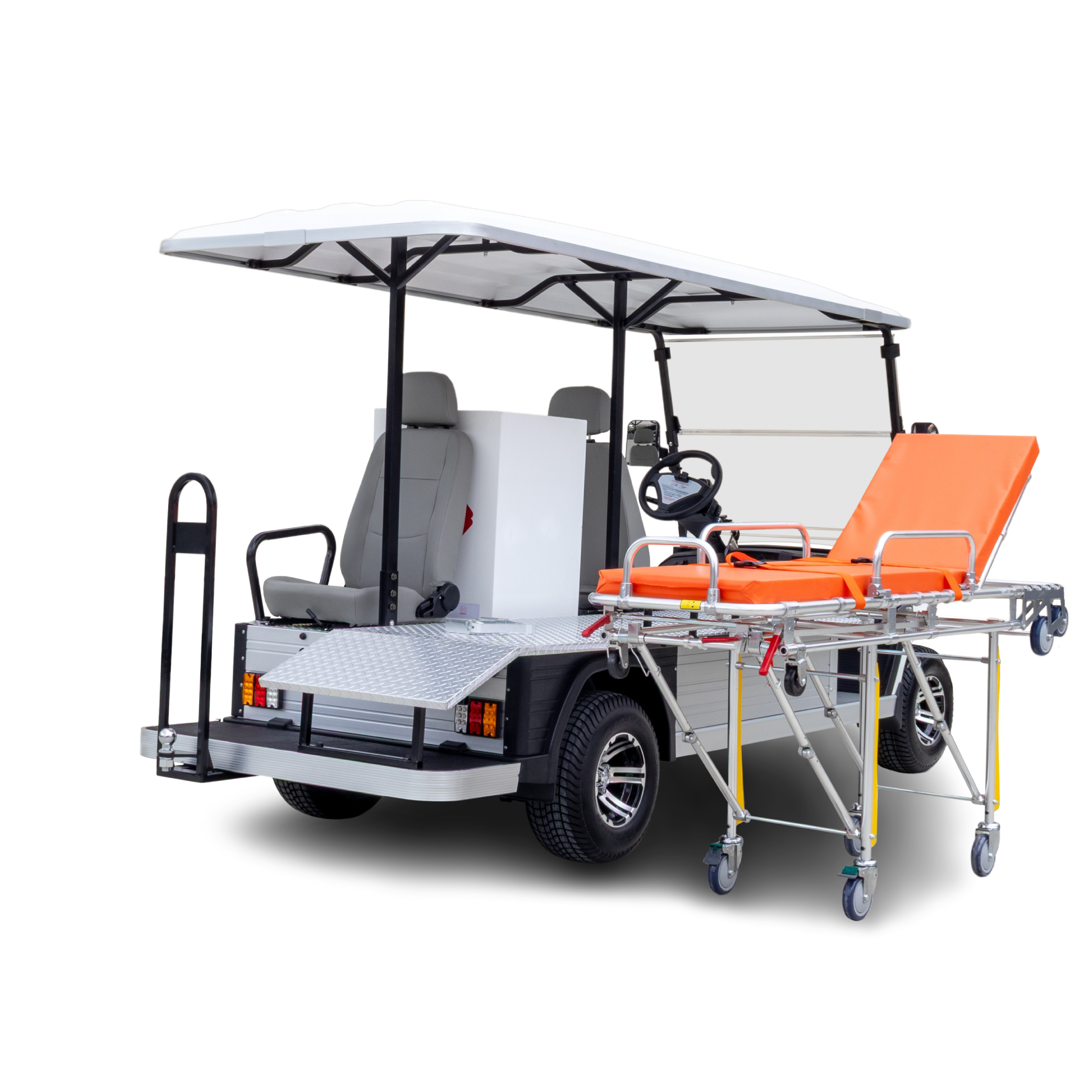

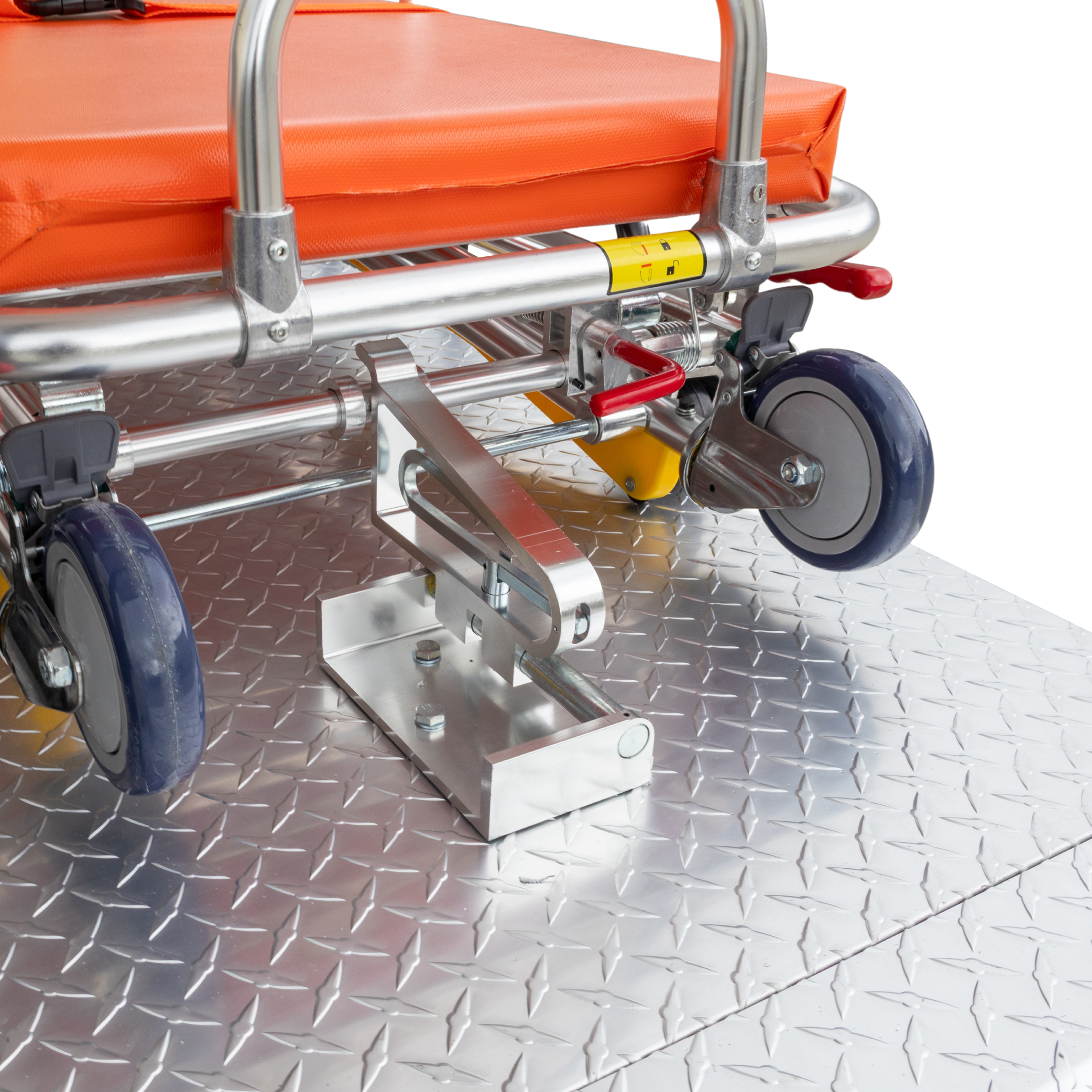

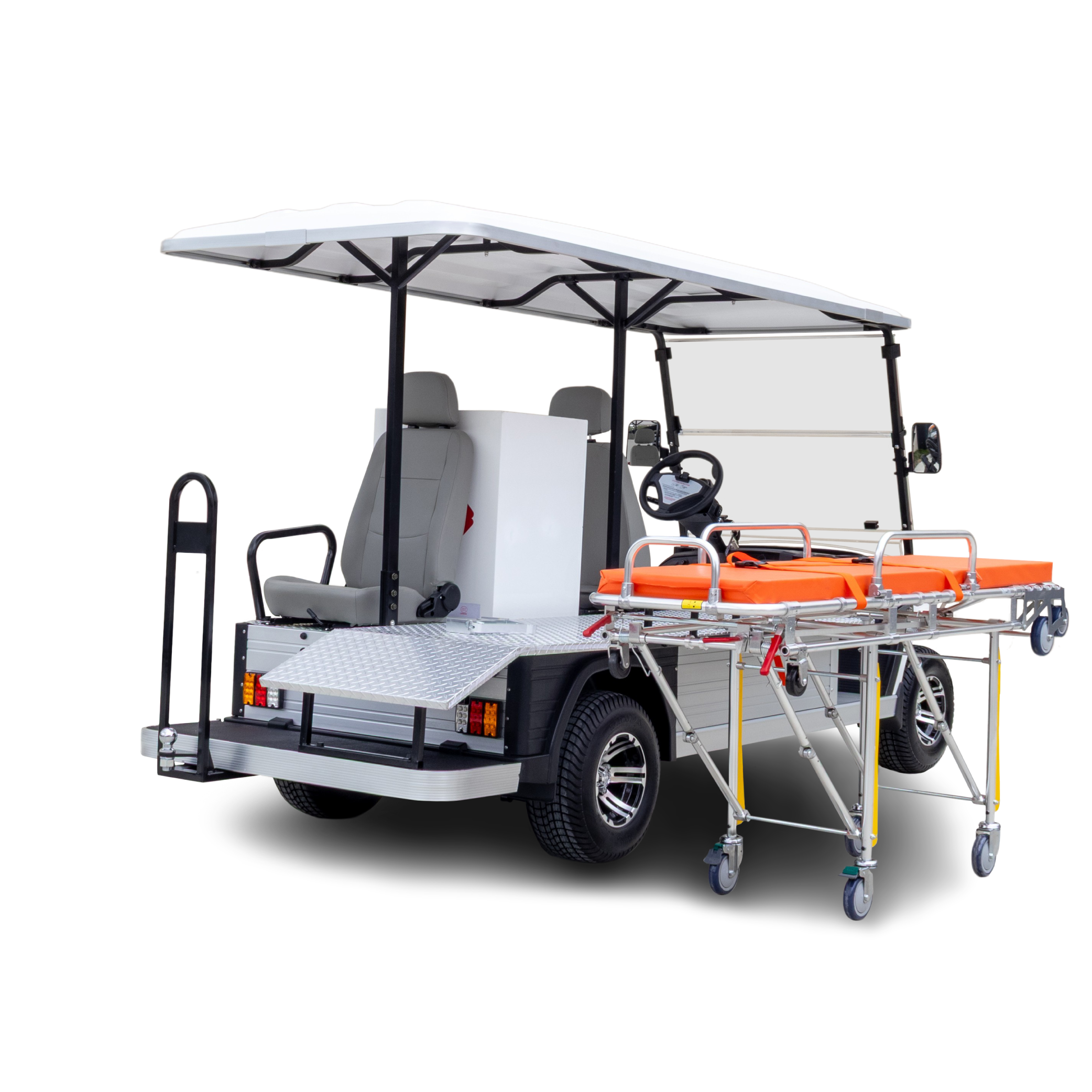

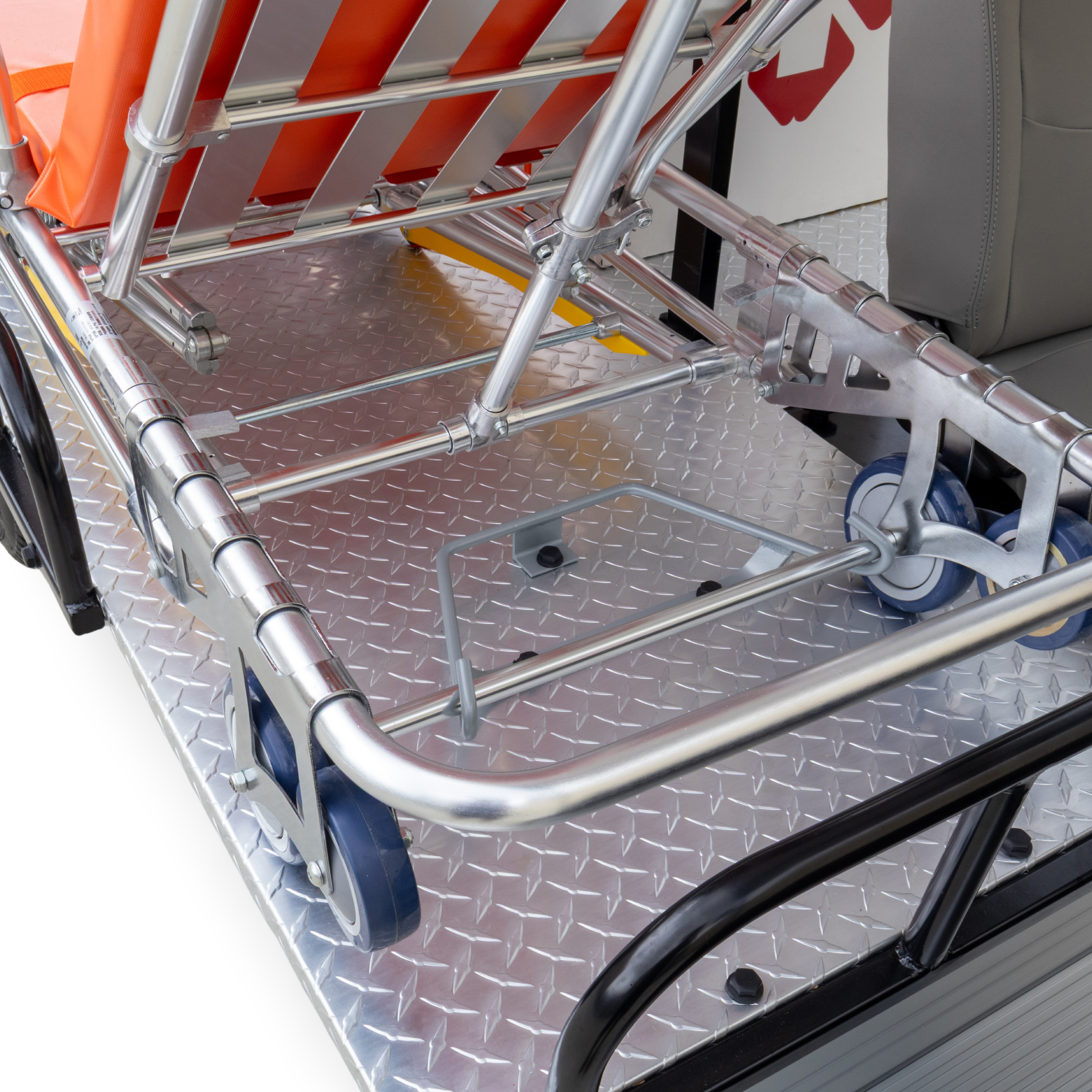

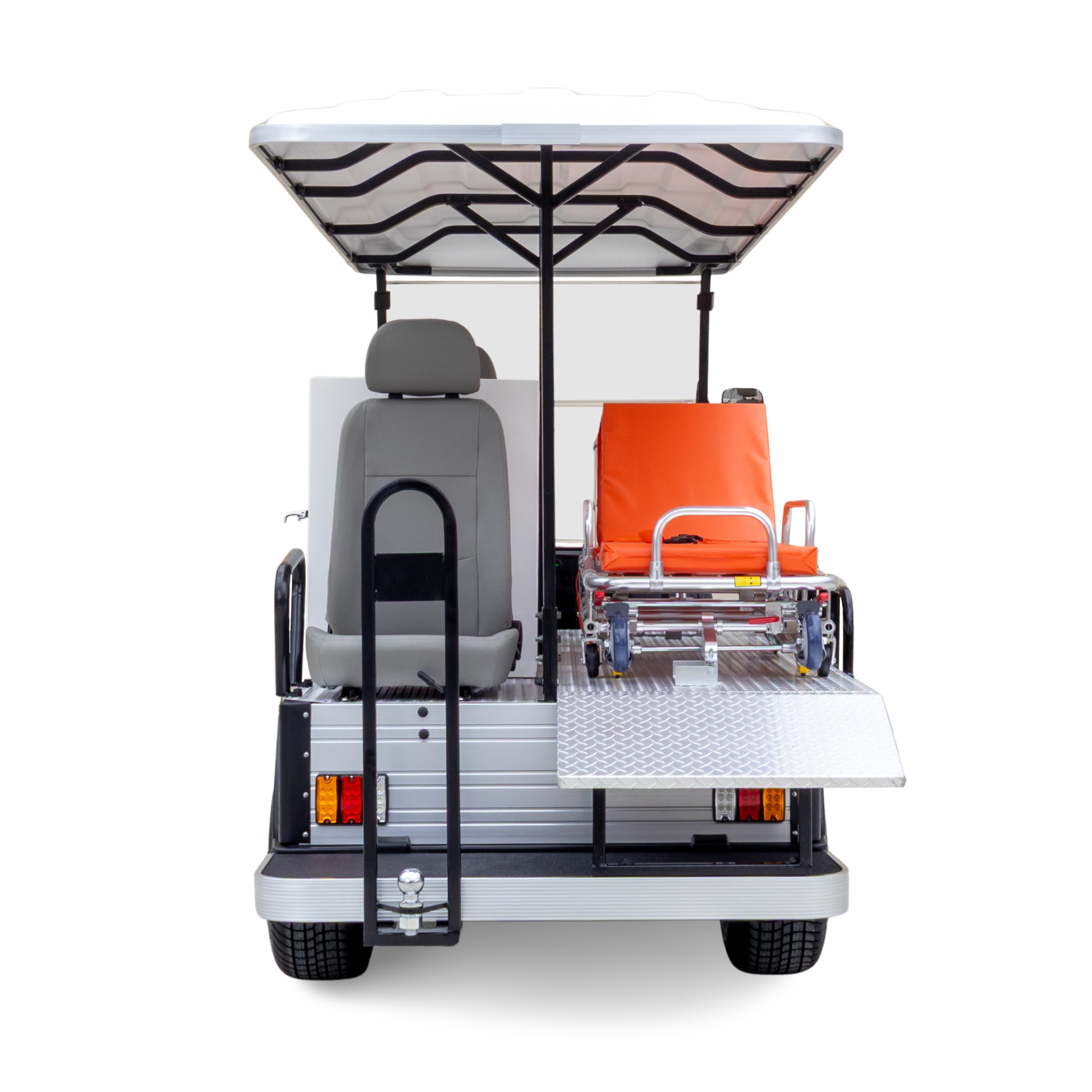

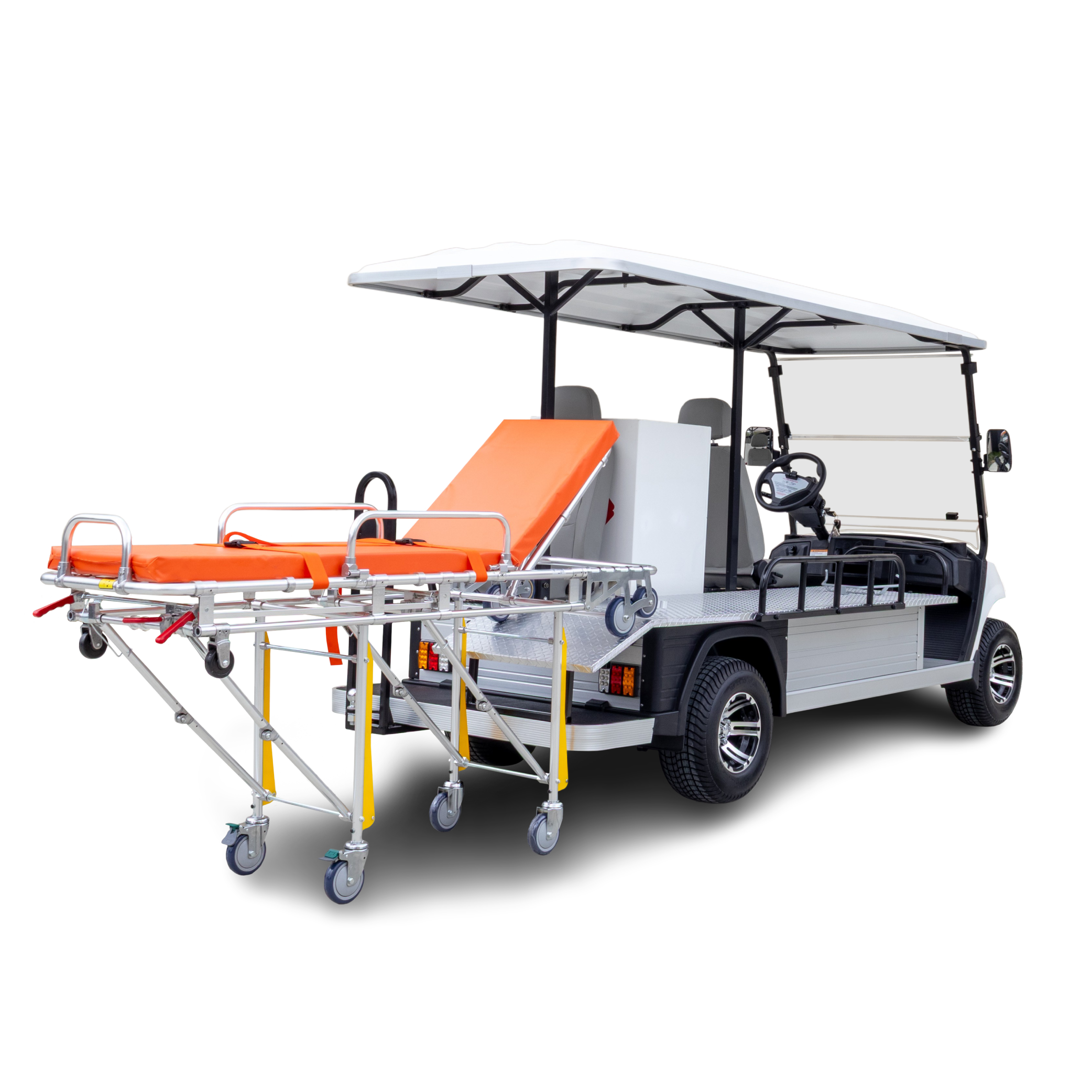

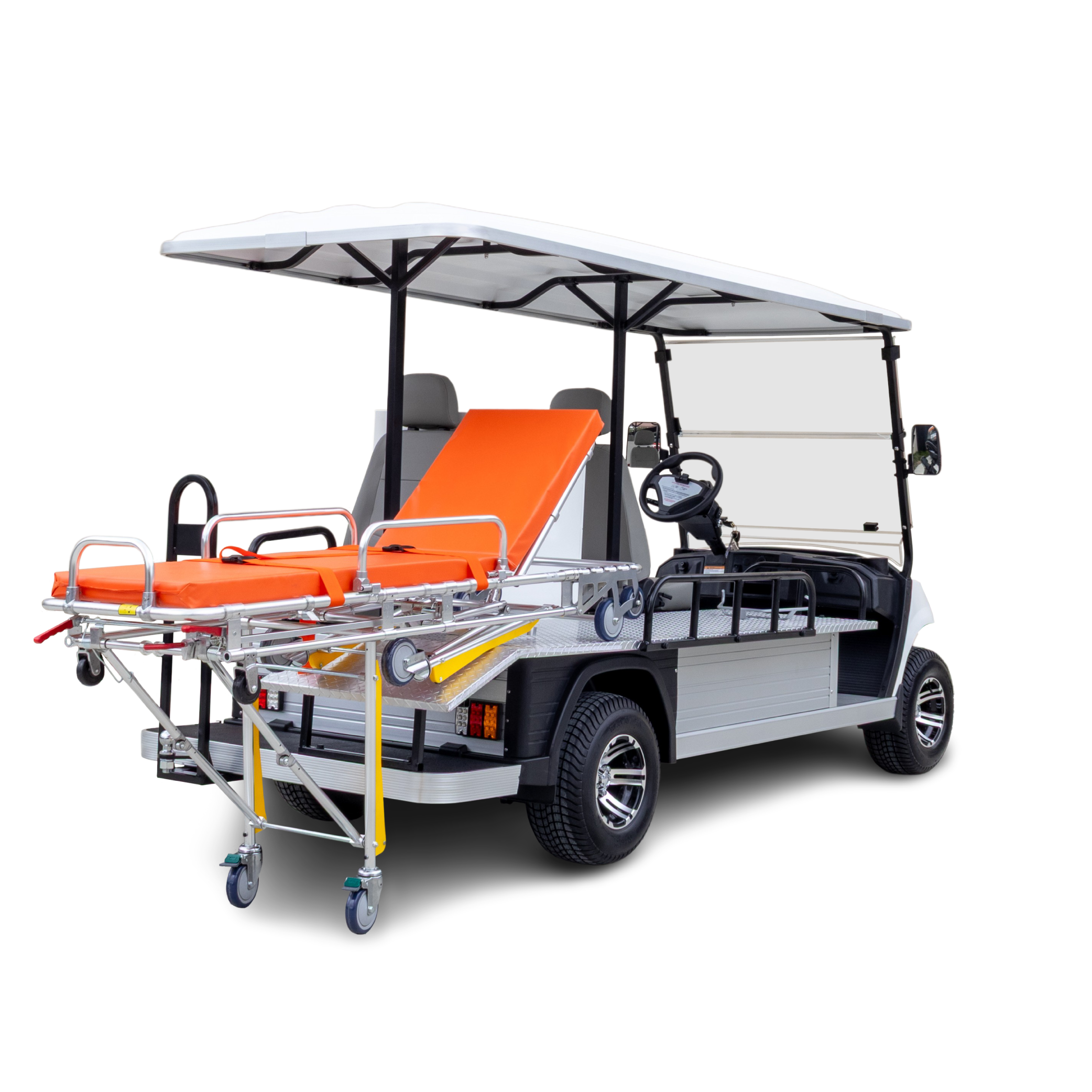

  • Stretcher Bed & Platform: Fit with a collapsible aluminium high-strength frame (up to 159kg capacity) with a high-density upholstered cushion that is water-resistant for easy cleaning. The platform is a checkerplate base with bed locking brackets and fold-down side restraint rail.

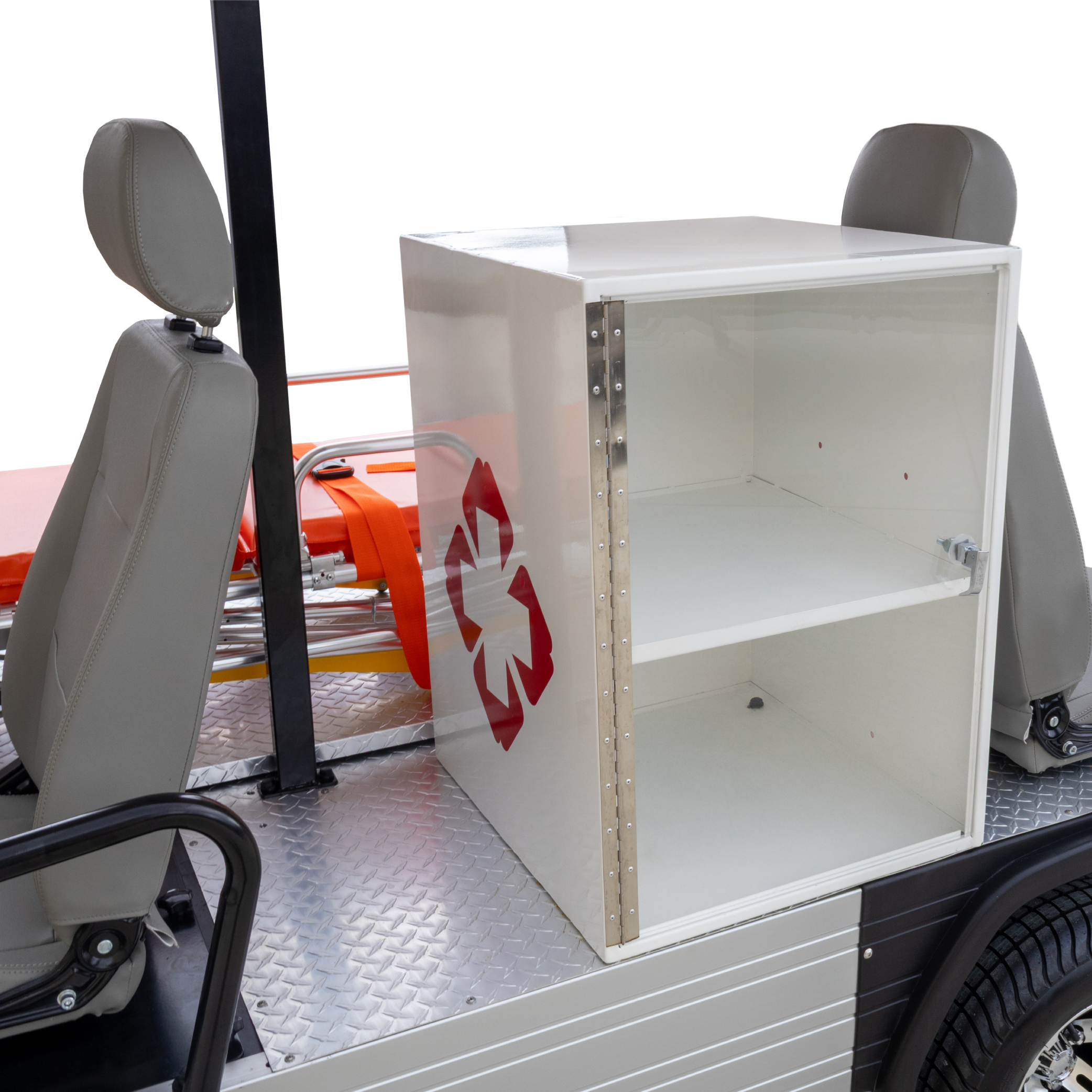

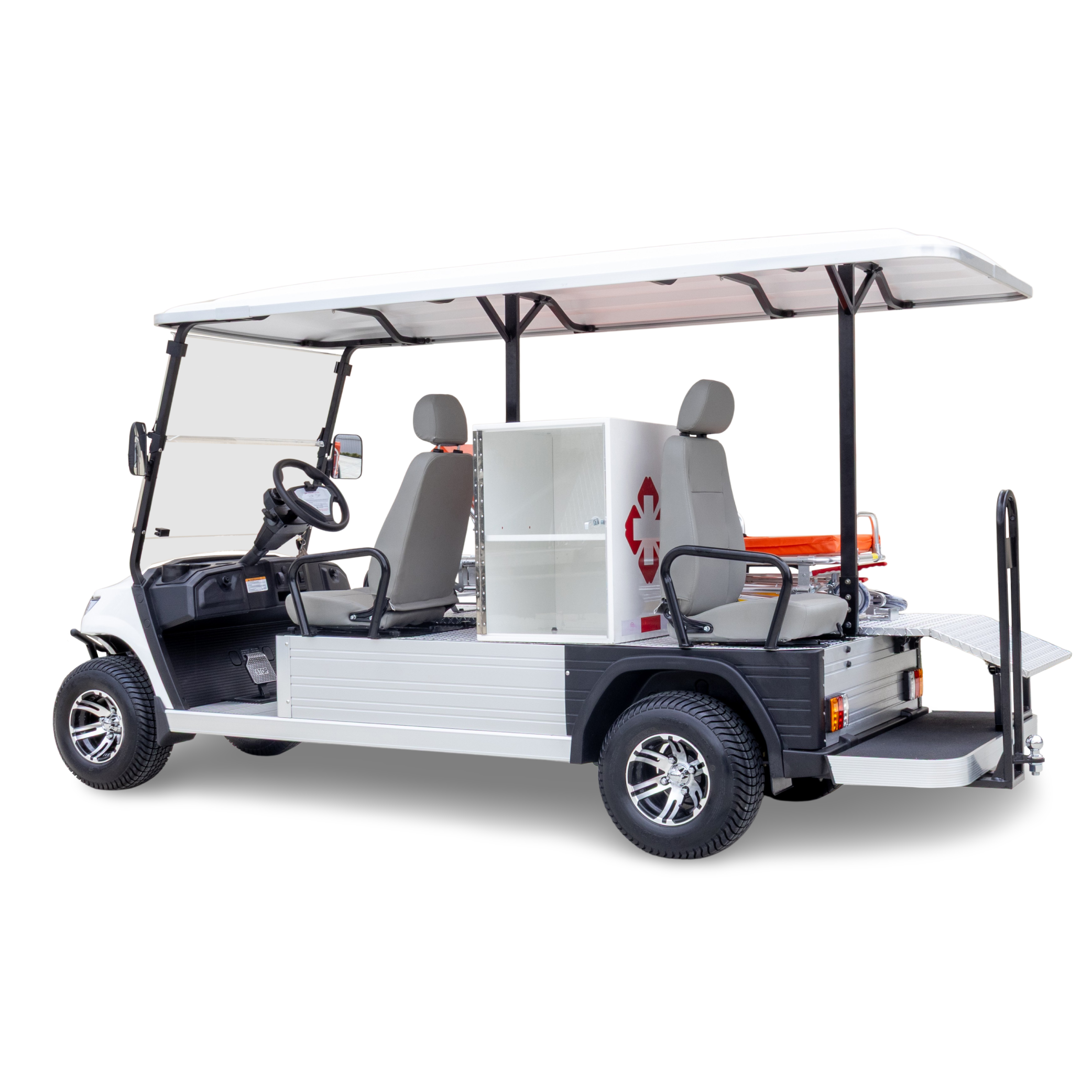

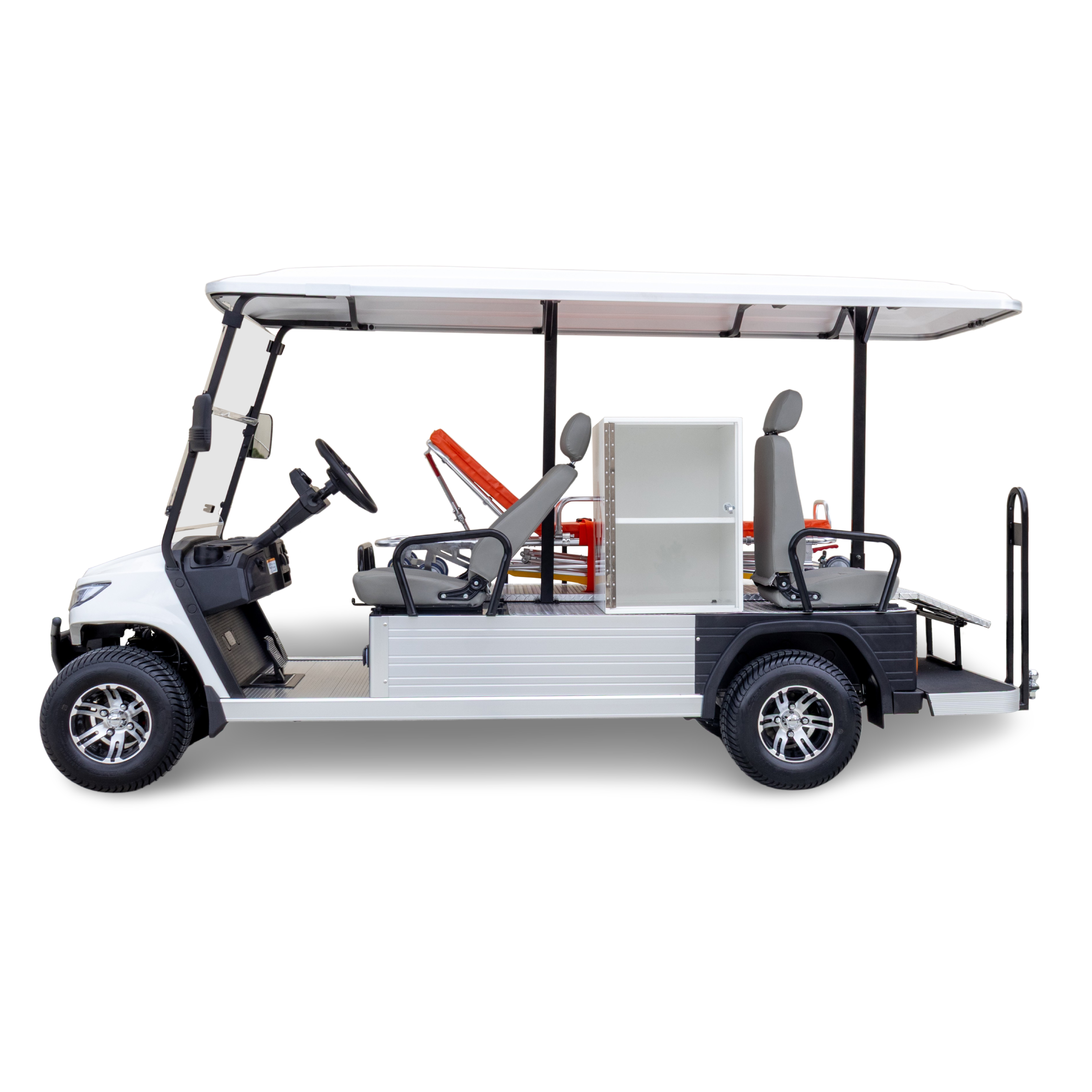

  • Medical Box: Powder-coated Steel with Acrylic lockable Door measuring 700mm (H) x 540mm (W) x 500mm (D).
  • Reliable Performance: Powered by a high-performance motor, this cart delivers consistent handling and reliable operation across various terrains, ensuring a smooth and dependable ride.
  • Durable Construction: Built with high-quality materials, the Magnum MEDIC is designed to withstand daily use, ensuring long-lasting durability and reliability for various tasks.



Colours:
Personalise your ECAR Magnum MEDIC Golf Cart to fit your style. All standard colours are metallic paint finishes with matching painted roof.

  • Metallic Black
  • Metallic Gunmetal Grey
  • Metallic Silver
  • Metallic Burgundy
  • Metallic Forest Green
  • Metallic Navy Blue
  • Metallic Champagne
  • Metallic White



Standard Inclusions:

  • Digital Speedometer, State of Charge Meter, and Odometer
  • ECAR OEM PRO-Li Lithium Battery System (100% Factory fitted and Certified to Australian Standards)
  • On-Board ECAR PRO-Li RCM Approved Lithium Battery Charger
  • Lockable Glove Boxes and a Non-Lockable Centre Console
  • Front and Rear LED Lighting for Day or Night Driving
  • Durable Marine Grade Upholstery Seats
  • Retractable 2-point Lap Seat Belts for all Seats
  • 2x Side Wing Mirrors
  • Foldable/Hinged (new design) Windscreen
  • Poly Colour-matched painted roof (ECAR exclusive)
  • Metallic Paint Finish is standard



Why Choose the ECAR Magnum MEDIC Golf Cart?

The ECAR Magnum MEDIC Golf Cart is best suited for schools, hotels, leisure parks or sporting clubs and event organisers looking for reliable transport for injured people.

The Magnum Series of golf carts is the best-selling ECAR Series released and remains a popular choice amongst those who seek style and comfort in an affordable cart. Now available and fitted with a factory standard ECAR PRO-Li Battery system designed and manufactured by us; this cart will withstand anything you throw at it as it’s built to provide reliable performance for many years to come.

Contact your nearest dealer today for a quote on delivery or send us an enquiry here and we will put you in touch with the most suited dealer to save you time.
