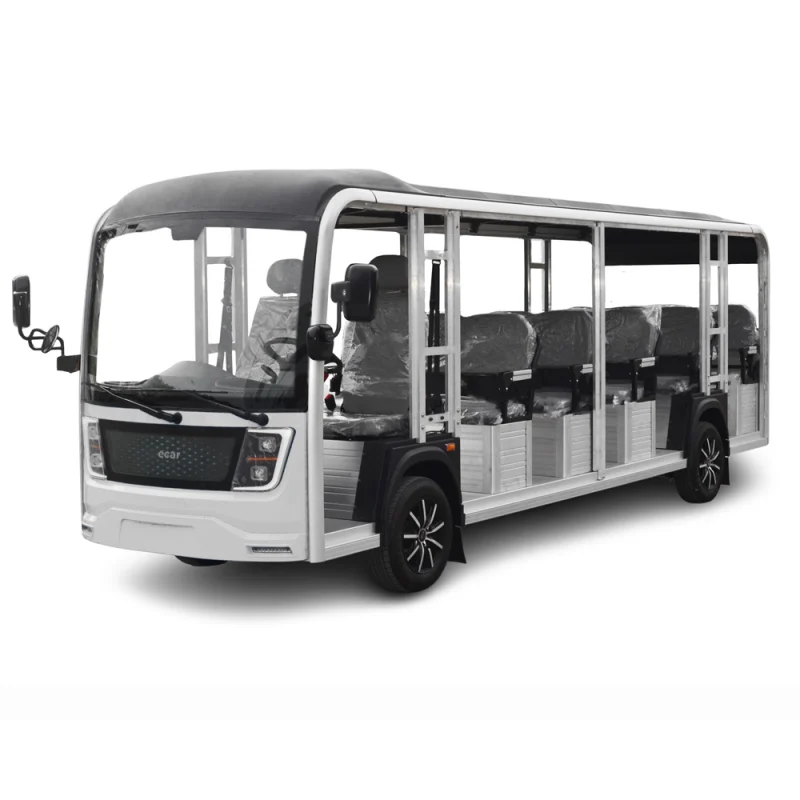

ECAR S17.C (Series 2) 17 Seat Electric Bus

From $36,990.00

Introducing the ECAR S17.C (Series 2) 14 Seat Electric Bus

The ECAR S17.C (Series 2) 17 Seat Electric Bus fits 17 people and is 100% electric. Designed for resorts, theme parks, nature parks, gardens, hotels, airports, and any location requiring a quiet, stylish, and efficient form of bulk passenger transport. This is a the perfect solution for most cost effective maintenance, low-impact transport in large open areas. Australia’s newest electric people mover style cart. New Modern Design featuring all LED Lighting, modern bus styling.

Persons
Battery System
Motor
72V AC Brushless High Torque 7.5kW Motor
Controller
72V/450A ECAR 'APEX' AC Controller
Colours
Length (mm): 5755
Width (mm): 1510
Height (mm): 2040

Wheelbase overall length (center of front hub to center of rear hub): 3455mm

Wheelbase width between (center of tread to center of tread): Front 1320mm, Rear 1330mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 5 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 2 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 17 (1 x Driver, 16 x Passengers all facing forwards)

Tare Weight – No Batteries (kgs): 988

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 12.5%

Hill Hold Performance (limit): 12.5% Grade

Minimum Ground Clearance (mm): 140mm

Minimum Turning Radius: 7.8m

Rated Braking Distance: <5m

Avg. Energy Consumption per 100km: 12.0-13.5kWh (based on terrain, load and battery state of charge)

Proprietary Controller: ECAR 450A ‘APEX’ Controller by SEVCON, 72V 450A System

Electric Motor: LT AC Synchronous (Induction) 72V/7.5kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 6V-170Ah x 12. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified and OEM Manufactured ECAR PRO-Li Lithium 72V 150Ah System.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): OEM ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 72V/12V Output 400W Output
Dashboard: PP Injection Mold Dash with LCD Touchscreen Infotainment System and Cart Data

Interior Seating: Light Grey Marine Grade Vinyl mid-back with high-back Driver and Front Passenger

Interior Floor: Alloy Corrugated Floor

Rear-View Mirror: 2x Side Mirrors, 1x Internal Rear Vision Mirror

Body: Injection moulded Automotive Painted Modular Front and Rear Body Panels with UV Automotive clear coat

Roof Panel & Frame: Automotive engineering PP material injection mould unpainted and Alloy Roof Frame

Front Shield and Wiper: Safety Automotive laminated Glass – with Electric Wiper

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, LED Indicators, LED Rear Tail Lights, LED Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Electric Power Steering assisted two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Brakes (Front Disc, Rear Drums) with Manual Parking Brake. Including Electric Brake Booster system for fatigue free driving.

Front Suspension System: Lower Control Arm with MacPherson Independent suspension on both front wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style with Anti-sway Bar

Rear Suspension System & Transaxle: Heavy Duty Rear Leaf Spring with Integrated rear Transaxle. Ratio: 16:1 (S-Series Bus)

Wheels & Tyres: 13” Mag Alloy Rims with 165/70R13C Road Tyres
Standard Included Golfers Accessory: 2-point Lap Seat Belts, Touchscreen Infotainment System.

Optional Extras: 11kW Motor Upgrade; Black/Beige Vinyl Seats; Tow Bar

Length (mm): 5755
Width (mm): 1510
Height (mm): 2040

Wheelbase overall length (center of front hub to center of rear hub): 3455mm

Wheelbase width between (center of tread to center of tread): Front 1320mm, Rear 1330mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 5 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 2 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 17 (1 x Driver, 16 x Passengers all facing forwards)

Tare Weight – No Batteries (kgs): 988

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 12.5%

Hill Hold Performance (limit): 12.5% Grade

Minimum Ground Clearance (mm): 140mm

Minimum Turning Radius: 7.8m

Rated Braking Distance: <5m

Avg. Energy Consumption per 100km: 12.0-13.5kWh (based on terrain, load and battery state of charge)

Proprietary Controller: ECAR 450A ‘APEX’ Controller by SEVCON, 72V 450A System

Electric Motor: LT AC Synchronous (Induction) 72V/7.5kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 6V-170Ah x 12. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified and OEM Manufactured ECAR PRO-Li Lithium 72V 150Ah System.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): OEM ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 72V/12V Output 400W Output
Dashboard: PP Injection Mold Dash with LCD Touchscreen Infotainment System and Cart Data

Interior Seating: Light Grey Marine Grade Vinyl mid-back with high-back Driver and Front Passenger

Interior Floor: Alloy Corrugated Floor

Rear-View Mirror: 2x Side Mirrors, 1x Internal Rear Vision Mirror

Body: Injection moulded Automotive Painted Modular Front and Rear Body Panels with UV Automotive clear coat

Roof Panel & Frame: Automotive engineering PP material injection mould unpainted and Alloy Roof Frame

Front Shield and Wiper: Safety Automotive laminated Glass – with Electric Wiper

Lights and Warning Signals: LED High/Low Beam Headlights, LED Daytime Running Lights, LED Indicators, LED Rear Tail Lights, LED Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Electric Power Steering assisted two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Brakes (Front Disc, Rear Drums) with Manual Parking Brake. Including Electric Brake Booster system for fatigue free driving.

Front Suspension System: Lower Control Arm with MacPherson Independent suspension on both front wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style with Anti-sway Bar

Rear Suspension System & Transaxle: Heavy Duty Rear Leaf Spring with Integrated rear Transaxle. Ratio: 16:1 (S-Series Bus)

Wheels & Tyres: 13” Mag Alloy Rims with 165/70R13C Road Tyres
Standard Included Golfers Accessory: 2-point Lap Seat Belts, Touchscreen Infotainment System.

Optional Extras: 11kW Motor Upgrade; Black/Beige Vinyl Seats; Tow Bar

Description

Discover the ECAR S17.C (Series 2) 17 Seat Electric Bus: The ALL NEW Modern Electric People mover cart for transporting more people in comfort

Celebrating 20 years of innovation and excellence, the ECAR S17.C (Series 2) 17 Seat Electric Bus represents innovation in a golf cart style design and classification. Ideal for stadiums, airports, theme parks, public gardens, tourist destinations and much more. This model is the entry level into our people mover electric bus range of carts. A special feature of the S17.C model is the enclosed cabin allows the upgrade of a roof mount cassette A/C system for the comfort of all passengers onboard.

Key Features:

  • Efficient Performance: Equipped with a robust AC powered 7.5kW motor and a premium ECAR 72V 450A controller, the ECAR S17.C (Series 2) 17 Seat Electric Bus ensures smooth acceleration and reliable performance. Equipped with a driver assisted brake booster and electric power steering as standard, this bus is suitable for all day driving with minimal fatigue.
  • Sturdy and Robust: Built to endure, the ECAR S17.C (Series 2) 17 Seat Electric Bus boasts a solid construction that can withstand the elements and the test of time. It’s designed for durability, making it a practical choice for everyday commercial use.
  • Eco-Friendly: With a minimal environmental footprint, this cart model allows you fulfil a business requirement while responsibly managing your ecological impact.
  • Optional A/C: Roof Mount Cassette Style Air Conditioning unit.
  • New Seat Design: A more comfortable mid-back style seating design and a high-back driver and front passenger seat.



Colours:
Personalise your ECAR to fit your style. All standard colours are metallic paint finishes with matching painted roof.

  • Metallic Black
  • Metallic White
  • Metallic Navy Blue
  • Metallic Burgundy
  • Metallic Silver
  • Metallic Forest Green



Standard Inclusions:

  • Full LED Lighting Kit, Indicators & Horn
  • Large internal rear-view mirror
  • Electric Brake Booster Pump System for fatigue free braking
  • On-Board 72V Charger
  • OEM Certified ECAR PRO-Li 72V Battery System
  • 2x Side Mirrors
  • Safety Automotive Glass Windshield with electric wiper
  • 13″ Mag Wheels
  • 2-point lap seat belts
  • Metallic Paint Finish
  • Alloy Roof Frame Construction
  • In-dash LCD Screen Unit (music, AM/FM Tuner, Bluetooth)
  • Electric Power Steering

Optional Extra:

  • 11kW AC Motor Upgrade
  • Tow Bar



Why Choose the ECAR S17.C (Series 2) 17 Seat Electric Bus?

The ECAR S17.C (Series 2) 17 Seat Electric Bus isn’t just a golf cart; it’s an economical solution that guarantees dependable functionality. Whether you’re needing to travel a short or long distance at a facility to better manage private transport, this model lives up to the need.

Now equipped with an OEM ECAR 72V 150Ah PRO-Li Battery system designed and manufactured by us, these models will last you many years of daily service.

Contact your nearest dealer today for a quote on delivery or send us an enquiry here, and we will connect you with the most suitable dealer to save you time.

Additional information

Battery System

Colour

Metallic Black, Metallic Gunmetal Grey, Metallic Silver, Metallic Burgundy, Metallic Forest Green, Metallic Navy Blue, Metallic Champagne, Metallic White
