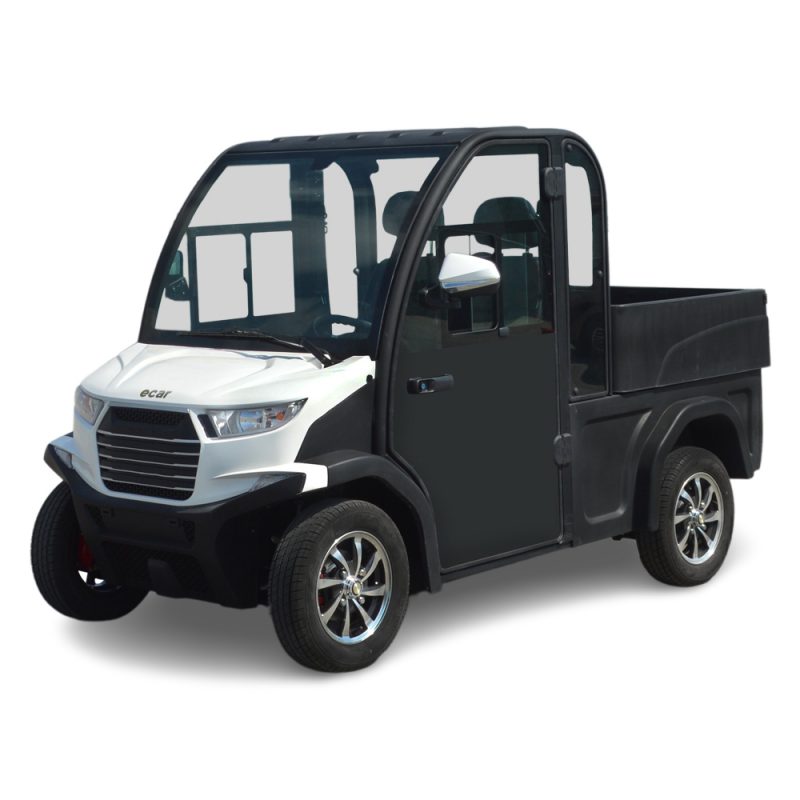

ECAR S2.DBH 2 Seat Utility Cart

From $20,990.00

The ECAR S2.DBH 2 Seat Electric Utility Cart is a fully enclosed 60V cart designed for both comfort and utility. With a 3-speed air conditioning and heating system, tempered safety auto glass windows and half safety glass doors, along with a rear cargo box, this vehicle is perfect for year-round use in all weather conditions.

Ideal for those seeking a versatile, safe, and reliable electric cart for utility tasks and transport.

Persons
Battery System
Motor
40V AC Brushless High Torque 5kW Motor (voltage converted in the controller)
Controller
72V/450A ECAR AC Controller (Programmed for 60V models)
Colours
SKU LT-S2.DBH Categories , Tags , ,
Length (mm): 2670
Width (mm): 1310
Height (mm): 1635

Wheelbase overall length (center of front hub to center of rear hub): 1830mm

Wheelbase width between (center of tread to center of tread): Front 1080mm, Rear 1120mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 5 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 2 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 2 (1 x Driver, 1 x Passengers)

Tare Weight – No Batteries (kgs): 525

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 25%

Hill Hold Performance (limit): 20% Grade

Minimum Ground Clearance (mm): 135mm

Minimum Turning Radius: 4.6m

Rated Braking Distance: <6m

Avg. Energy Consumption per 100km: 8.5-9.0kWh (based on terrain, load and battery state of charge)
Proprietary Controller: ECAR 450A Controller by SEVCON, 72V 450A System (programmed to produce a 60V system)

Electric Motor: LT AC Synchronous (Induction) 48V/5kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified and OEM Manufactured ECAR PRO-Li Lithium Xtra 60V 150Ah System.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): OEM ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 60V/12V Output 400W Output

Air Conditioning System: Scroll Type Compressor 60V Air Conditioning System. 3 Speed Fan, 60V 800W of Cooling and Heating Power
Dashboard: Injection Mold PP Dash Panel with Air Conditioning System Controls, AM/FM Tuner Headunit with Bluetooth capability

Interior Seating: High Back Vinyl Seats, Front 2 seats are adjustable angle and position.

Interior Floor: Rubber Floor panels with Diamond Stitch Vinyl Floor Mats

Rear-View Mirror: 2x Side Mirrors, 1 x Interior Mirror
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clear coat

Roof Body Panel: Automotive engineering PP material injection mould with Aluminium Powder coated Frame

Rear Cargo:PP High Impact Resistance Injection Mold with folding Tailgate. 980(L) x 1170(W) x 300mm(H) external dimensions Front Shield and Wiper: Safety Automotive Glass Windshield – with electric window wiper and washer

Lights and Warning Signals: High/Low Beam LED Headlights, Daytime Running Lights, Indicators, LED Rear Tail Lights, Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes (front disc, rear drum) with Automatic Electromagnetic Parking Brake.

Front Suspension System: Dual Swing Arm with MacPherson Independent suspension on both front wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Heavy Duty Leaf Spring + cylinder hydraulic shock absorbers with Integrated rear Transaxle. Ratio: 12.49:1 (S2.DB)

Wheels & Tyres: 12” Mag Alloy Rims with 145/70R12 Road Tyres (505mm Diameter)
Standard Included Accessory: Diamond Stitch floor mat, Mag Wheels
Optional Extras: Tow Bar; Roof Rack
Length (mm): 2670
Width (mm): 1310
Height (mm): 1635

Wheelbase overall length (center of front hub to center of rear hub): 1830mm

Wheelbase width between (center of tread to center of tread): Front 1080mm, Rear 1120mm

Comprehensive Coverage for both Personal & Commercial Use:
PERSONAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 5 years on Chassis
– 3 years on Electrical & Mechanical

COMMERCIAL USE
– 5 years unlimited kilometre warranty on our PRO-Li Lithium Battery
– 3 years on Lithium Battery Charger
– 2 years on Chassis
– 2 years on Electrical & Mechanical

Lifetime Support:
Free technical support throughout for the life of the golf cart.

Peace of Mind:
Quick and efficient warranty service to ensure your cart stays in top condition. All parts stocked in Queensland, Australia or by your local dealer.

Rated Number of Passengers: 2 (1 x Driver, 1 x Passengers)

Tare Weight – No Batteries (kgs): 525

Max. Recommended Driving Speed: 25 km/hr (programmable 15-40km/hr). Legal Speed Limit 20km/hr

Avg. Driving Distance per Charge: 70-120 km (Battery Amp hour dependant) on flat ground per charge from 100% SOC)

Maximum Recommended Grade: 25%

Hill Hold Performance (limit): 20% Grade

Minimum Ground Clearance (mm): 135mm

Minimum Turning Radius: 4.6m

Rated Braking Distance: <6m

Avg. Energy Consumption per 100km: 8.5-9.0kWh (based on terrain, load and battery state of charge)
Proprietary Controller: ECAR 450A Controller by SEVCON, 72V 450A System (programmed to produce a 60V system)

Electric Motor: LT AC Synchronous (Induction) 48V/5kW (High Torque, Brushless)

Batteries (SE Asia, UAE Models): ECAR No Maintenance Gel, 8V-150Ah x 6. (Certified & Manufacturer Approved ECAR PRO-Li Lithium options available)

Batteries (Australia/NZ Models): Certified and OEM Manufactured ECAR PRO-Li Lithium Xtra 60V 150Ah System.

Charger (SE Asia, UAE Models): On board Intelligent Delta Q 48V DC Output Charger. 6-8hr Charge time from SOC >15%

Charger (Australia/NZ Models): OEM ECAR PRO-Li On board Intelligent Lithium Battery Charger. RCM Approved & Compliant for use with only ECAR PRO-Li Batteries.

DC-DC Convertor: Isolated DC-DC Convertor 60V/12V Output 400W Output

Air Conditioning System: Scroll Type Compressor 60V Air Conditioning System. 3 Speed Fan, 60V 800W of Cooling and Heating Power
Dashboard: Injection Mold PP Dash Panel with Air Conditioning System Controls, AM/FM Tuner Headunit with Bluetooth capability

Interior Seating: High Back Vinyl Seats, Front 2 seats are adjustable angle and position.

Interior Floor: Rubber Floor panels with Diamond Stitch Vinyl Floor Mats

Rear-View Mirror: 2x Side Mirrors, 1 x Interior Mirror
Body: Injection moulded Automotive Painted Modular Body Panels with UV resistant clear coat

Roof Body Panel: Automotive engineering PP material injection mould with Aluminium Powder coated Frame

Rear Cargo:PP High Impact Resistance Injection Mold with folding Tailgate. 980(L) x 1170(W) x 300mm(H) external dimensions Front Shield and Wiper: Safety Automotive Glass Windshield – with electric window wiper and washer

Lights and Warning Signals: High/Low Beam LED Headlights, Daytime Running Lights, Indicators, LED Rear Tail Lights, Brake & Hazard Lights, Horn & Reversing Buzzer

Additional Lighting Accessories: Consult an authorised dealer for 12V Lighting Accessories
Steering System: Two-way rack & pinion steering system, automatic gap compensation function for direct & accurate control.

Braking System: 4 Wheel Hydraulic Disc Brakes (front disc, rear drum) with Automatic Electromagnetic Parking Brake.

Front Suspension System: Dual Swing Arm with MacPherson Independent suspension on both front wheels; coil spring + cylinder hydraulic shock absorbers. Automotive style

Rear Suspension System & Transaxle: Heavy Duty Leaf Spring + cylinder hydraulic shock absorbers with Integrated rear Transaxle. Ratio: 12.49:1 (S2.DB)

Wheels & Tyres: 12” Mag Alloy Rims with 145/70R12 Road Tyres (505mm Diameter)
Standard Included Accessory: Diamond Stitch floor mat, Mag Wheels
Optional Extras: Tow Bar; Roof Rack

Description

Discover the ECAR S2.DBH 2 Seat Utility Cart – Comfort, Utility, and Performance in One

Introducing the ECAR S2.DBH 2 Seat Electric Utility Cart, a premium enclosed vehicle that offers the perfect combination of comfort, utility, and reliable performance. Designed for year-round use, this cart is equipped with a 3-speed air conditioning and heating system, along with a spacious cargo box for versatile utility tasks.

Key Features:

  • Fully Enclosed Design with Climate Control: The ECAR S2.DBH 2 Seat Electric Utility Cart features an enclosed cabin with a 3-speed air conditioning and heating system, ensuring comfort in any weather, making it ideal for utility work in various conditions.
  • Utility Cart with Rear Cargo Box: Built for functionality, this cart includes a fixed position rear cargo box, making it ideal for transporting tools, equipment, and other essentials in work environments.
  • Enhanced Safety with Tempered Glass and Aluminium Base Doors: The cart is equipped with tempered glass windscreens, rear windows, and half tempered glass doors with an aluminium base for increased safety and durability against impacts.

Colours:

Personalise your ECAR S2.DBH 2 Seat Utility Cart to match your style. All standard colours are metallic paint finishes with matching painted roofs.

  • Metallic Black
  • Metallic White
  • Metallic Navy Blue
  • Metallic Burgundy
  • Metallic Silver
  • Metallic Forest Green



Standard Inclusions:

  • 3-Speed Air Conditioning and Heating System
  • Adjustable Tilt and Slide Seats
  • 3-point seat belts
  • Tempered Safety Auto Glass Windscreen and Rear Window
  • Tempered Safety Auto Glass Half Doors with Aluminium Base Panel
  • Full Canopy Enclosed Roof
  • High-impact resistant Rear Cargo Box for Daily Utility Tasks
  • Built-in Speedometer, State of Charge Meter, and Odometer
  • Front and Rear Lighting for Safety
  • Durable Upholstery and Weather-Resistant Features



Why Choose the ECAR S2.DBH 2 Seat Utility Cart?

The ECAR S2.DBH 2 Seat Utility Cart is ideal for those who require a comfortable, climate-controlled, and secure vehicle for all-weather utility tasks and transport. Whether you’re at a large venue, managing a resort, or handling community operations, this cart offers the perfect balance of safety, utility, and performance and is perfect in all weather conditions.

The S.DB Series is a unique enclosed golf cart-type vehicle that combines compact design with premium features, making it ideal for high-end resorts as well as many workplaces. Its enclosed body offers enhanced comfort and protection, allowing for smooth transport in various environments. Built to the highest standards, this vehicle delivers reliable performance and style.

Contact your nearest dealer today for a quote on delivery or send us an enquiry here, and we will connect you with the most suited dealer to save you time

Additional information

Battery System

Colour

Metallic Black, Metallic Gunmetal Grey, Metallic Silver, Metallic Burgundy, Metallic Forest Green, Metallic Navy Blue, Metallic Champagne, Metallic White

Product Weight0.00 kg
Product Dimensions0.00 kg
